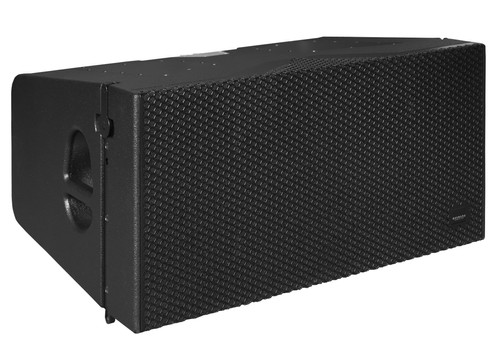

Acoustic Line - Galeo T Three-Way Line Array (2x12"+4x6,5"+2x1,4")

The Galeo T is a high performance line array for large scale sound reinforcement applications which features a number of innovative acoustical and mechanical solutions. Although a three-way system,the Galeo T is driven two-way active, and therefore requires only two amplifier channels.

The two 12“ low-mid drivers are installed in a space saving double bandpass configuration, which allows a cabinet width of only76 cm. The newly developed integrated flying hardware allows the curving angle to be set after the system has been lifted up, thereby simplifying the set-up process.

The maximum splay angle of 12° makes the Galeo T suitable for applications where only a small number of elementscan be used.

Speaker Components

2 x 12“ Nd / 4 x 6,5“ Nd / / 2 x 1,4“ Nd

Description

Three-Way Line Array Unit Power AES

Peak

LF: 1500 W / 4500 W HMF: 600 W / 1800 W

Impedance nominal

LF: 8 Ω

HMF

8 Ω

SPL 1 W / Peak @ 1 m

LF: 100 dB / 137 dB HMF: 103 dB / 136 dB

Usable Range

- 6 dB 70 Hz - 18 kHz

Tuning Frequency excursion minimum

80 Hz X-Overpoint acoustical LF/MF: Depends on preset MF/HF: 1 kHz

Coverage

horizontal x vertical 100° x 12° (100°-version) 70° x 12° (70°-version)

Max. Splay Angle

12°

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- LowMid

Handles

4 x Rigging

Fittings

Integrated flying hardware

Weight

49,0 kg

Size height x width x depth

38,0 x 76,0 x 52,0 cm
