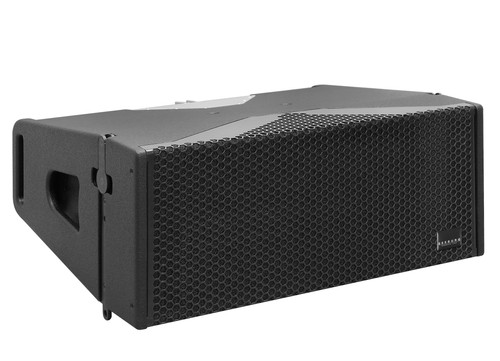

Acoustic Line - Galeo C Two-Way Line Array 2x8"+1,4"

A compact and versatile high performance Line Array featuring various innovative acoustical and mechanical solutions. This 2 x 8” / 1.4” system is driven two-way active. The Galeo C is a visually unobtrusive sound reinforcement system equally suited to high end permanent installations and demanding tour applications. A choice of horizontal coverage angles of 70° or 100° is provided by the interchangeable AMR horn elements.

The maximum splay angle of 14° allows a high degree of curvature in the line array with a small number of cabinets. The innovative integrated flying hardware allows the curving angle to be set after the system has been lifted up, thereby simplifying the set-up process.

Speaker Components

2 x 8“ Nd (2,5“ VC) / 1,4“ Nd (3“ VC)

Description

Two-Way Line Array Unit Power AES

Peak

LF: 600 W / 1800 W HF: 110 W / 330 W

Impedance nominal

LF: 16 Ω

HF

16 Ω

SPL 1 W / Peak @ 1 m

LF: 98 dB / 131 dB HF: 111 dB / 136 dB

Usable Range

80 Hz - 20 kHz (- 6 dB)

Tuning Frequency excursion minimum

85 Hz X-Overpoint acoustical Depends on preset

Coverage

horizontal x vertical 100° x 14° (100°-version) 70° x 14° (70°-version)

Max. Splay Angle

14°

Connectors

2 x Neutrik Speakon NL4 in/out Coding: 1 +/- HF, 2 +/- LF

Handles

4 x Rigging

Fittings

6 x M10 Integrated flying hardware

Weight

22 kg

Size height x width x depth

24,0 x 58,0 x 46,0 cm
