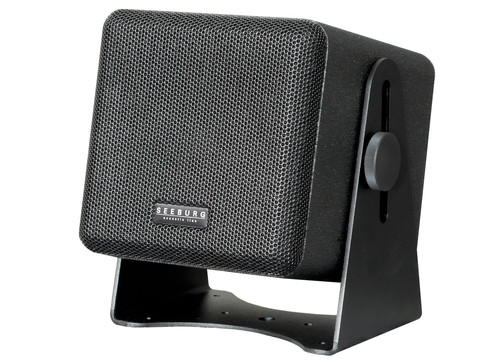

Acoustic Line - i5 Loudspeaker 5"

Ultra compact loudspeaker system for applications requiring good acoustic and power handling characteristcs in a particulary unobtrusive package. The powerful 5" Neodym coaxial driver provides very wide but precise coverage, distortion free up to levels of over 115 dB.

Multiple flying points and connection possibilities make the i5 system a universal sound reinforcement tool suitable for a wide range of near field applications.

SPECIFICATIONS

Speaker Components

5“ Nd (1,5“ VC) / 0,75“ coaxial

Description

Multi Media Sound System Power AES

Peak

120 W / 360 W

Impedance nominal

16 Ω

SPL 1 W / Peak @ 1 m

93 dB / 115 dB

Usable Range

- 6 dB 110 Hz - 19 kHz

Tuning Frequency excursion minimum

120 Hz X-Overpoint acoustical 3,0 kHz

Coverage horizontal / vertical

100° - conical

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru 1 x Phoenix

Handles

- - - Rigging

Fittings

3 x M10

Weight

2,5 kg

Size height x width x depth

15,0 x 15,0 x 17,6 cm
