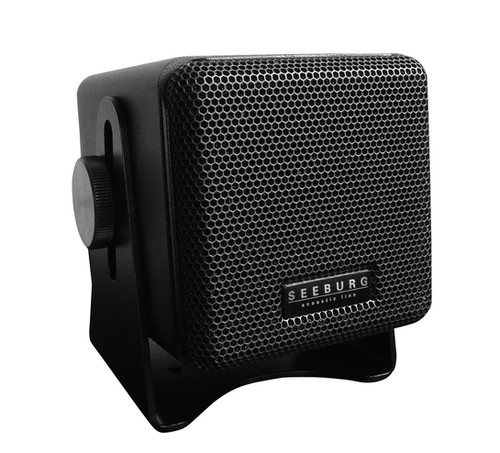

Acoustic Line - i4 Loudspeaker 4"

Miniature loudspeaker for applications which require a good sounding system with a low profile. The powerful 4“ wide-range cone driver is capable of distortion free operation up to 113 dB SPL (1W/Peak@1m). Flexible mounting options and the standard flying bracket make the i4 system a universal tool for nearfield applications.

SPECIFICATIONS

Speaker Components

4“ wideband

Description

Multi Media Sound System Power AES

Peak

100 W / 300 W

Impedance nominal

16 Ω

SPL 1 W / Peak @ 1 m

91 dB / 113 dB

Usable Range

- 6 dB 150 Hz - 16 kHz

Coverage horizontal / vertical

80° x 80° - conical

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru 1 x Phoenix

Handles

- - - Rigging

Fittings

3 x M10 / 1 x M6

Weight

1,6 kg

Size height x width x depth

10,3 x 10,3 x 11,6 cm
