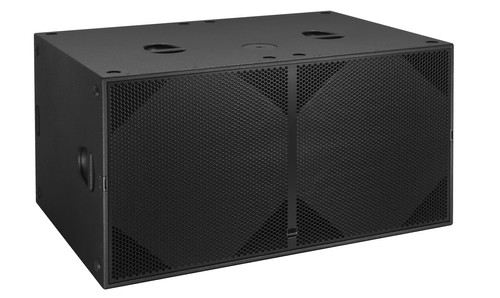

Acoustic Line - G Sub 1802dp Active Bass Extension 2x18"

The G Sub 1802 dp is a universal 2 x 18” high- power subwoofer with truck-load compatible outside dimensions. The 116 x 78 cm footprint makes set-up with a loudspeaker pole mounted on the sub possible with even quite large mid-high systems. Mechanical and acoustic compatibility with the G Sub 1801 and Galeo C Sub allow a wide and versatile range of combination possibilities.

This subwoofer combines very good handling with exceptional acoustic precision and depth of frequency.

An active dp (digitally powered) version is also available, allowing operation independant of a seperate amplifier and controller.

SPECIFICATIONS

G Sub 1802 dp

Speaker Components

2 x 18“ Nd (4,5“ VC)

Description

Digitally Powered Bass Extension Power AES

Peak

- - - Amp Power 2500 W AES / 100-230 V

Impedance nominal

- - -

Rated Current

4,0 A @ 230 V

SPL 1 W / Peak @ 1 m

- - - SPL Peak @ 1 m 144 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0.8 ms (analog in to analog out)

Usable Range

30 Hz - 200 Hz (-6 dB)

Tuning Frequency excursion minimum

36 Hz

Connectors

Neutrik XLR in/out Neutrik PowerCon in/out Neutrik Speakon NL4MP out

Handles

8 x Rigging

Fittings

M20 on top and side Wheelboard fittings

Weight

82 kg (+ 12,5 kg wheelboard)

Size height x width x depth

58,0 x 116,0 x 78,0 cm
