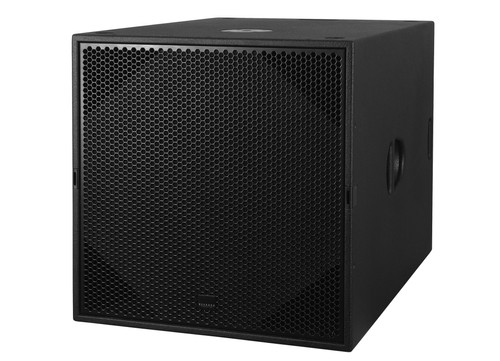

Acoustic Line - G Sub 1801dp Active Bass Extension 18"

The G Sub 1801 is a universal 18” high-power subwoofer with truck-load compatible outside dimensions. The 58 x 75 cm footprint makes set-up with a loudspeaker pole mounted on the sub possible with even quite large mid-high systems. Mechanical and acoustic compatibility with the G Sub 1802 and Galeo C Sub allow a wide and versatile range of combination possibilities.

This subwoofer combines very good handling with exceptional acoustic precision and depth of frequency.

An active dp (digitally powered) version is also available, allowing operation independant of a seperate amplifier and controller.

SPECIFICATIONS

G Sub 1801 dp

Speaker Components

18“ Nd (4,5“ VC)

Description

Digitally Powered Bass Extension Power AES

Peak

- - - Amp Power 1500 W AES (single Mode) / 100-230 V 2500 W AES (dual Mode) / 100-230 V

Impedance nominal

- - -

Rated Current

4,0 A @ 230 V

SPL 1 W / Peak @ 1 m

- - - SPL Peak @ 1 m 138 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

- 6 dB 30 Hz - 200 Hz (-6 dB)

Tuning Frequency excursion minimum

36 Hz

Connectors

Neutrik XLR in/out Neutrik PowerCon in/out Neutrik Speakon NL4MP out

Handles

6 x Rigging

Fittings

M20 on top Wheelboard fittings

Weight

46 kg (+ 8 kg wheelboard)

Size height x width x depth

58,0 x 58,0 x 78,0 cm
