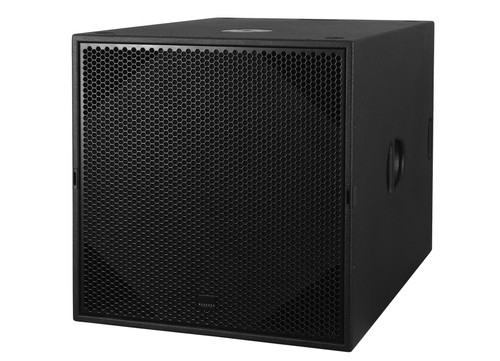

Acoustic Line - G Sub 1801 Passive Bass Extension 18"

The G Sub 1801 is a universal 18” high-power subwoofer with truck-load compatible outside dimensions. The 58 x 75 cm footprint makes set-up with a loudspeaker pole mounted on the sub possible with even quite large mid-high systems. Mechanical and acoustic compatibility with the G Sub 1802 and Galeo C Sub allow a wide and versatile range of combination possibilities.

This subwoofer combines very good handling with exceptional acoustic precision and depth of frequency.

An active dp (digitally powered) version is also available, allowing operation independant of a seperate amplifier and controller.

SPECIFICATIONS

G Sub 1801

Speaker Components

18“ Nd (4,5" VC)

Description

Passive Bass Extension Power AES

Peak

1500 W / 4500 W Amp Power - - -

Impedance nominal

8 Ω

Rated Current

- - -

SPL 1 W / Peak @ 1 m

101 dB - 138 dB SPL Peak @ 1 m - - -

Max. Input Signal

- - -

DSP

- - -

AD

DA: - - -

Latency

- - -

Usable Range

- 6 dB 30 Hz - 200 Hz (-6 dB)

Tuning Frequency excursion minimum

36 Hz

Connectors

3 x Neutrik Speakon NL4 in/out Coding (2x): 1+/- loop thru, 2+/- Sub Coding (1x): 1+/- Sub, 2+/- loop thru

Handles

6 x Rigging

Fittings

M20 on top Wheelboard fittings

Weight

45 kg (+ 8 kg wheelboard)

Size height x width x depth

58,0 x 58,0 x 78,0 cm
