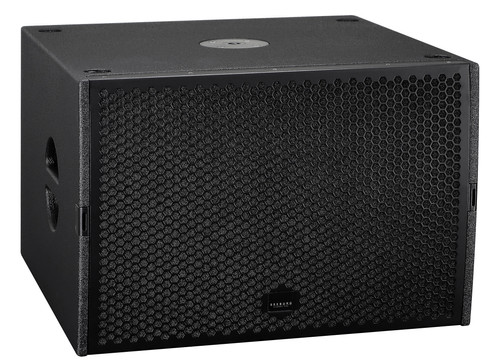

Acoustic Line - G Sub 1501dp++ Active Bass Extension 15"

The G Sub 1501 is a particularly low profile high performance subwoofer. With a 60 x 60 cm footprint, the G Sub 1501 provides a stable base for larger High Mid systems on a speaker pole. The low 40 cm height makes the G Sub 1501 easy to integrate into existing stage constructions.

Excellent deep bass reproduction and exclusive, modern design in an easy to handle package make the G Sub 1501 a perfect choice for demanding applications.

For operation without separate amplifiers and controllers, active dp (digitally powered) versions are also available.

SPECIFICATIONS

G Sub 1501 dp ++

Speaker Components

15“ Nd (4“ VC)

Description

Digitally Powered Bass Extension Amp Power 1500 W AES (single mode) / 110-230 V 2400 W AES (dual mode) / 110-230 V 2 x 800 W AES / 4 Ω - HiMi

Rated Current

4,0 A @ 230 V SPL Peak @ 1 m 135 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

35 Hz - 180 Hz (-6 dB)

Tuning Frequency excursion minimum

42 Hz

Connectors

2 x Neutrik XLR in Neutrik PowerCon in 2 x Neutrik Speakon NL4MP out

Handles

2 x Rigging

Fittings

M20 on top Wheelboard fittings

Weight

29 kg (+ 6,0 kg wheelboard)
