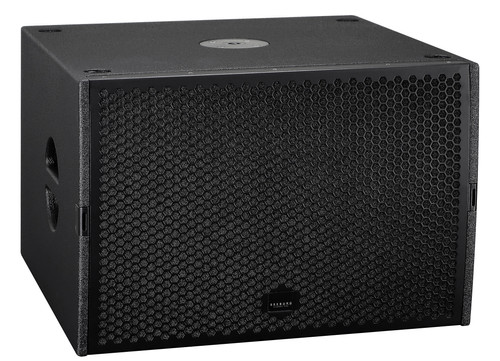

Acoustic Line - G Sub 1501 Passive Bass Extension 15"

The G Sub 1501 is a particularly low profile high performance subwoofer. With a 60 x 60 cm footprint, the G Sub 1501 provides a stable base for larger High Mid systems on a speaker pole. The low 40 cm height makes the G Sub 1501 easy to integrate into existing stage constructions.

Excellent deep bass reproduction and exclusive, modern design in an easy to handle package make the G Sub 1501 a perfect choice for demanding applications.

For operation without separate amplifiers and controllers, active dp (digitally powered) versions are also available.

SPECIFICATIONS

G Sub 1501

Speaker Components

15“ Nd

Description

Passive Bass Extension Power AES

Peak

1000 W / 3000 W

Impedance nominal

8 Ω

SPL 1 W / Peak @ 1 m

100 dB / 135 dB

Usable Range

35 Hz - 220 Hz (- 6 dB) Tuning Frequency Excursion minimum 42 Hz

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- loop thru, 2 +/- Sub Incl. switcher for active / passive operation

Handles

2 x Rigging

Fittings

M20 on top Wheelboard fittings

Weight

26,0 kg (+ 6,0 kg wheelboard)

Size height x width x depth

40,0 x 60,0 x 60,0 cm
