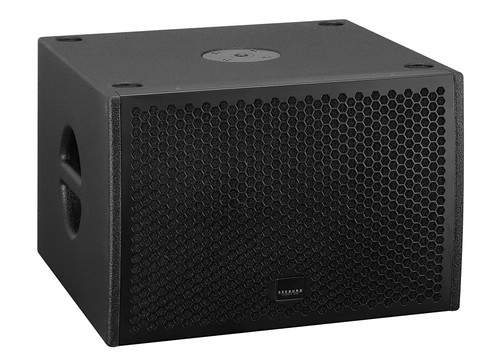

Acoustic Line - G Sub 1201dp+ Active Bass Extension 12"

The G Sub 1201 is a universal high power 12” Subwoofer. The 48,5 x 48,5 cm footprint allows for a fast and stable set up with smaller High-Mid systems on a speaker pole, whilst the height of just 33 cm makes integration into existing stage constructions a simple matter. The G Sub 1201 combines full and deep bass reproduction and exclusive, modern design in a compact, easy to handle package.

For operation without separate amplifiers and controllers, active dp (digitally powered) versions are also available.

SPECIFICATIONS

G Sub 1201 dp+

Speaker Components

12“ Nd

Description

Digitally Powered Bass Extension Amp Power 500 W AES (single Mode) / 110-230 V 800 W AES (dual Mode) / 110-230 V 800 W AES / 4 Ω - HiMid/Sub

Rated Current

2,0 A @ 230 V SPL Peak @ 1 m 131 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

38 Hz - 220 Hz (-6 dB)

Tuning Frequency excursion minimum

47 Hz

Connectors

Neutrik XLR in/out Neutrik PowerCon in/out 2 x Neutrik Speakon NL4MP out

Handles

2 x Rigging

Fittings

M20 on top

Weight

18 kg

Size height x width x depth

33,0 x 48,5 x 48,5 cm
