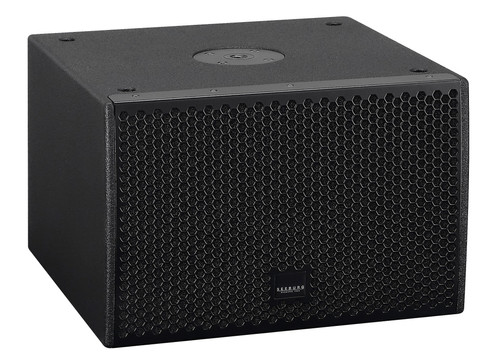

Acoustic Line - G Sub 1001dp+ Active Bass Extension 10"

The G Sub 1001 is a compact, high powered 10" subwoofer with a particularly low-profile form. The modern design and high power-handling capabilities make the G Sub 1001 especially interesting for applications requiring precise bass reproduction and very unobtrusive installation.

An active dp (digitally powered) version is also available, allowing operation independant of a seperate amplifier and controller.

SPECIFICATIONS

G Sub 1001 dp+

Speaker Components

10“

Description

Digitally Powered Bass Extension Power AES

Peak

- - - Amp Power 250 W AES (single Mode) / 110 - 230 V 500 W AES (dual Mode) / 110 - 230 V 500 W AES / 4 Ω - HiMid/Sub

Impedance nominal

- - -

Rated Current

0,75 A @ 230 V

SPL 1 W / Peak @ 1 m

- - - SPL Peak @ 1 m 128 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

- 6 dB 44 Hz - 120 / 160 Hz

Tuning Frequency excursion minimum

53 Hz

Connectors

Neutrik XLR in/out Neutrik PowerCon in/out 2x Neutrik Speakon NL4MP out

Handles

1 x Rigging

Fittings

M20 on top

Weight

18,0 kg

Size height x width x depth

28,0 x 43,0 x 43,0 cm
