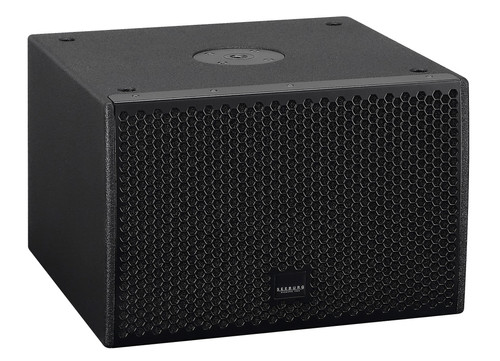

Acoustic Line - G Sub 1001 Passive Bass Extension 10"

The G Sub 1001 is a compact, high powered 10" subwoofer with a particularly low-profile form. The modern design and high power-handling capabilities make the G Sub 1001 especially interesting for applications requiring precise bass reproduction and very unobtrusive installation.

An active dp (digitally powered) version is also available, allowing operation independant of a seperate amplifier and controller.

SPECIFICATIONS

G Sub 1001

Speaker Components

10“

Description

Passive Bass Extension Power AES

Peak

350 W / 1100 W Amp Power - - -

Impedance nominal

8 Ω

Rated Current

- - -

SPL 1 W / Peak @ 1 m

97 dB / 128 dB SPL Peak @ 1 m - - -

Max. Input Signal

- - -

DSP

- - -

AD

DA: - - -

Latency

- - -

Usable Range

- 6 dB 44 Hz - 300 Hz

Tuning Frequency excursion minimum

53 Hz

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- loop thru, 2 +/- Sub Incl. switcher for active / passive operation

Handles

1 x Rigging

Fittings

M20 on top

Weight

17,0 kg

Size height x width x depth

28,0 x 43,0 x 43,0 cm
