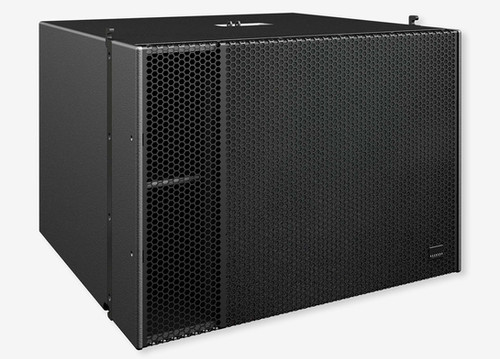

Acoustic Line - C Sub Passive Bass Extension

Bass extension for the C 15 and C 30 Constant Curvature Line Array. Integrated and visually unobtrusive flying system for flown array applications in fixed installations. The high-performance 18“ neodymium driver in combination with the optimized bass reflex technology results in a particularly impulse-frequent and deep bass reproduction.

SPECIFICATIONS

Speaker Components

18“ Nd (4,5“ VC)

Description

Passive Bass Extension Power AES

Peak

1500 W / 4500 W

Impedance nominal

8 Ω

SPL 1 W / Peak @ 1 m

101 dB / 138 dB

Usable Range

- 6 dB 30 Hz - 200 Hz

Tuning Frequency excursion minimum

36 Hz

Connectors

3 x Speakon NL4 in/out Coding (2x): 1+/- loop thru, 2+/- Sub Coding (1x): 1+/- Sub, 2+/- loop thru Rigging

Fittings

Rigging connectors for use w/ C15/C30 on C-Series flying frame

Weight

46 kg

Size height x width x depth

52,0 x 70,0 x 70,0 cm
