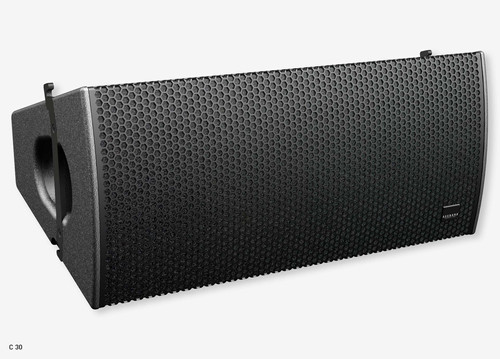

Acoustic Line - C 30 Constant Curvature Array Units

C 15 / C 30 Constant Curvature Array Units The new „Constant Curvature Array“ loudspeakers C 15 and C 30 combine the advantages of point source speakers with the performance of Line Arrays. The vertical dispersion is being defined by the addition of the single C - Series speakers.

With the C 15 and C 30 there are vertical dispersion angles of 15° and 30° available. With relatively few elements, even larger audience areas can be sounded very precisely and equally. The applications are in theatres, sports arenas, club sound reinforcement and medium-sized open air concerts.

SPECIFICATIONS

C 15 C 30

Speaker Components

2 x 10“ Nd (3“VC) 3 x 1“ Nd (1,7“ VC) 2 x 10“ Nd (3“VC) 3 x 1“ Nd (1,7“ VC)

Description

Constant Curvature Array Units Constant Curvature Array Units Power AES

Peak

800 W / 2400 W 800 W / 2400 W

Impedance nominal

8 Ω 8 Ω

SPL 1 W / Peak @ 1 m

100 dB / 134 dB 100 dB / 134 dB

Usable Range

70 Hz - 20 kHz (-6 dB) 70 Hz - 20 kHz (- 6 dB)

Tuning Frequency excursion minimum

80 Hz Hz 80 Hz

X - Overpoint acoustical

800 Hz 800 Hz

Coverage

horizontal x vertical 90° x 15° 90° x 30°

Max. Splay Angle

15° 30°

Connectors

2 x Speakon NL4MP in/out, Coding: 1+/- HiMid, 2+/- loop thru 2 x Speakon NL4MP in/out, Coding: 1+/- HiMid, 2+/- loop thru

Handles

2 x 2 x Rigging

Fittings

Integrated flying hardware, 8 x M10 for MultiRigg / MultiTilt Integrated flying hardware, 8 x M10 for MultiRigg / MultiTilt

Weight

25 kg 23,5 kg

Size height x width x depth

32,0 x 70,0 x 38,0 cm 32,0 x 70,0 x 38,2 cm
