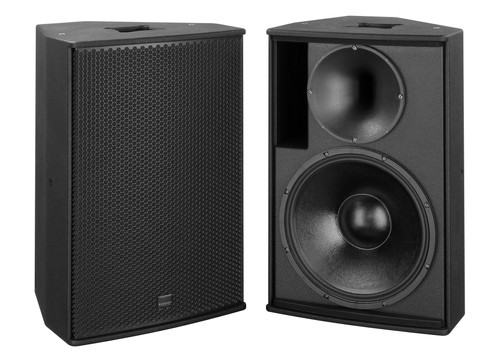

Acoustic Line - A8 Passive Speaker 15"+1"

Multifunctional 15“ Nd / 1“ cabinet with a very broad frequency range and well balanced sound characteristics. With performance similar to the A 6, but with extended bass response, the A 8 is a universal full range audio tool. A variety of M8 and M10 mounting points provide for easy mounting of the accessory hardware and installation.

SPECIFICATIONS

Speaker Components

15“ Nd / 1“

Description

Multi Purpose Sound System Power AES

Peak

500 W / 1500 W

Impedance nominal

8 Ω

SPL 1 W / Peak @ 1 m

99 dB / 131 dB

Usable Range

50 Hz - 20 kHz (-10 dB)

Tuning Frequency excursion minimum

50 Hz

X - Overpoint acoustical

1,3 kHz

Coverage horizontal / vertical

90° x 60° - rotatable

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru

Handles

2 x Rigging

Fittings

2 x M10 / 7 x M8 35 mm pole mount

Weight

23,5 kg

Size height x width x depth

69,8 x 45,0 x 42,5 cm
