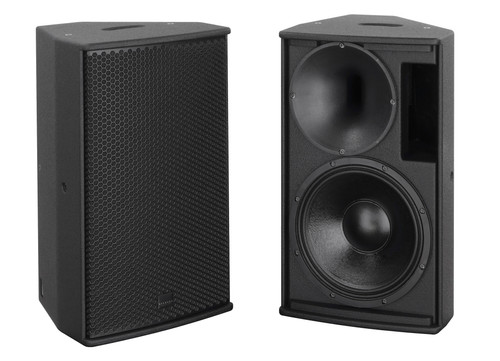

Acoustic Line - A6dp Active Speaker 12"+1"

Multifunctional 12“ Nd / 1“ cabinet with very linear sound reproduction. Equally suited to use as a high quality fullrange / high - mid unit or in monitor applications. The rotatable 1” DPC (= Dual Pattern Control) horn maintains a constant 90° x 60° dispersion over a wide frequency range.

The A 6 is also available in the dp-version with an integrated, DSP controlled 2 x 500 Watt amplifier, and in the "AF 6" version optimised for permanent installation.

SPECIFICATIONS

A 6 dp

Speaker Components

12“ Nd / 1“ Nd

Description

Multi Purpose Sound System Power AES

Peak

- - - Amp Power 2 x 500 W AES bi-amped / 110-230 V

Impedance nominal

- - -

Rated Current

0,55 A @ 230 V

SPL 1 W / Peak @ 1 m

- - - SPL Peak @ 1 m 128 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

50 Hz - 20 kHz (- 6 dB)

Tuning Frequency excursion minimum

60 Hz

X - Overpoint acoustical

Depends on preset

Coverage horizontal / vertical

90° x 60° - rotatable

Max. Splay Angle

- - -

Connectors

Neutrik XLR in/out Neutrik PowerCon in/out

Handles

1 x Rigging

Fittings

2 x M10 / 7 x M8 35 mm pole mount

Weight

16 kg

Size height x width x depth

60,6 x 36,0 x 34,0 cm
