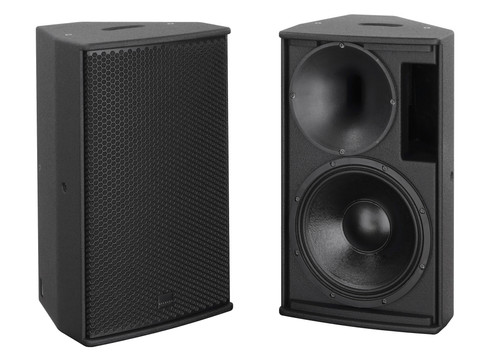

Acoustic Line - A6 Passive Speaker 12"+1"

Multifunctional 12“ Nd / 1“ cabinet with very linear sound reproduction. Equally suited to use as a high quality fullrange / high - mid unit or in monitor applications. The rotatable 1” DPC (= Dual Pattern Control) horn maintains a constant 90° x 60° dispersion over a wide frequency range.

The A 6 is also available in the dp-version with an integrated, DSP controlled 2 x 500 Watt amplifier, and in the "AF 6" version optimised for permanent installation.

SPECIFICATIONS

A 6

Speaker Components

12“ Nd / 1“ Nd

Description

Multi Purpose Sound System Power AES

Peak

500 W / 1500 W Amp Power - - -

Impedance nominal

8 Ω

Rated Current

- - -

SPL 1 W / Peak @ 1 m

99 dB / 131 dB SPL Peak @ 1 m - - -

Max. Input Signal

- - -

DSP

- - -

AD

DA: - - -

Latency

- - -

Usable Range

60 Hz - 20 kHz (-6 dB)

Tuning Frequency excursion minimum

60 Hz

X - Overpoint acoustical

1,3 kHz

Coverage horizontal / vertical

90° x 60° - rotatable

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru

Handles

1 x Rigging

Fittings

2 x M10 / 7 x M8 35 mm pole mount

Weight

17 kg

Size height x width x depth

60,6 x 36,0 x 34,0 cm
