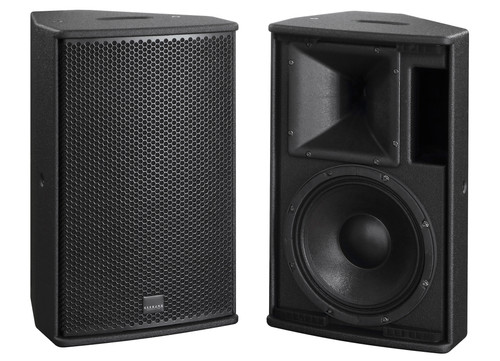

Acoustic Line - A4 Passive Speaker 10"+1"

Multifunctional 10“ Nd/1“ system with well balanced sound characteristics in a compact cabinet. The use of Neodym drivers ensures light weight. This system provides good bass reproduction even without the proprietary controller. A variety of M8 and M10 mounting points provide for easy mounting of the accessory hardware and installation.

SPECIFICATIONS

Speaker Components

10“ Nd / 1”

Description

Multi Purpose Sound System Power AES

Peak

300 W / 900 W

Impedance nominal

8 Ω

SPL 1 W / Peak @ 1 m

95 dB / 123 dB

Usable Range

- 6 dB 60 Hz - 20 kHz (-6 dB)

Tuning Frequency excursion minimum

65 Hz

X - Overpoint acoustical

1,6 kHz

Coverage horizontal / vertical

90° x 60° - rotatable

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru

Handles

1 x Rigging

Fittings

2 x M10 / 7 x M8 4 x M10 / 7 x M8 (installation version) 35 mm pole mount

Weight

13 kg

Size height x width x depth

51,5 x 32,4 x 30,6 cm
