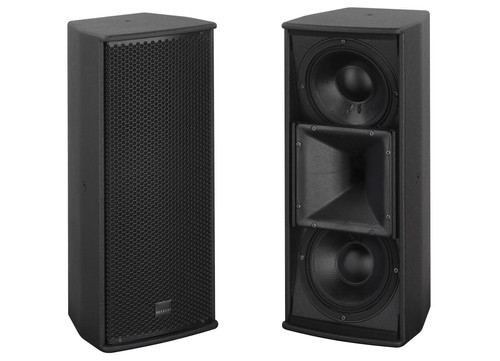

Acoustic Line - A3 Passive Speaker 2x8"+1"

High output universal high - mid system fitted with a classic 2 x 8" Nd / 1" driver combination. Equally suited as a strong top in combination with a subwoofer or as a stand alone system for speech reproduction over short to medium distances. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.

The A 3 is also available in the dp-version with an integrated,DSP controlled 500 Watt / 150 Watt AES amplifier.

SPECIFICATIONS

A 3

Speaker Components

2 x 8“ Nd / 1”

Description

HiMid Sound System Power AES

Peak

500 W / 1500 W Amp Power - - -

Impedance nominal

4 Ω (16 Ω optional)

Rated Current

- - -

SPL 1 W / Peak @ 1 m

100 dB / 132 dB

SPL Peak@1m

- - -

Max. Input Signal

- - -

DSP

- - -

AD

DA: - - -

Latency

- - -

Usable Range

80 Hz - 20 kHz (-6 dB)

Tuning Frequency excursion minimum

90 Hz

X - Overpoint acoustical

1,4 kHz

Coverage horizontal / vertical

90° x 60° rotatable

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop through

Handles

1 x Rigging

Fittings

4 x M10 2 x M6 35 mm pole mount

Weight

12,5 kg

Size height x width x depth

59,0 x 25,0 x 25,0 cm
