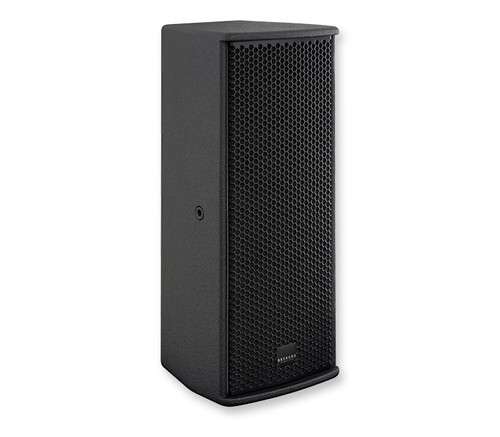

Acoustic Line - A2dp Active Speaker 2x6,5"+1"

An unobtrusive and elegant Hi - Mid system for permanent installations and coporate applications. The classic 2 x 6.5” Nd / 1” combination provides for clear and transparent speech reproduction and a good throw. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.

The A 3 is also available in the dp-version with an integrated,DSP controlled 500 Watt / 150 Watt AES amplifier.

SPECIFICATIONS

A 2 dp

Speaker Components

2 x 6,5" Nd (2" VC) / 1" (1,7" VC)

Description

HiMid Sound System Power AES

Peak

- - -

Amp Power AES

LF: 500 W AES / 110-230 V HF: 150 W AES / 110-230 V

Impedance nominal

- - -

Rated Current

0,5 A @ 230 V

SPL 1 W / Peak @ 1 m

- - -

SPL Peak@1m

128 dB

Max. Input Signal

25 dBu

DSP

HDLM FPGA Processing 32 bit floating point

AD

DA: 24 bit / 96 kHz

Latency

0,8 ms (analog in to analog out)

Usable Range

80 Hz - 19 kHz

Tuning Frequency excursion minimum

95 Hz

X - Overpoint acoustical

Depends on preset

Coverage horizontal / vertical

90° x 60° - rotatable

Max. Splay Angle

- - -

Connectors

Neutrik XLR in/out Neutrik PowerCon in/out

Handles

1 x Rigging

Fittings

4 x M10, 2 x M6 35 mm pole mount

Weight

10,5 kg

Size height x width x depth

51,0 x 21,0 x 21,0 cm
