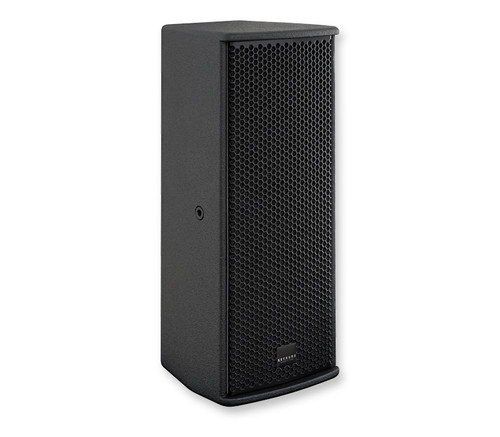

Acoustic Line - A2 Passive Speaker 2x6,5"+1"

An unobtrusive and elegant Hi - Mid system for permanent installations and coporate applications. The classic 2 x 6.5” Nd / 1” combination provides for clear and transparent speech reproduction and a good throw. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.

The A 3 is also available in the dp-version with an integrated,DSP controlled 500 Watt / 150 Watt AES amplifier.

SPECIFICATIONS

A 2

Speaker Components

2 x 6,5" Nd (2" VC) / 1" (1,7" VC

Description

HiMid Sound System Power AES

Peak

400 W / 1200 W

Amp Power AES

- - -

Impedance nominal

8 Ω

Rated Current

- - -

SPL 1 W / Peak @ 1 m

97 dB / 128 dB

SPL Peak@1m

- - -

Max. Input Signal

- - -

DSP

- - -

AD

DA: - - -

Latency

- - -

Usable Range

80 Hz - 19 kHz (-6 dB)

Tuning Frequency excursion minimum

95 Hz

X - Overpoint acoustical

1,5 kHz

Coverage horizontal / vertical

90° x 60° - rotatable

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru

Handles

1 x Rigging

Fittings

4 x M10, 2 x M6 35 mm pole mount

Weight

9,5 kg

Size height x width x depth

51,0 x 21,0 x 21,0 cm
