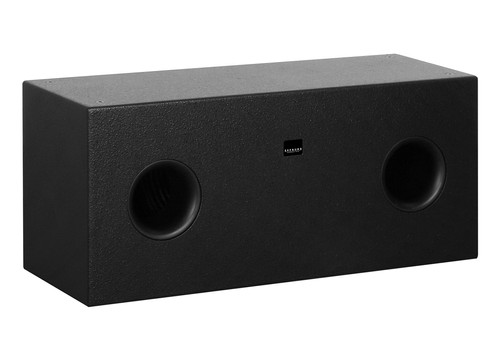

Acoustic Line - A1 Sub Passive Bass Extension 12"

Subwoofer extension for the A 1. The 12” long-excursion chassis utilises a double-bandpass cabinet, ensuring very deep and punchy bass response. The cabinet features 8 x M8 mounting points for installation.

SPECIFICATIONS

A 1 Sub

Speaker Components

12“

Description

Passive Bass Extension Power AES

Peak

500 W / 1500 W

Impedance nominal

8 Ω

SPL 1 W / Peak @ 1 m

100 dB / 132 dB

Usable Range

35 Hz - 150 Hz (-6 dB)

Tuning Frequency excursion minimum

38 Hz / 80 Hz

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1+/- loop thru, 2+/- Sub

Handles

- - - Rigging

Fittings

8 x M8 (M20 on top on request)

Weight

17,5 kg

Size height x width x depth

35,0 x 80,0 x 30,0 cm
