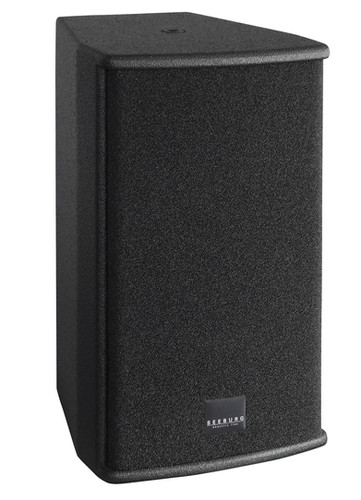

Acoustic Line - A1 Passive Speaker 6,5"+1,1"

Universal small format loudspeaker for high quality music and speech reproduction. Well suited for applications in Pubs, Bistros and Cafes, and as a universal near field system. 3 x M10 mounting points provide for easy installation.

SPECIFICATIONS

Speaker Components

6,5“ Nd / 1,1“

Description

Multi Media Sound System Power AES

Peak

200 W / 600 W

Impedance nominal

8 Ω ( 16 Ω optional)

SPL 1 W / Peak @ 1 m

93 dB / 121 dB

Usable Range

75 Hz - 19 kHz (-10 dB)

Tuning Frequency excursion minimum

91 Hz

X - Overpoint acoustical

2,3 kHz

Coverage horizontal / vertical

90° - conical

Max. Splay Angle

- - -

Connectors

2 x Neutrik Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru

Handles

- - - Rigging

Fittings

3 x M10

Weight

5,5 kg

Size height x width x depth

33,9 x 20,4 x 20,4 cm
