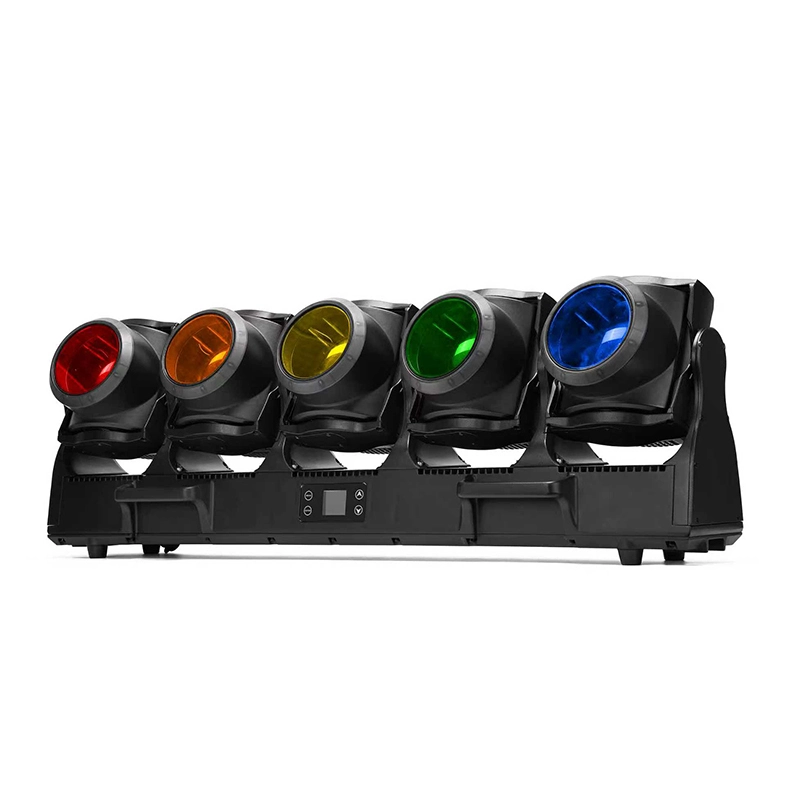

TORNADO IP

The Tornado IP adopts 5×120W RGBL LEDs and 120×0.5W RGB LEDs with independent pan and tilt movement. It features variable-speed powerful strobe effects, 0-100% smooth dimming, excellent color mixing and rich color macro effects. Designed with linear focusing structure for precise beam control.

This reliable fixture delivers dynamic and varied lighting presentations, perfectly suitable for outdoor performances, concerts and large-scale events to create striking, immersive stage visual effects.

✦ 5*120W RGBL LED

✦ 120*0.5W RGB LED

✦ Individual Pan/Tilt Movement

✦ Outstanding strobe effects with variable speed

✦ Variable light adjustment from 0-100% dimming

✦ Outstanding color mixing effects

✦ Outstanding color macro effects

✦ Linear focusing structure

• OPTIC
• Main Light: 5 x 120W RGBL 4in1 LEDs
• Outer Circle: 120 x 0.5W RGB LEDs
• Total Lumen Output of Fixture: 13,000 lumens
• Life Expectancy: 20,000 hours
• Beam Angles: 3°-30°
• Field Angles: 4°-35°
• Pan Movement: 59°
• Tilt Movement: 221°
• Automatic Pan/Tilt position correction
• Resolution: 16 bit
• DYNAMIC EFFECT
• Outstanding strobe effects with variable speed
• Variable light adjustment from 0-100% dimming
• Outstanding color mixing effects
• Outstanding color macro effects
• Linear focusing structure
• ELECTRICAL AND CONTROL
• Input Voltage Range: 100-240V~ 50/60Hz

Power Consumption

935W

Power In/Out

Seetronic Powercon true1 in/out

Data In/Out

Seetronic 3-pin XLR 4 button touch control panel

Display

LCD display

Protocols

DMX512, RDM

DMX Protocol Modes

2

Control Channels

41/71CH

Firmware Upgrade

Upgrade via DMX link

BODY

Fixture Size:1019*196*334mm

Net Weight

27.5kg

Protection Rating

IP65

INSTALLATION

Horizontal or vertical mounting、Universal working position、2 x omega brackets、Safety cable attachment point

PHOTOMETRICS

DIMENSIONS(MM)
