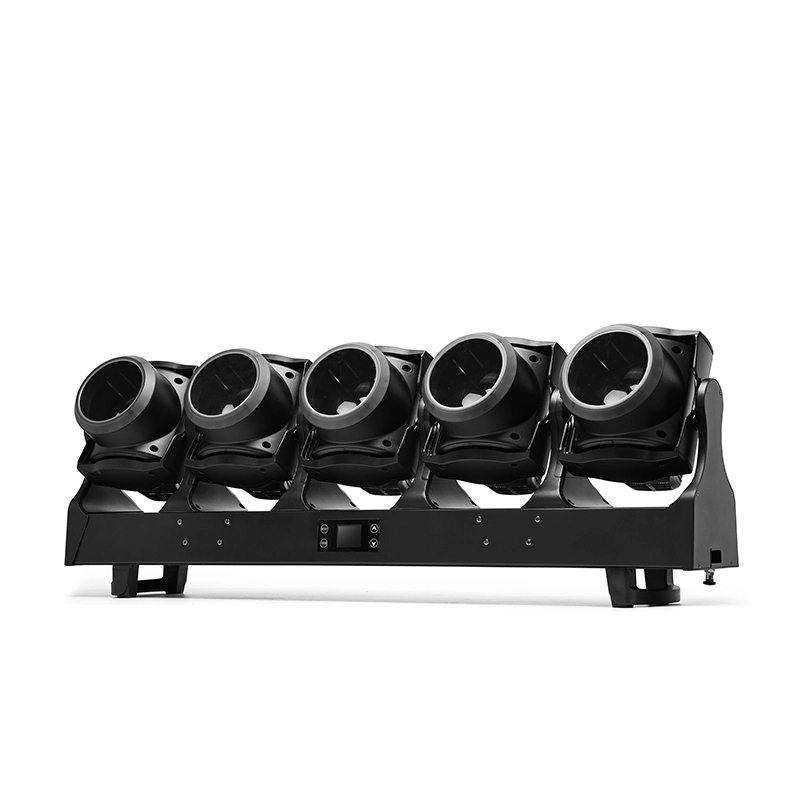

TORNADO

TORNADO equipped with 5×120W main LEDs and 120×0.5W surrounding RGB LEDs, delivering up to 13,000 lumens with a 20,000-hour lifespan. It features adjustable 3°–30° beam and 4°–35° field angles, 16-bit precise 59° pan & 221° tilt with auto position correction. Supporting DMX512 & RDM with multiple channel modes, it has smooth 0–100% dimming, variable strobe, rich color mixing and linear focus.

The touch LCD panel enables easy operation, and firmware can be updated through DMX connection for versatile stage performances.

✦ Main Light: 5 x 120W LEDs

✦ Outer Circle: 120 x 0.5W RGB LEDs

✦ Beam Angles: 3°-30°

✦ Field Angles: 4°-35°

✦ Pan Movement: 59° Tilt Movement: 221° with automatic Pan/Tilt position correction

• OPTIC
• Main Light: 5 x 120W RGBL 4in1 LEDs
• Outer Circle: 120 x 0.5W RGB LEDs
• Total Lumen Output of Fixture: 13,000 lumens
• Life Expectancy: 20,000 hours
• Beam Angles: 3°-30°
• Field Angles: 4°-35°
• Pan Movement: 59°
• Tilt Movement: 221°
• Automatic Pan/Tilt position correction
• Resolution: 16 bit
• OTHER EFFECTS
• Outstanding strobe effects with variable speed
• Variable light adjustment from 0-100% dimming
• Outstanding color mixing effects
• Outstanding color macro effects
• Linear focusing structure
• ELECTRICAl AND CONTROL
• Input Voltage Range: 100-240V~ 50/60Hz

Power Consumption

935W

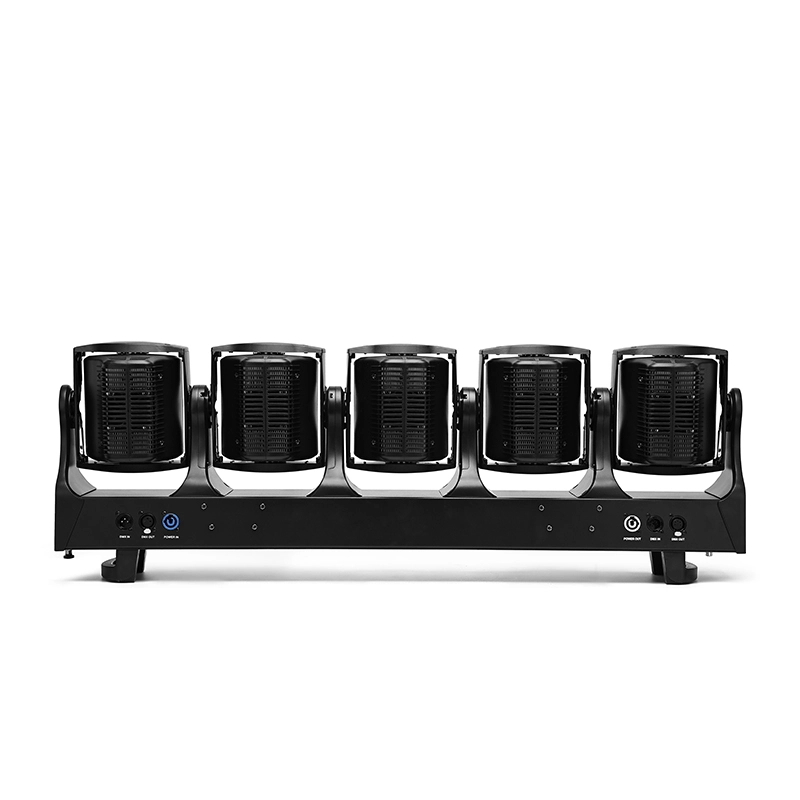

Power In/Out

Waterproof power connector in/out (True1 type)

Data In/Out

3-pin XLR 4 button touch control panel

Display

LCD display

Protocols

DMX512, RDM

DMX Protocol Modes

2

Control Channels

41/71CH

Firmware Upgrade

Upgrade via DMX link

FIXTURE SPECIFICATION AND INSTALLATION

Fixture Size:1002*196*334mm

Net Weight

26.6kg

Protection Rating

IP33 Horizontal or vertical mounting Universal working position 2 x omega brackets Safety cable attachment point

PHOTOMETRICS

DIMENSIONS(MM)
