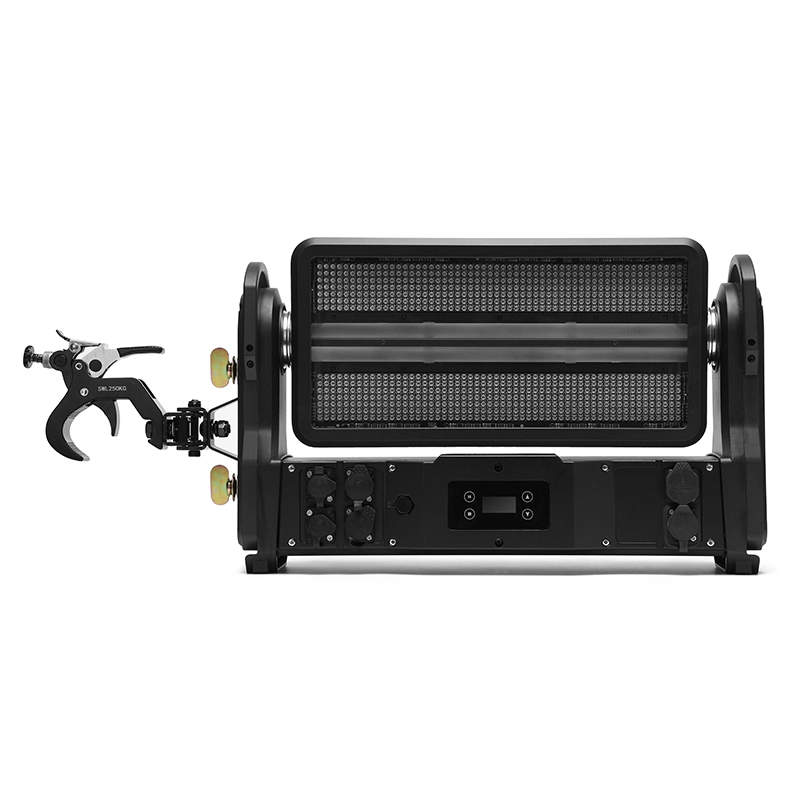

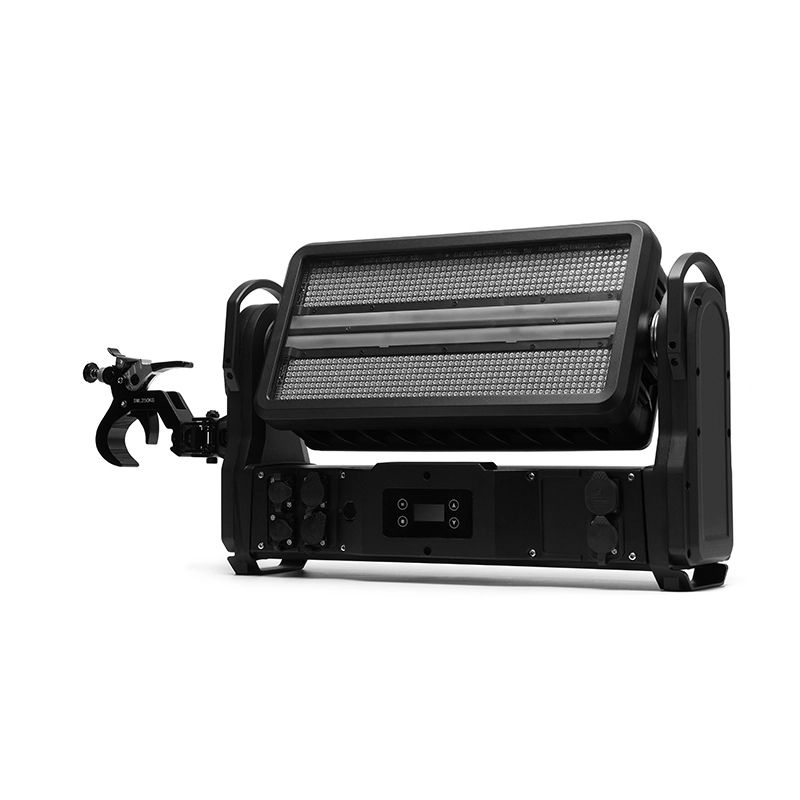

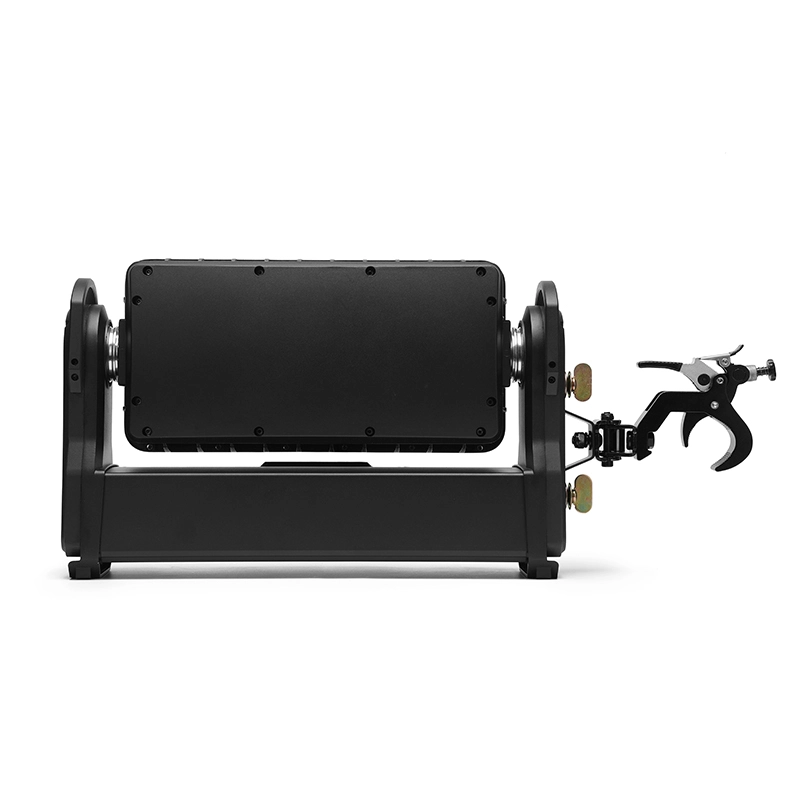

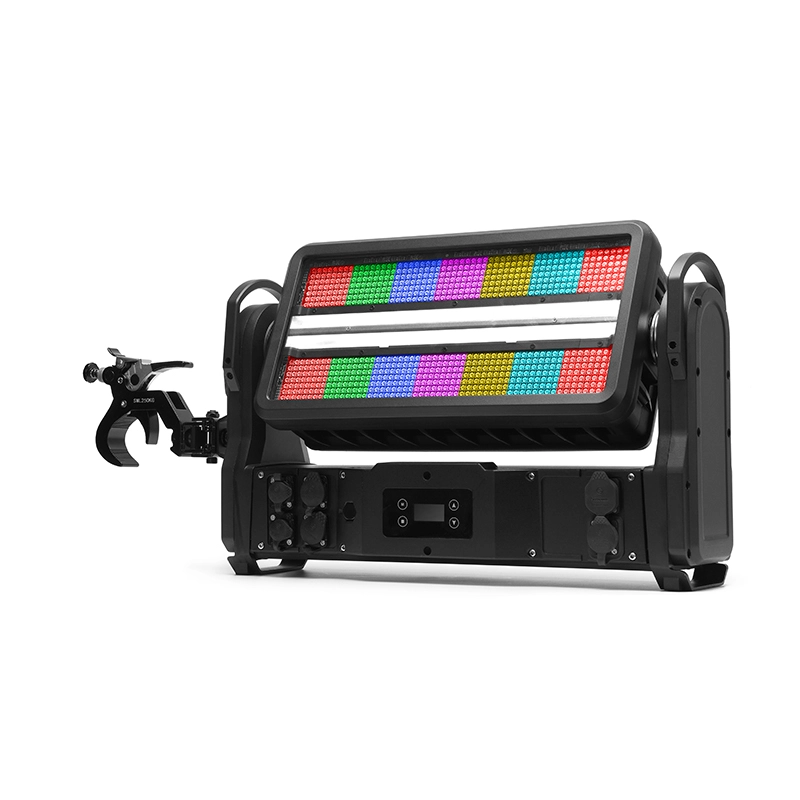

STRIKE M IP

Stike M adopts premium light source configuration with 784 RGB LEDs plus 392 cool-white LEDs, delivering rich layered color mixing and bright pure white light output. It supports smooth tilt movement and adjustable strobe effects to create dynamic visual atmospheres for concerts, outdoor performances and events.

Made of sturdy aluminum die-casting, the fixture weighs only 11kg for easy transport and installation. It is fully compatible with CH Color Strike M system and reaches IP65 protection grade, stable and reliable for long-term outdoor wet environment use.

✦ LED Type:784Pcs 5050 0.5W RGB 3in1 LEDS

✦ LED Segments:14(2x7)

✦ Strobe TubeLEDs

✦ LED Type:392Pcs 3535 5W 6500KCool-white LEDs。

✦ LED Segments:28(2x14)

✦ Tilt (Degrees):185°,Resolution:8-16 Bit

✦ With Position Feedback

• OPTIC
• Strobe Panel LEDs
• LED Type: 784Pcs 5050 0.5W RGB 3in1 LEDs
• LED Segments: 14 (2 x 7)
• Strobe Tube LEDs
• LED Type: 392Pcs 3535 5W 6500K Cool-white LEDs
• LED Segments:28(2x14)
• ELECTRICAL AND CONTROL
• Control Modes:8/11/13/24/74/97/14/5CH
• Display: Illuminated graphic OLED
• Protocol: USITT DMX-512, RDM, ARTNET
• RDM: Bidirectional communication
• Wireless DMX: 2.4 GHz W-DMX™ (optional)

Cooling

Temperature controlled, overheating protection

Mains voltage

100-240V AC / 50-60Hz

Güç

1200W

Maximum ambient temperature

-30°C / 86°F, 50°C / 122°F

Operating Position

any

DYNAMIC EFFECT

Dimmer: 0-100%

Internal Effects

LED Macro Effects

Strobe

1-25 hz, random and pulse flash

Tilt (Degrees)

185° ,Resolution: 8-16 Bit

Position Feedback

YES

BODY

Alumininum die casting

Standard colors

black

Signal connection

Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

Power Input

Seetronic powerCON TRUE1 In/Out

Length

502 mm / 119.8 in

Width

137 mm / 5.4 in

Height (head horizontal)

326 mm / 12.8 in

N.W

11.2 kg G.W: 13.5 kg

Single fixture

cardboard (inner and outer cartons)

Tourpack

4-way Flight Case

SEGMENT CONTROL

DIMENSIONS(MM)
