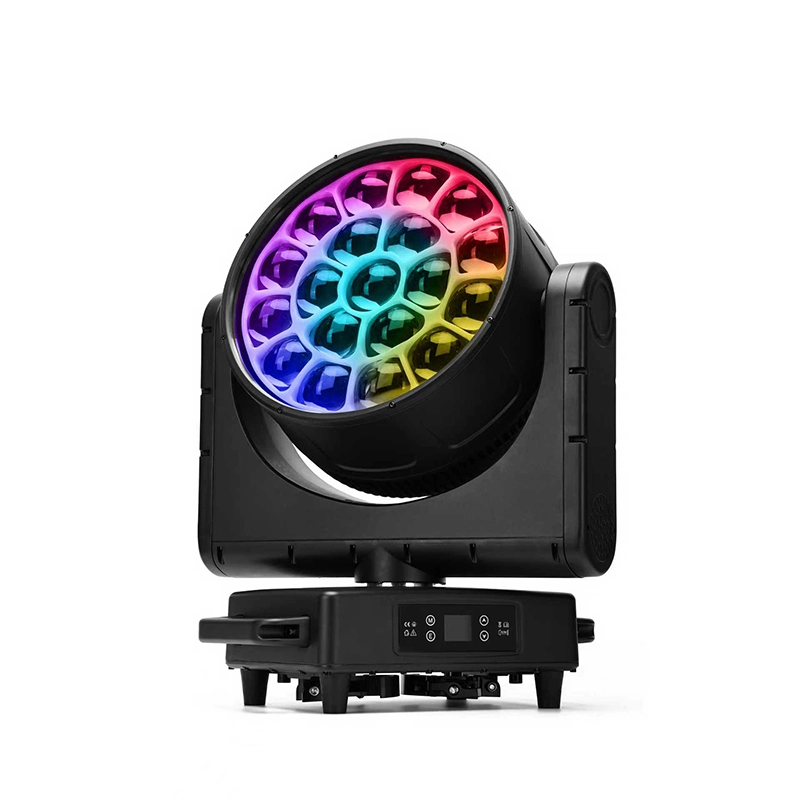

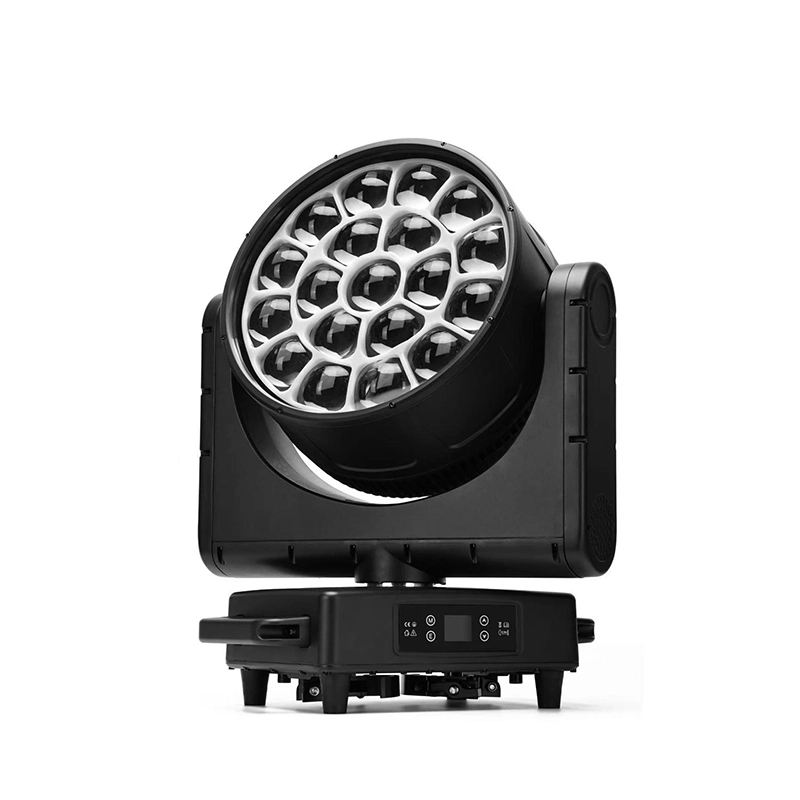

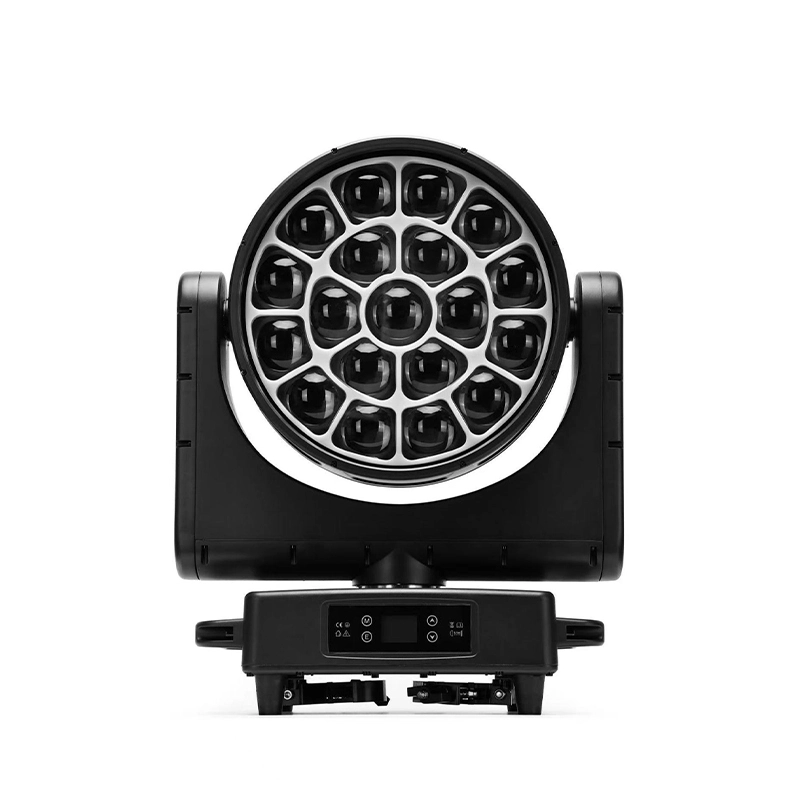

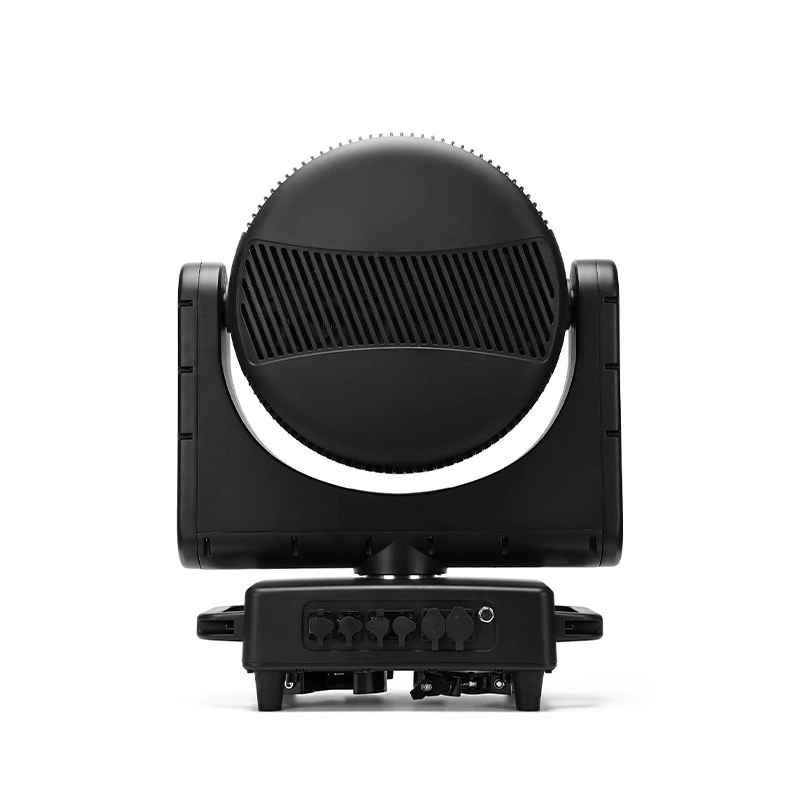

MRGO 1980 IP

The MRGO 1980 IP features 19×80W RGBW 4-in-1 main LEDs plus 3030×2W RGB backlights with full individual pixel control. It supports a 6°–55° adjustable zoom, vivid liquid texture effects, and powerful 2D & 3D graphic mapping for immersive stage visuals. Built with lightweight magnesium-aluminum alloy and an IP65 waterproof housing, this durable fixture delivers rich layered lighting effects, perfectly suited for outdoor concerts, events and large-scale performance venues.

✦ Main light: 19*80W RGBW 4in1 LED

✦ Back light: 3030*2W RGB

✦ Individual Pixel Control

✦ Zoom angle:6°to 55°

✦ Lquid Effect

✦ 2D & 3D graphical effects capabilities

✦ Magnesium Aluminum IP65 body

• EFFECTS
• Dimming: 16-bit linear dimming from 0 to 100%
• Individual Pixel Control
• Strobo frequency: 1~30Hz
• Focus: Electric focus system
• Zoom angle:6°to 55°
• Lquid Effect
• 2D & 3D graphical effects capabilities
• ELECTRICAL AND CONTROL
• Input voltage: AC100-240V~ 50/60Hz
• Consumed Power: 1950W
• Power connectors: Seetronic PowerCon True1 IN/OUT
• DMX connectors: Seetronic 3-Pin XLR IN/OUT Optional 5Pin
• Control Protocol: DMX512, RDM, Art-Net optional, SACN
• DMX Channel: 27CH/117CH/98CH/103CH/84CH/41CH
• Display: LCD display with display flip
• LIGHT SOURCE
• Main light: 19*80W RGBW 4in1 LED
• Back light: 3030*2W RGB
• BODY
• Pan: 540 degress
• Tilt: 270 degrees
• P/T position: Auto correction
• P/T: 16bit scanning
• Working in any position
• Magnesium Aluminum IP65 body
• Dimensions: 475*280*633MM(L*W*H)
• Net Weight: 32Kg
• Fly Case 2in1: 109*61*88CM 86KG
• DIMENSIONS(MM)
