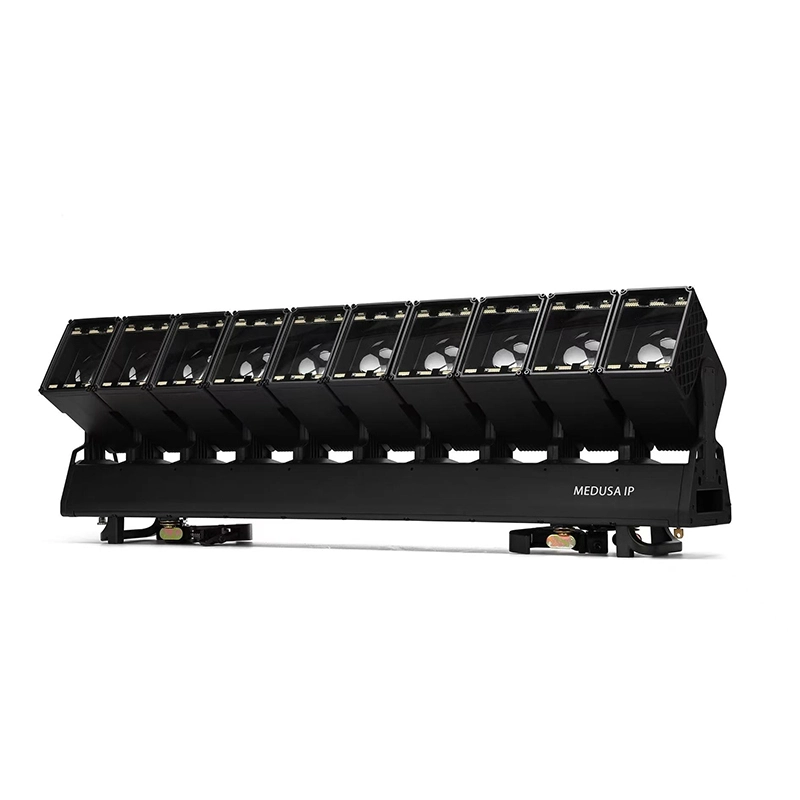

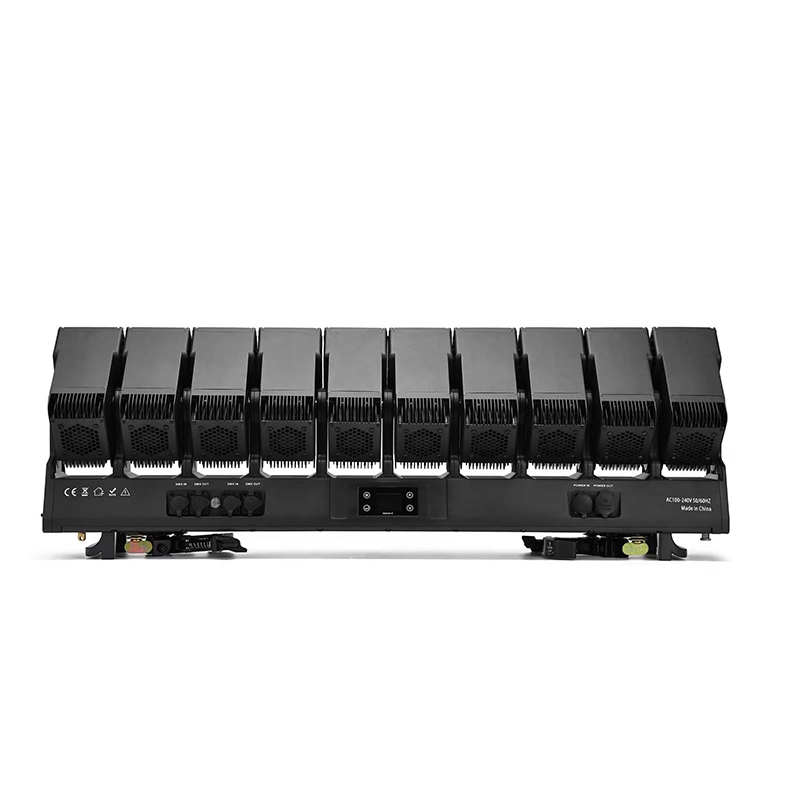

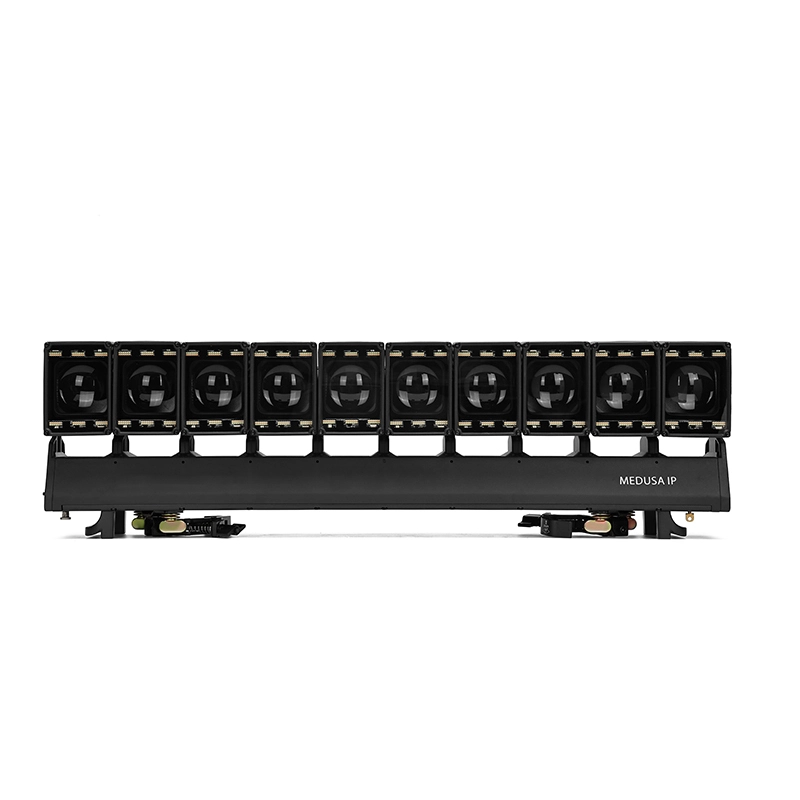

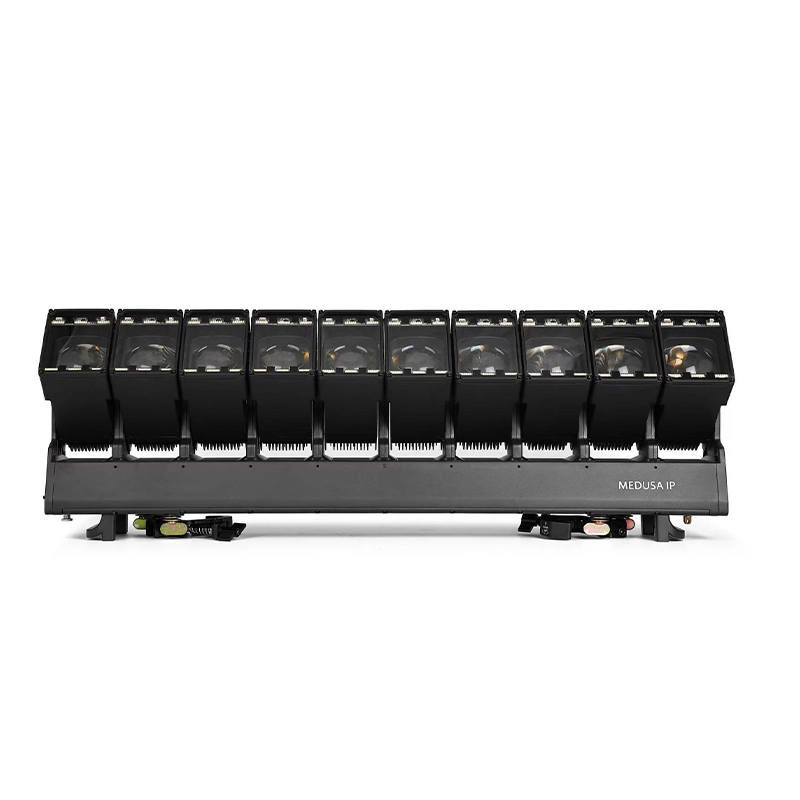

MEDUSA 1080 IP

A professional motorised linear lighting fixture equipped with high-power multi-colour and dual white light sources. It supports pixel control to create vivid segmented lighting visuals, paired with an adjustable zoom system that shifts from sharp narrow beams to wide flood coverage.

The fixture provides an extensive tilt range with multiple preset positioning angles for flexible installation. Boasting robust dustproof and waterproof performance, it delivers stable operation for stage performances, outdoor events and architectural lighting applications.

✦ 10*LEDs (RGBW 4in1) 80W

✦ 360*Golden+360*Cool White LED

✦ Pixel-mappable motorized LED Batten

✦ 10 heads controlled individually

✦ 5.7° to 36.3° Zoom Angle

✦ 5.7° Beam Angle

✦ 200° Tilt

✦ 60°, 180°, 200° Tilt Range

✦ IP65

• OPTIC
• 10*LEDs (RGBW 4in1) 80W, 360*Golden+360*Cool White LED
• 50,000 hours life expectancy
• Color Temperature (range): 2700 to 8000K
• Beam Angle Spot: 5.7°
• Beam Angle Flood: 26.8°
• Field Angle Spot: 9°
• Field Angle Flood: 33.9°
• Cutoff Angle Spot: 9.9°
• Cutoff Angle Flood: 36.3°
• Zoom Range: 5.7° to 36.3°
• Individual LED Control
• DYNAMIC EFFECT
• Tilt: 200°
• Tilt Range: 60°, 180°, 200°
• Dimmer: Electronic
• Shutter/Strobe: Electronic, 0 to 30Hz
• ELECTRICAL AND CONTROL
• AC100 to 240V, 50/60 Hz (auto-ranging)

Power Consumption

880w

Control Protocol

DMX512/RDM, Optional Artnet

DMX CH Model

CH29/56/144/216/262/282

Power connections

Seetronic True1 PowerCON IN/OUT

Data connections

3pin(or 5pin) DMX IN/OUT

BODY

Protection Level: IP65

Fixture Size

1009*154*332mm

New Weight

28.5KG

Carton box 1in1

112*27*45cm/32KG

Flight case 2in1

118*60*52cm/87KG (2) Omega bracketsS、Power cord 3-Pin DMX Cable、Safety Rope

OPTIONAL ACCESSORIES

Professional Folding Clamps Power linking cables Flight Case
