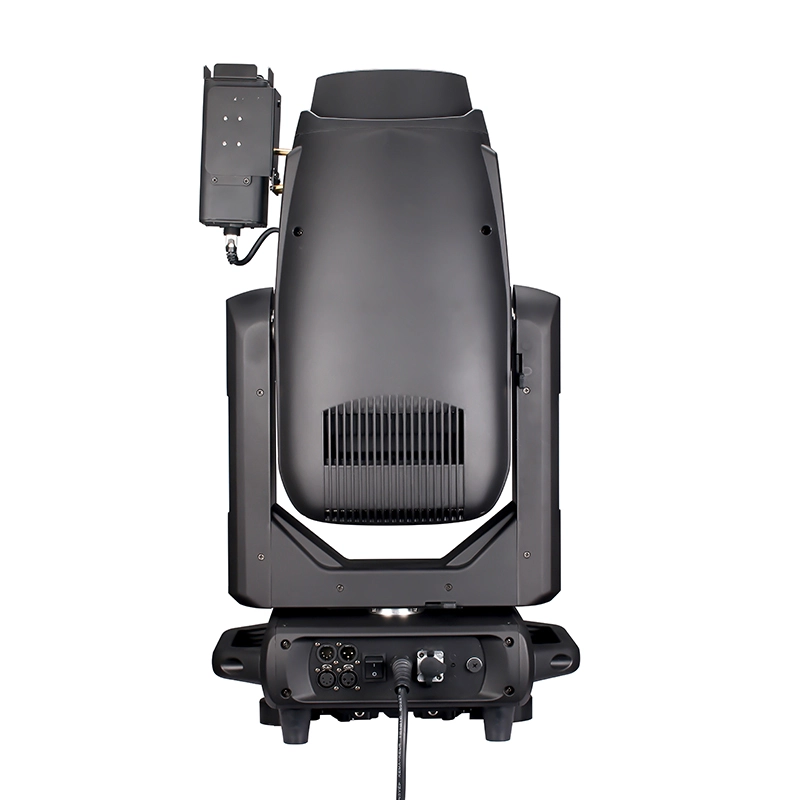

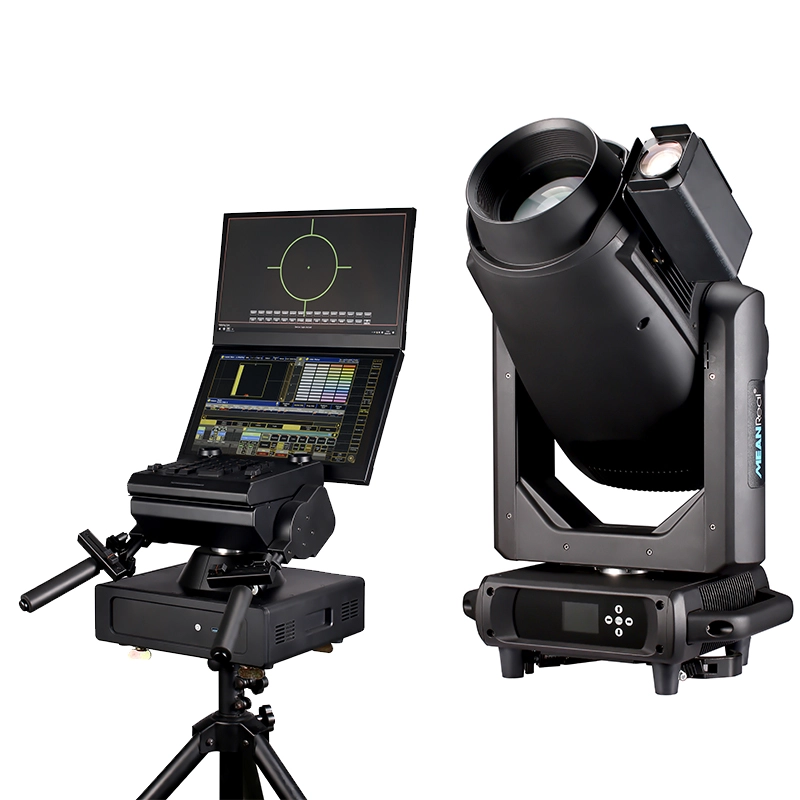

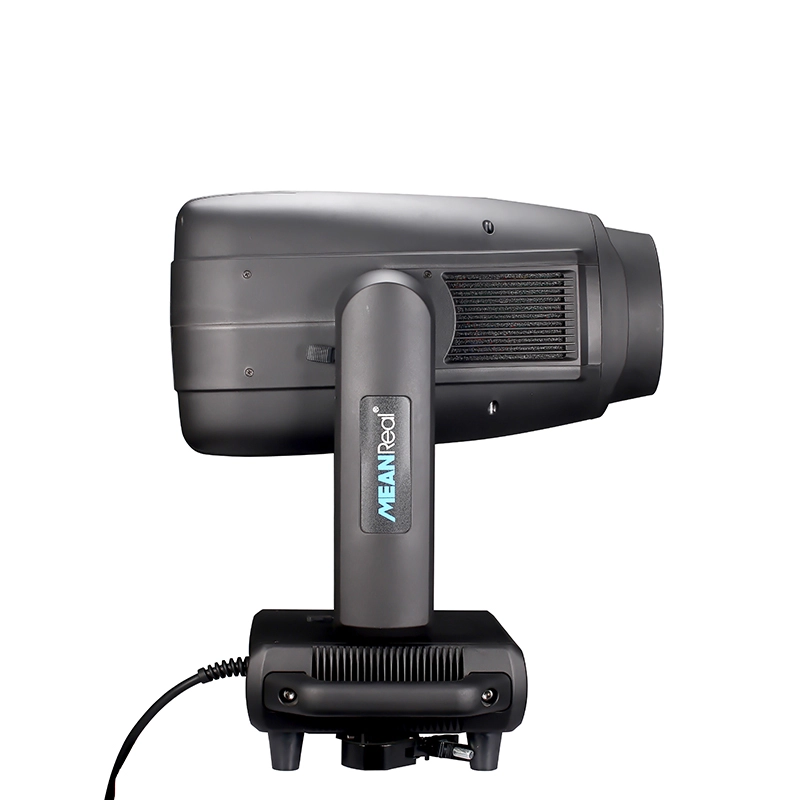

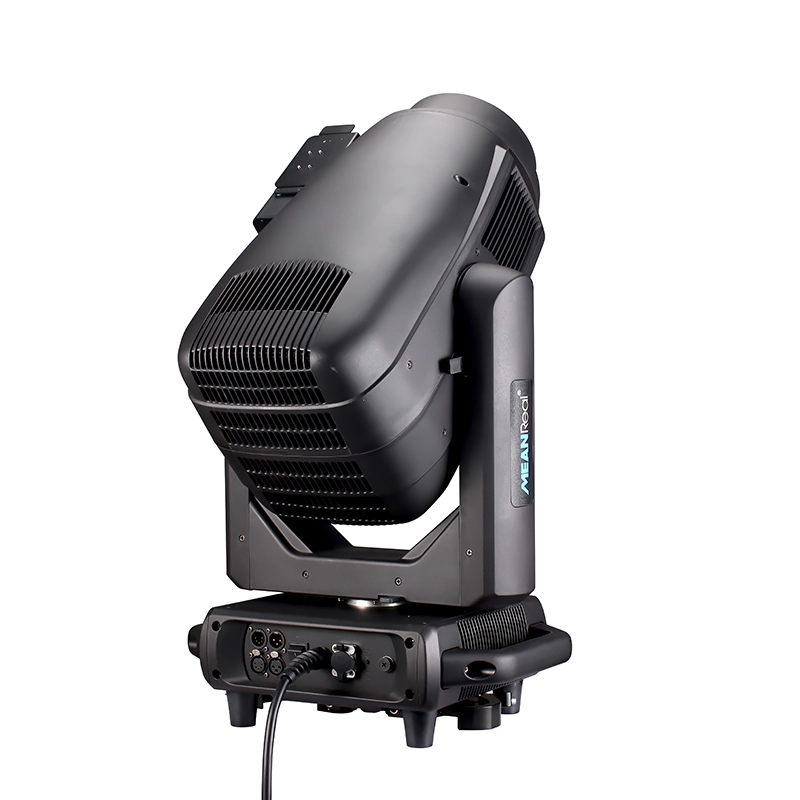

FT1200 TRACK Akıllı kamera ve elle pan/tilt kontrolü bulunan takip sistemi — görsel 1

Mean Real

FT1200 TRACK Akıllı kamera ve elle pan/tilt kontrolü bulunan takip sistemi

Işık SistemleriMoving HeadKod: FT1200 TRACK

€35.280

₺1.957.338

KDV hariç

WhatsApp’tan Bilgi Al
Adet
Listeyi aç

FT1200 TRACK Akıllı kamera ve elle pan/tilt kontrolü bulunan takip sistemi

Ürün açıklaması

The FT1200 TRACK is equipped with a powerful 900W white LED light engine, this follow spotlight enables manually adjustable multi-angle illumination to deliver flawless facial lighting. Fitted with a 2-megapixel Hikvision 1080P camera, it features 5° to 50° motorised linear zoom, linear iris and macro shooting capability.

Four framing shutters rotate up to ±90° for flexible beam framing. It offers seven dichroic filters, bidirectional rotating rainbow effects and CMY+CTO colour mixing, supported by a dedicated tracking gimbal control system for stunning stage visual effects.

✦ 900W White LED light source

✦ Multi-angle light for face with manual movement

✦ Hikvision 1080P camera, 2 mega pixels

✦ 5°- 50° linear motorized zoom

✦ Linearly Iris with macro function

✦ 4 independent framing shutters with +/- 90°rotation

✦ 7 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect

✦ CMY + CTO Color mix system

Teknik Özellikler

  • OPTIC
  • Light Source: 900W White LED
  • Light Color Temperature: 6500K
  • Average LED Life: 20,000 Hour
Power Consumption
1200W max Hikvision 1080P camera, 2 mega pixels
DYNAMIC EFFECT
Zoom: 5°- 50° linear motorized
Frost
Frost filter hybrid wash effect
Iris
Linearly Iris with macro function
Strobe
0-25Hz variable speed, pulse, and random strobe
Dimmer
0-100% variable linear dimming curves
CRI Filter
CRI>90 4 independent framing shutters with +/- 90°rotation 7 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect CMY + CTO Color mix system
ELECTRICAL AND CONTROL
IXTURE SPECIFICATION
DMX Channel
31/26CH
Control Protocol
DMX, Maunal, RDM, Artnet

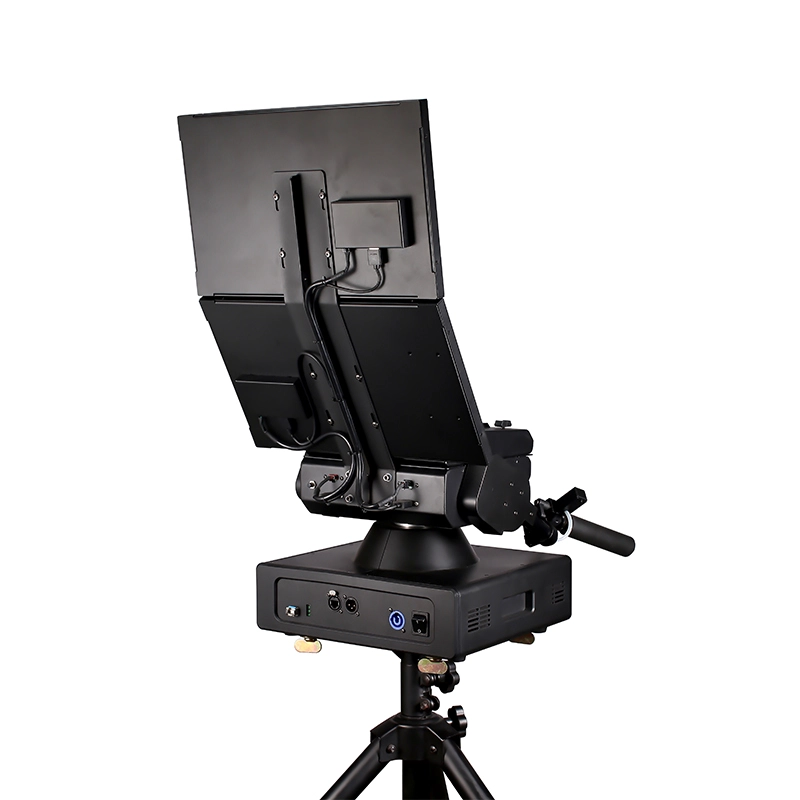

CONTROLLER SPECIFICATION
Host Voltage: AC110V-220V 50/60Hz(UPS)(MAX 135W)
Optical interface
LC interface,Optical Fiber wavelength: 1310nm/1550nm,Transmission distance: 25km, Optical port speed: 155M, Electric port speed: 100M
Network Interface
RJ45X1
BODY
IXTURE SPECIFICATION
Net Weight
28kg
Dimension
407×278×733mm
CONTROLLER SPECIFICATION
Product size: 370X650X670mm N.W.: 15kg
Touch input
Capacitive touch screen resolution 1920X1080,Color gamut 72,2 pcs of 15.6'' touch screens
Pan movement
90°(-45°to 45°)
Tilt movement
60°(-30°to 30°) 30 physical command buttons(Mechanical black shaft) Two-way attribute adjustment encoders Four-way physical storage playback faders, Manual 60mm.
Operating temperature
-10℃ ~ 60℃,Less than 90%RH
Minimum illumination
Multicolor:0.005Lux Black and white:0.0005Lux
Signal-to-noise ratio
More than 52dB
PHOTOMETRICS
DIMENSIONS(MM)
