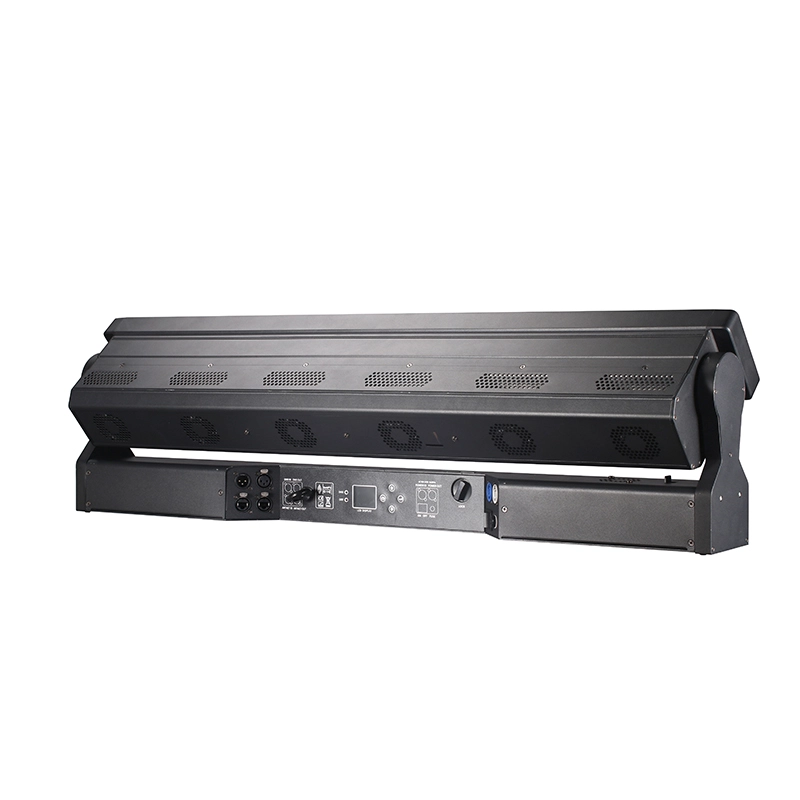

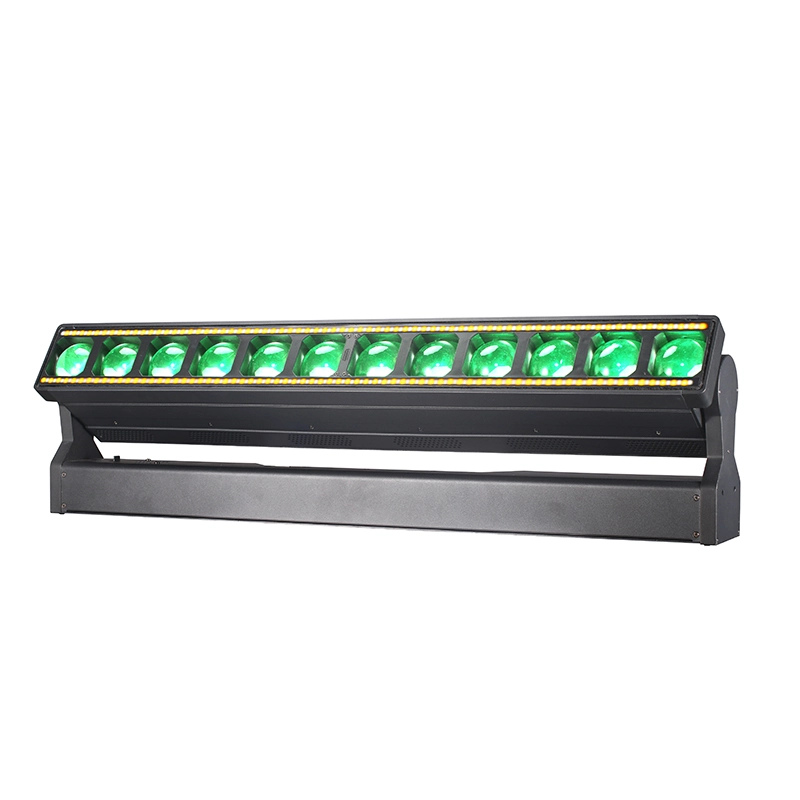

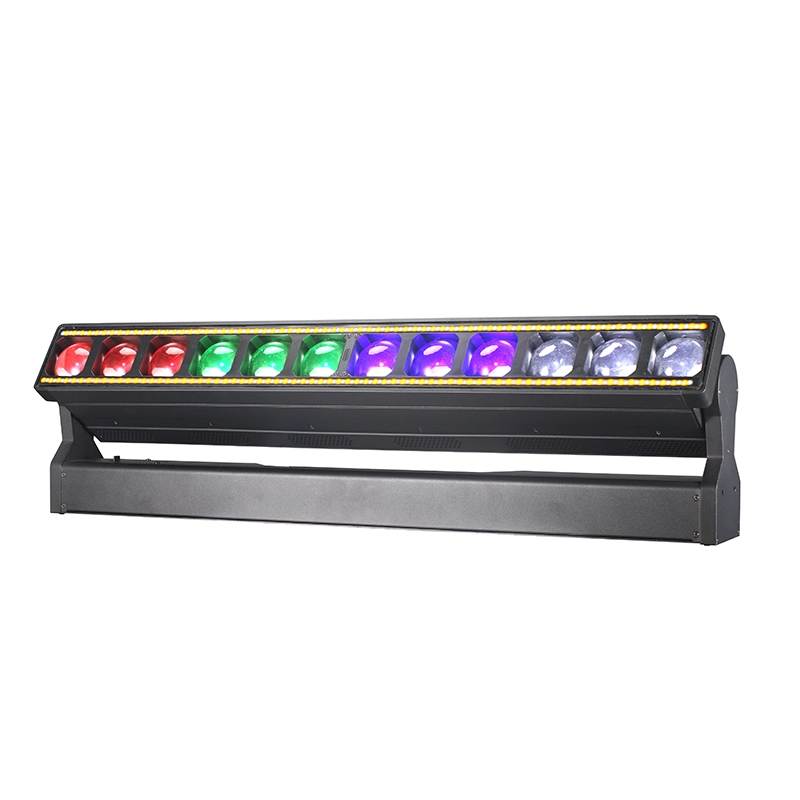

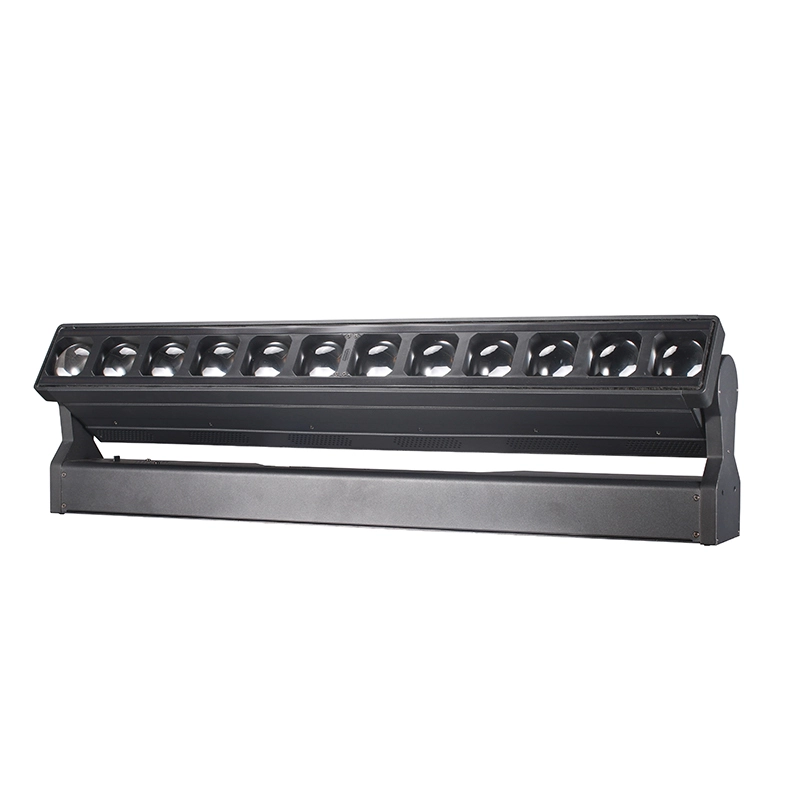

DIAMOND LINE 1240

The DIAMOND LINE 1240 is a versatile stage bar light fitted with 12‑piece 40W RGBW 4‑in‑1 LEDs. It integrates beam, wash and strobe effects with 205‑degree tilt together with 16‑bit fine‑tune adjustment for precise positioning. It features electronic dimming and an electronic shutter supporting 0‑30Hz strobe speed.

Independent single‑LED control enables varied customized lighting patterns. Designed for professional stages, concerts and event shows, this fixture brings flexible dynamic visual effects for your lighting projects.

✦Main Light Section:12LEDS(RGBW 4in1)40W

✦Individual LED Control

✦Beam range:3°-34

✦Pixel-mappable Zones:12+24

• OPTIC
• Main Light Section: 12 LEDs (RGBW 4in1) 40W
• Stripe Light Section:
• ·72x0.3W Golden
• ·72x0.3W White
• 50,000 hours life expectancy
• Color Temperature (range): 2500 to 9000K
• Individual LED Control
• Beam range: 3°-34°
• Pixel-mappable Zones: 12+24
• DYNAMIC EFFECT
• Tilt: 205 degree + fine, 16bit
• Dimmer: Electronic
• Shutter/Strobe: Electronic, 0 to 30Hz
• ELECTRICAL AND CONTROL
• AC100 to 240V, 50/60 Hz (auto-ranging)

Power Consumption

500w

Control Protocol

DMX512/RDM/Artnet

DMX Channel

CH23, CH28, CH35, CH57. CH71, CH117 (EL Proteus Rayzor Blade L Compatible)

Software upgrade

through DMX connection

Power connections

PowerCON IN/OUT

Data connections

3pin(or 5pin) DMX IN/OUT

BODY

Protection Level: IP20

Fixture Size

998*116*314mm

New Weight

16KG

Carton box 1in1

110*20*36cm/18KG

Flight case 4in1

120*60*52cm/92KG WHAT'S INCLUDED：Diamond Line 1240、(2) Omega bracketsS、Power cord、3-Pin DMX Cable Safety Rope：OPTIONAL ACCESSORIES、Professional Folding Clamps、Power linking cables、Flight Case

PHOTOMETRICS

DIMENSIONS(MM)
