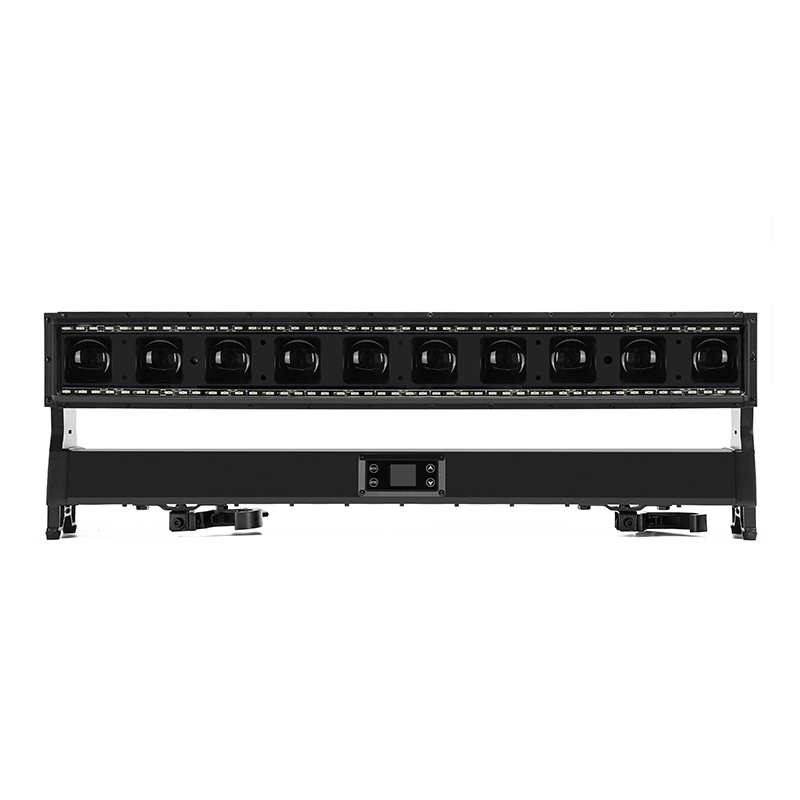

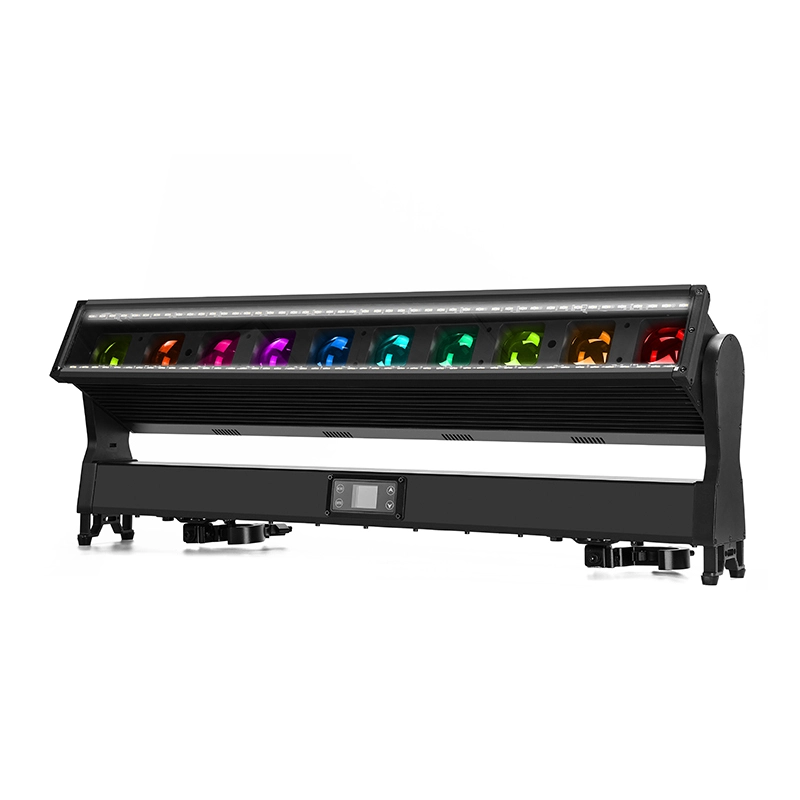

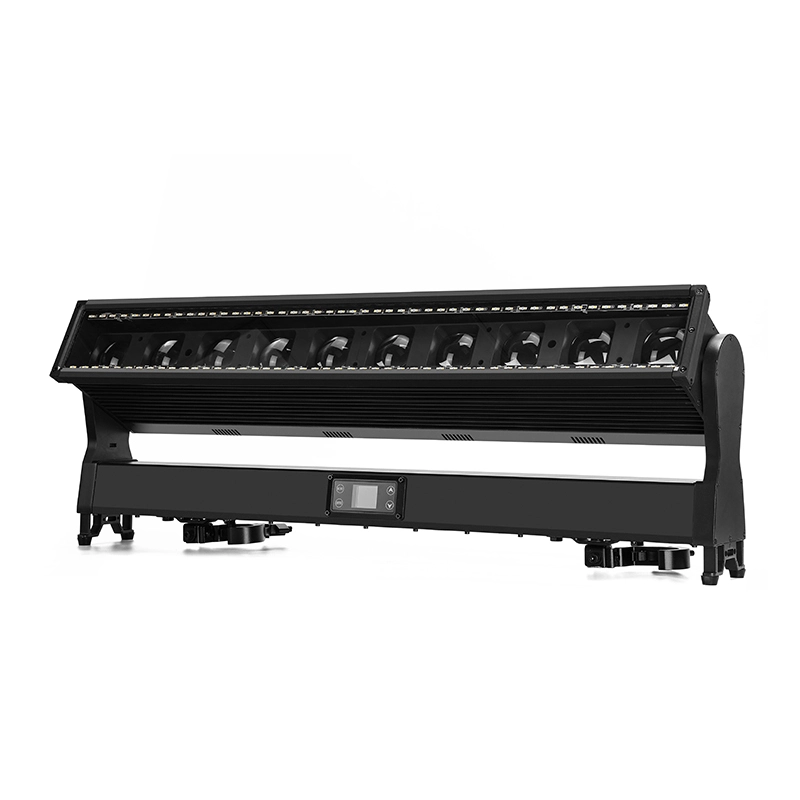

DIAMOND LINE 1060 IP

The DIAMOND LINE 1060 IP is an IP65-rated outdoor LED bar equipped with 10×60W RGBW 4-in-1 LEDs. It supports full pixel individual control for diverse dynamic lighting effects. Featuring adjustable zoom and smooth tilt movement, this fixture delivers flexible beam angle and angle adjustment.

Boasting quick, seamless connection design for easy array setup, its fully waterproof housing adapts to outdoor concerts, events and architectural lighting, bringing vivid, layered color displays in all weather conditions.

✦ 10*60W RGBW 4in1 LED

✦ Tilt movement

✦ With zoom

✦ Easy to joint

✦ Pixel control

• LIGHT SOURCE
• Main Light Section: 10*LEDs (RGBW 4in1) 60W
• Stripe Light Section:
• ·96x1W CW
• ·96x1W WW
• ·96x1W RGB
• 39000LUX@5M@minimum angle
• 50,000 hours life expectancy
• Color Temperature (range): 2500 to 9000K
• Individual LED Control
• Beam range: 4°-60°
• DYNAMIC EFFECT
• Tilt: 270 degree + fine
• Dimmer: Electronic
• Shutter/Strobe: Electronic, 0 to 30Hz
• ELECTRICAL AND CONTROL
• AC100 to 240V, 50/60 Hz (auto-ranging)

Power Consumption

850W

Control Protocol

DMX512/RDM, Optional Artnet

Channel

17/27/99/108/168(ACME SUPER DOTLINE Compatible)

Screen

1.77-inch color LCD display

Software upgrade

through DMX connection

Power connections

Seetronic PowerCON True1 IN/OUT

Data connections

Seetrpnic 3pin(or 5pin) DMX IN/OUT

BODY

Protection Level: IP65

Fixture Size

100*16.5*38cm

New Weight

24KG

Carton box 1in1

111*27*48cm/29KG

Flight case 2in1

117*42*61cm/74KG

WHAT'S INCLUDED

Diamond Line 1060 IP、(2) Omega bracketsS、Power cord、3-Pin DMX Cable、Safety Rope

OPTIONAL ACCESSORIES

Professional Folding Clamps、Power linking cables、Flight Case

PHOTOMETRICS

DIMENSIONS(MM)
