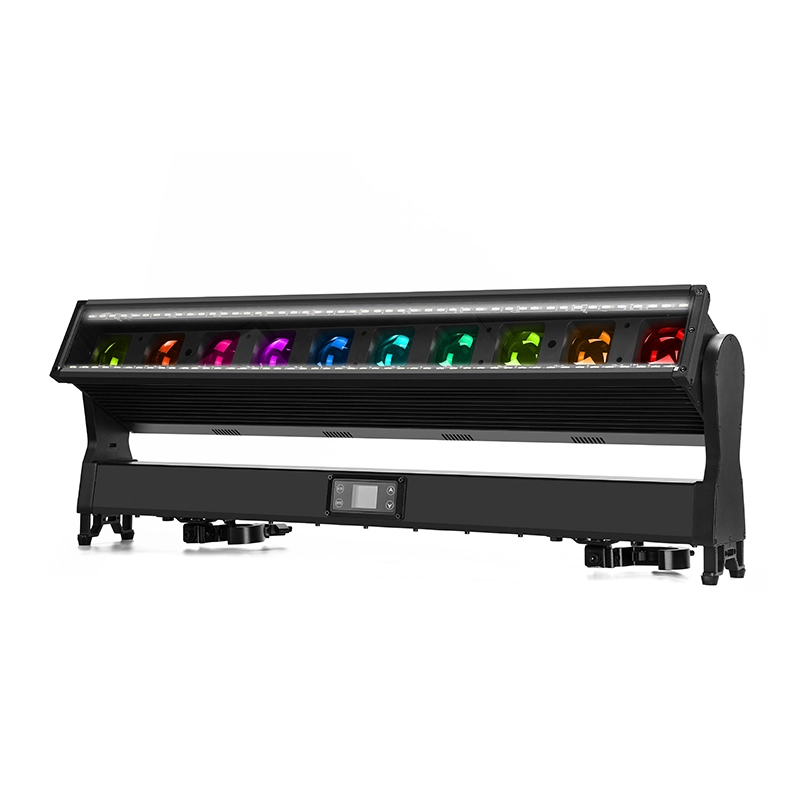

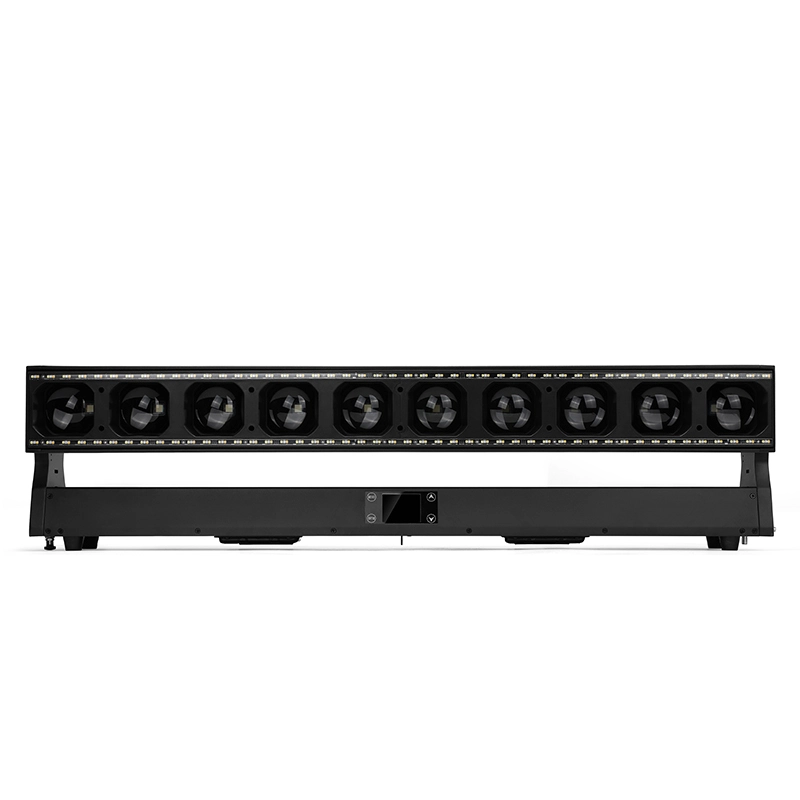

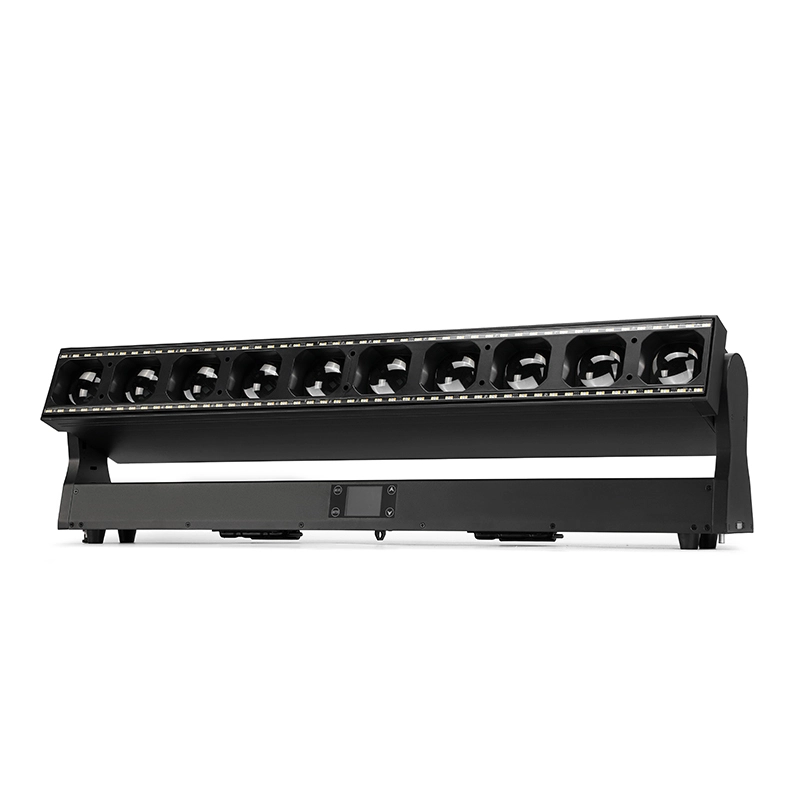

DIAMOND LINE 1060

The DIAMOND LINE 1060 is a versatile stage bar light fitted with 10‑piece 60W RGBW 4‑in‑1 LEDs. It integrates beam, wash and strobe effects with 270‑degree tilt plus fine‑tune adjustment. It features electronic dimming and an electronic shutter supporting 0‑30Hz strobe speed. Independent single‑LED control enables varied customized lighting patterns.

Designed for professional stages, concerts and event shows, this fixture brings flexible dynamic visual effects for your lighting projects.

✦ Light Source：10*60WRGBW4in1LED

✦ Beam Wash Strobe LED Batten with Tilt

✦ Dimmer: Electronic

✦ Individual LED Control

• LIGHT SOURCE
• Main Light Section: 10*LEDs (RGBW 4in1) 60W
• Stripe Light Section:
• ·96x1W CW
• ·96x1W WW
• ·96x1W RGB
• 39000LUX@5M@minimum angle
• 50,000 hours life expectancy
• Color Temperature (range): 2500 to 9000K
• Individual LED Control
• Beam range: 4°-60°
• DYNAMIC EFFECT
• Tilt: 270 degree + fine
• Dimmer: Electronic
• Shutter/Strobe: Electronic, 0 to 30Hz
• ELECTRICAL AND CONTROL
• AC100 to 240V, 50/60 HZ (auto-ranging)

Power Consumption

850W

Control Protocol

DMX512/RDM, Optional Artnet

Channel

17/27/99/108/168(ACME SUPER DOTLINE Compatible)

Screen

1.77-inch color LCD display

Software upgrade

through DMX connection

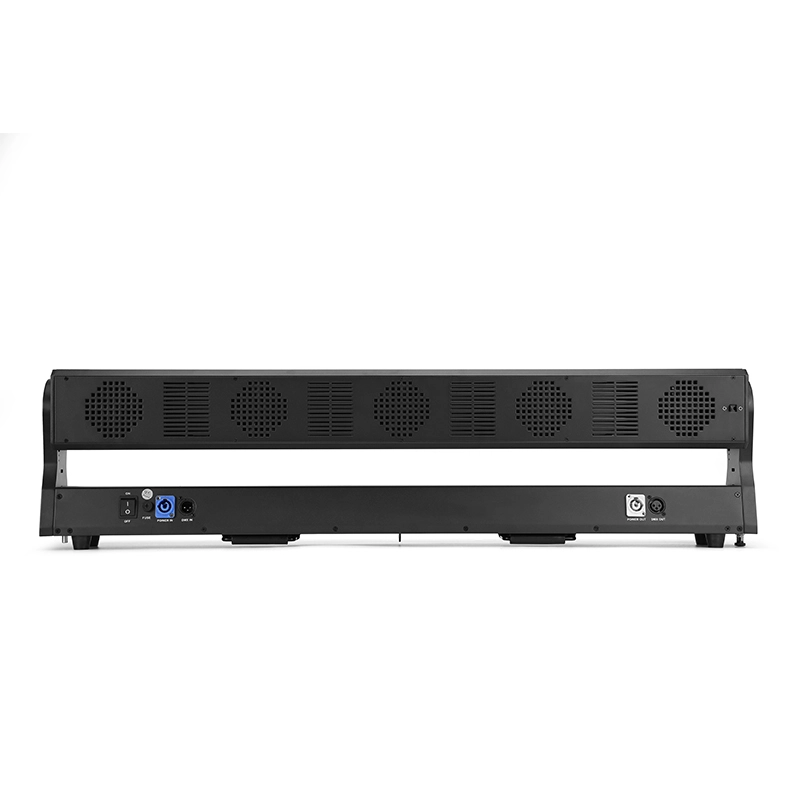

Power connections

PowerCON IN/OUT

Data connections

3pin(or 5pin) DMX IN/OUT

BODY

Protection Level: IP20

Fixture Size

100*11.5*29cm

New Weight

17KG

Carton box 1in1

105*20*36cm/18KG

Flight case 4in1

120*60*52cm/92KG

WHAT'S INCLUDED

Diamond Line 1060、(2) Omega bracketsS、Power cord、3-Pin DMX Cable、Safety Rope

OPTIONAL ACCESSORIES

Professional Folding Clamps、Power linking cables、Flight Case
