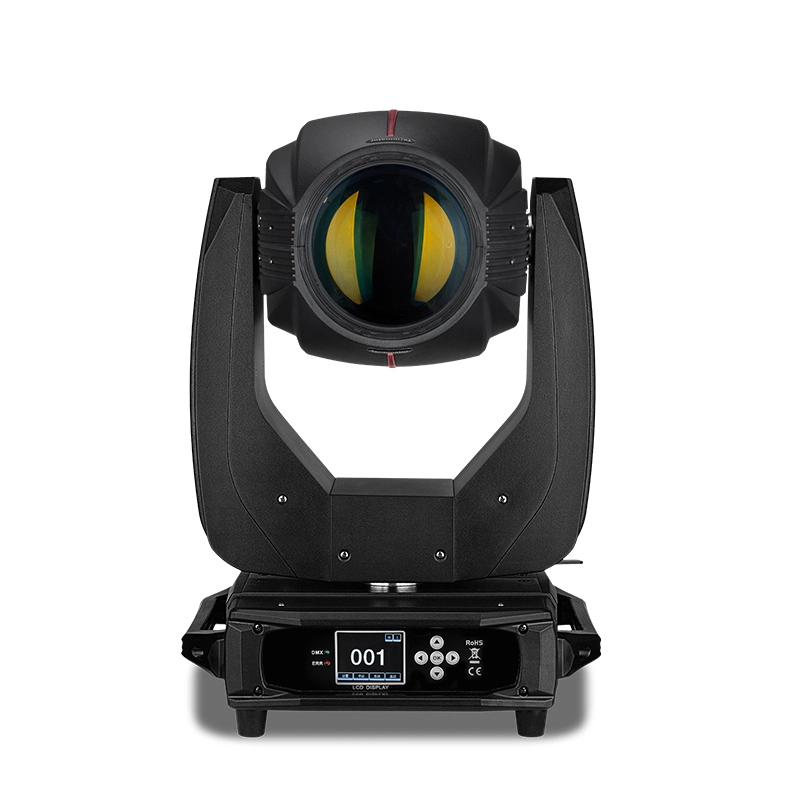

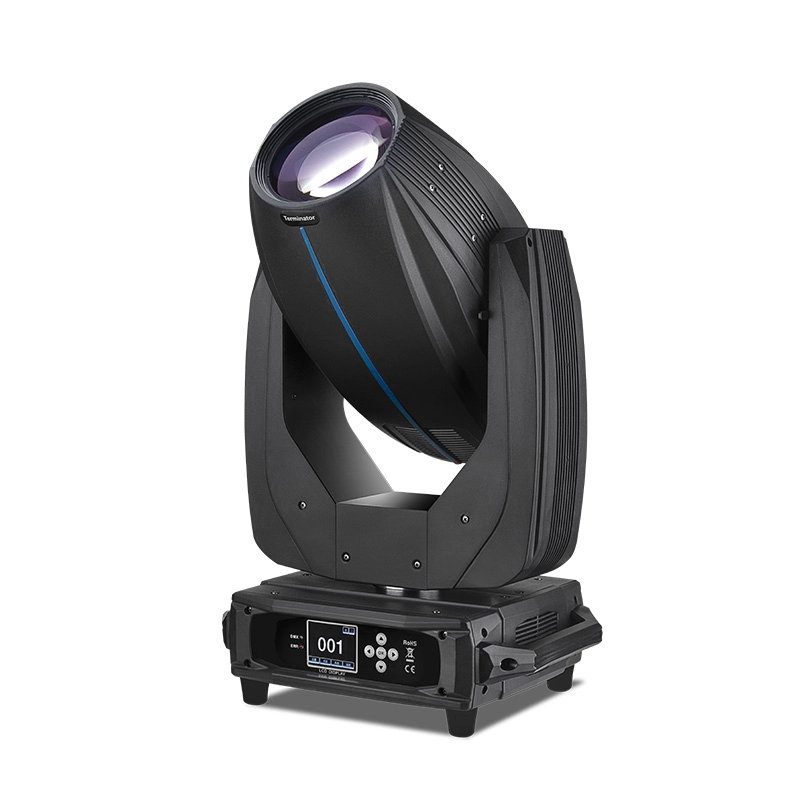

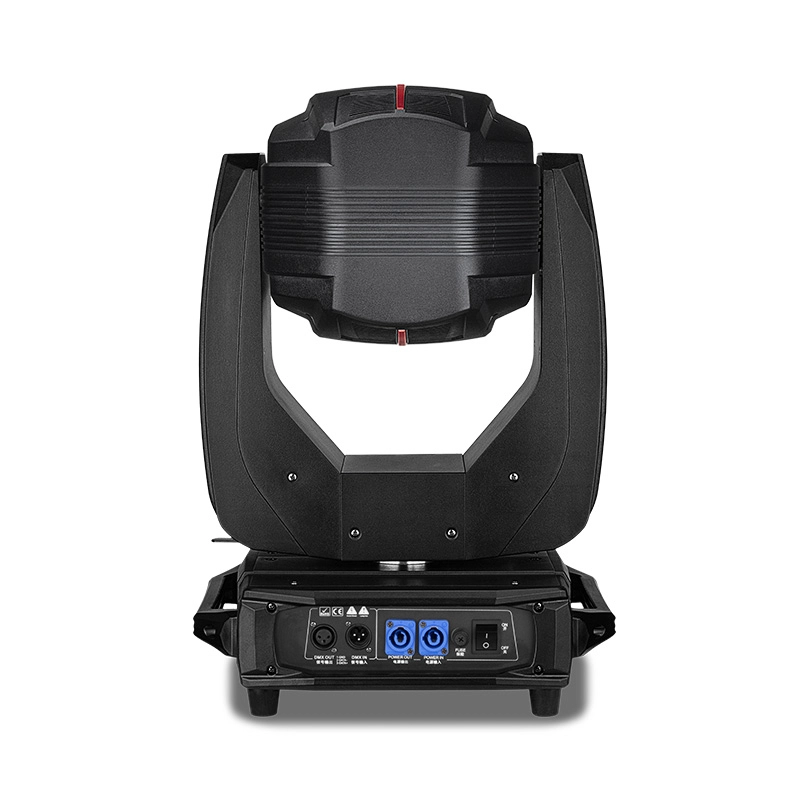

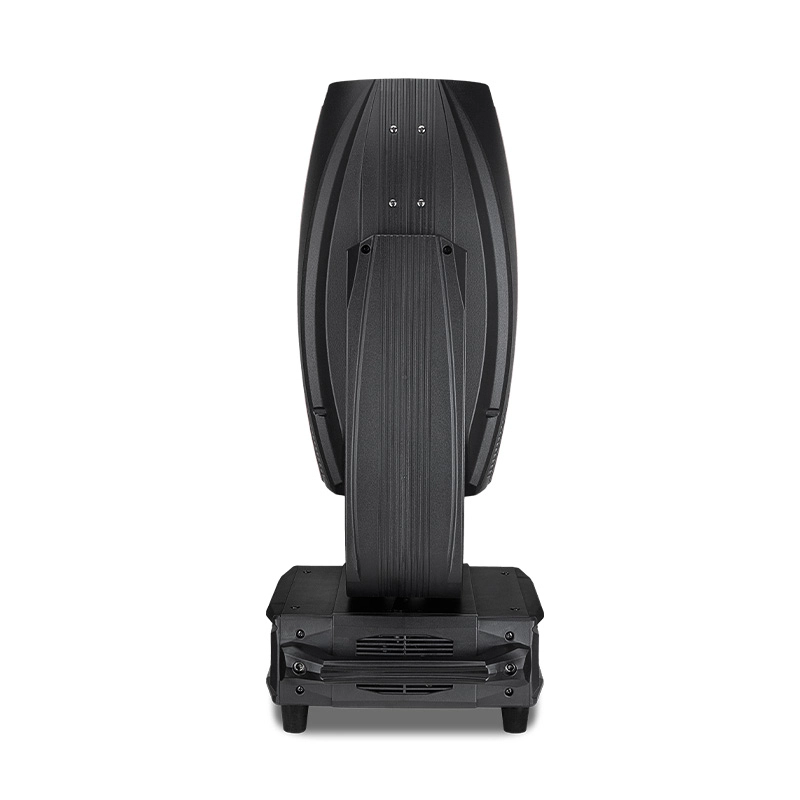

BSW 480 CMY

The BSW 480 CMY is create versatile layered stage lighting with the premium BSW 480 CMY, fitted with a reliable PHILIPS MSD Silver 420 LL lamp. It offers three variable zoom ranges for Beam, Spot and Wash modes. Linear CMY plus CTO mixing delivers seamless colour transitions. Multiple gobo wheels include static, animation and rotating glass gobos.

Stackable 8 and 16 prisms combine for a 24-facet effect, generating intricate dynamic light beams ideal for concerts, clubs and large live shows.

✦ PHILIPS MSD Silver 420 LL light source

✦ BEAM Angle： 2.1°～29° (BEAM MODEL)

2.2°～41.5° (SPOT MODEL) | 2.5°～31.6° (WASH MODEL) ✦ Linear CMY/CTO color mixing system

✦ Static gobo wheel

4 white lights +8 gobos

✦ Animation

white +3 gobos +3 circular arc dynamic effect pattern

✦ Rotating Gobos

White +7 glass gobos ✦ 8 prisms, 16 prisms (double prisms can be stacked 24)

• OPTIC
• Light source: PHILIPS MSD Silver 420 LL
• Consumed Power: 610W
• Light source life: Up to 4000 hours
• Color temperature: 6800K
• BODY & CONTROL
• Pan 540 degree, Tilt 270 degree, 16bit
• Channel mode: 24CH
• Powercon True1 XLR 3Pin in+out
• Net weight: 20.8KG Size: 395*293*675mm（L*W*H）
• EFFECTS
• Dimming system: 0-100% linear adjustment
• Focusing system: linear adjustment
• Frost: 1 independent frost filter, soft and natural light spot
• BEAM Angle：
• 2.1°～29° (BEAM MODEL)
• 2.2°～41.5° (SPOT MODEL)
• 2.5°～31.6° (WASH MODEL)
• Adjustable speed strobe effect
• Linear CTO color temperature adjustment: 2700K-7800K
• Fixed color disc 1: White + 5 colors
• Fixed color disc 2: White + 5 colors
• Linear CMY color mixing system
• Static gobo wheel: 4 white lights +8 gobos
• Animation: white +3 gobos +3 circular arc dynamic effect pattern
• Rotating Gobos: White +7 glass gobos
• Prisms: 8 prisms, 16 prisms (double prisms can be stacked 24)
• COLOR WHEEL
• CMY + CTO
• ANIMATION&FIXED GOBO WHEEL
• ROTATING GLASS GOBOS
• PHOTOMETRICS
• DIMENSIONS(MM)
