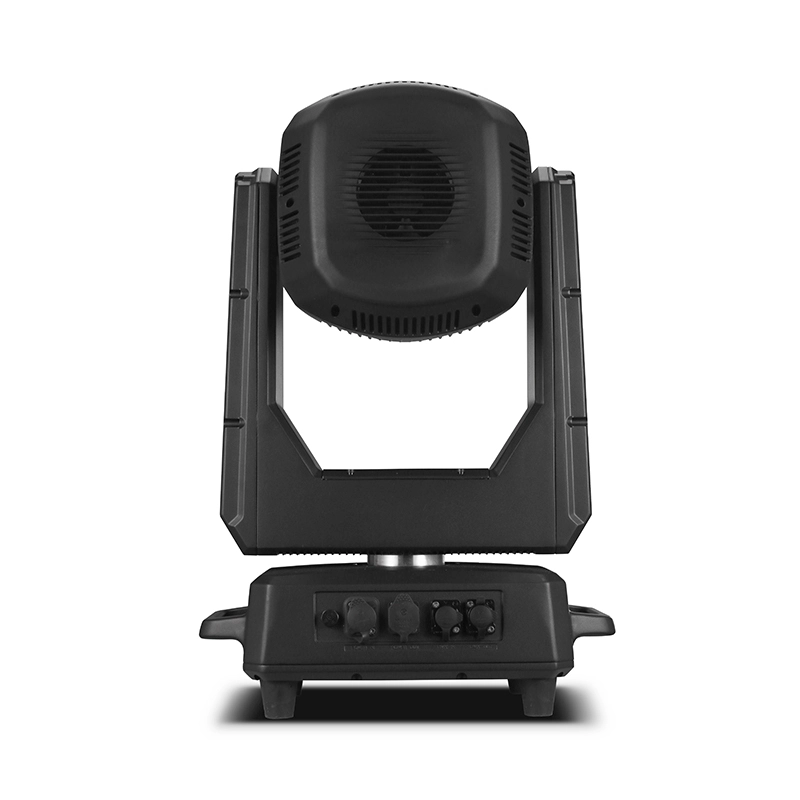

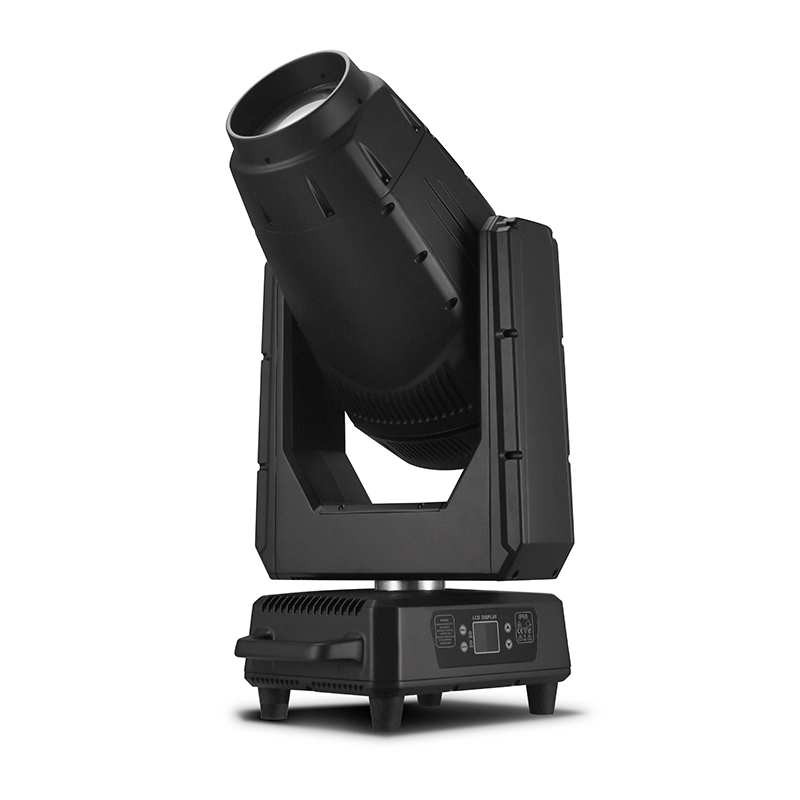

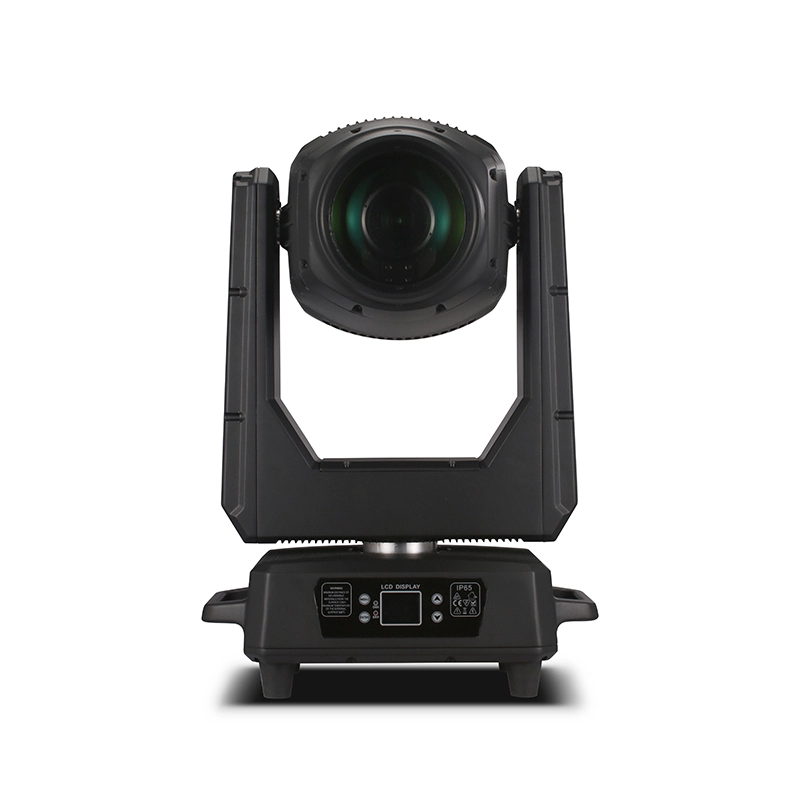

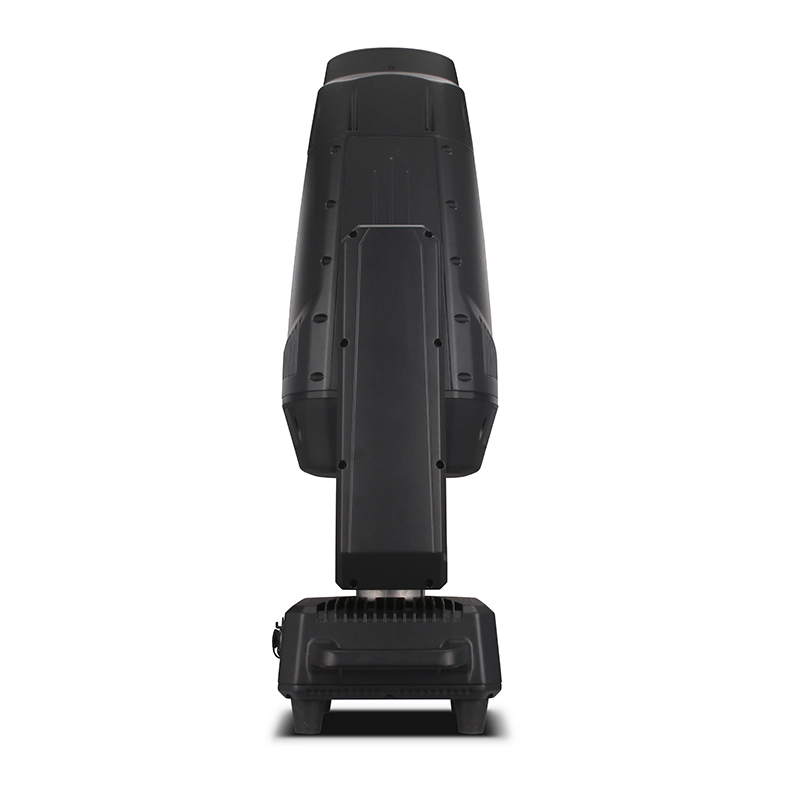

BSW 420M IP

The BSW 420M IP is achieve stunning high-brightness outdoor lighting effects effortlessly with the BSW 420M IP moving head. Equipped with a USHIO 420W bulb, its 138mm lens outputs 190,000Lux at 15m on 2° beam, paired with smooth 2°–40° zoom. Optional CMY mixing brings dual 14-color wheels, CTO and animation effects, plus 11 metal and 8 glass gobos with half-color functions.

Lightweight magnalium structure and IP66 high waterproof grade enable stable operation amid various outdoor performance scenarios.

✦USHIO 420W Bulb light source

✦190,000Lux@15M @2Degree

✦Lens: φ 138mm

✦2-40 degrees zoom angle

✦CMY Color mixing system optional

✦CTO/Animation effect available

✦11 fixed gobos+ open, 8 glass gobos + open

✦Color: 11 colors + open. Color half-color function

✦Color: 2 color wheels with 14 colors (CMY Version)

✦Magnalium material

✦Protection level: IP66

• POWER AND LIGHT SOURCE
• Light source: USHIO 420W Bulb
• Power consumption: 650W
• Average life: 4000 hours
• Color temperature: 7800K
• 190,000Lux@15M @2Degree
• Lens: φ 138mm
• BODY AND CONTROL
• Pan 540 degree, Tilt 270 degree, 16bit
• Channel mode: 18/22CH. 25CH(CMY Version)
• Body: Magnalium material
• Protection level: IP66
• Seetronic Powercon True1 3Pin XLR in+out
• Size: 415*240*766MM (L*W*H) Net weight: 24KG
• EFFECTS
• Dimming system: 0-100% linear adjustment
• Focusing system: linear adjustment
• Frost: 1 independent frost filter
• Zoom angle:2-40 degrees
• Adjustable speed strobe effect
• Color: 11 colors + open. Color half-color function
• Color: 2 color wheels with 14 colors (CMY Version)
• CTO: 3200K-7500K
• CMY Color mixing system(OPTIONAL)
• Fixed gobos: 11 fixed gobos+ open
• Rotating gobos: 8 glass gobos + open
• 8-facet + 6-facet prism, can be independently forward and reverse
• Animation effect
• COLORS + CTO
• CMY
• FIXED GOBOS + ANIMATION
• ROTATING GLASS GOBOS
• PHOTOMETRICS
• DIMENSIONS(MM)
