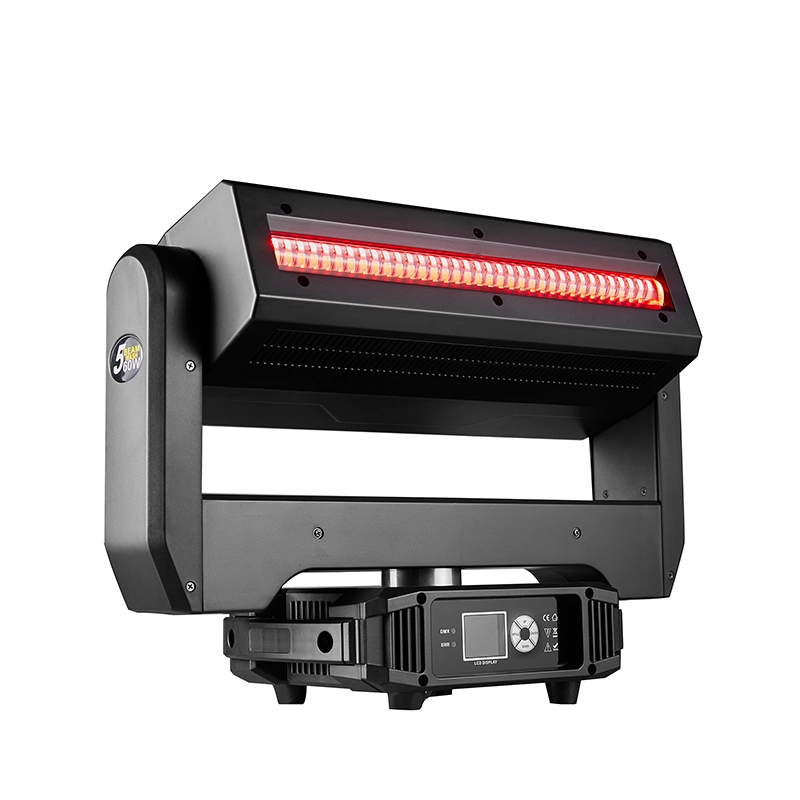

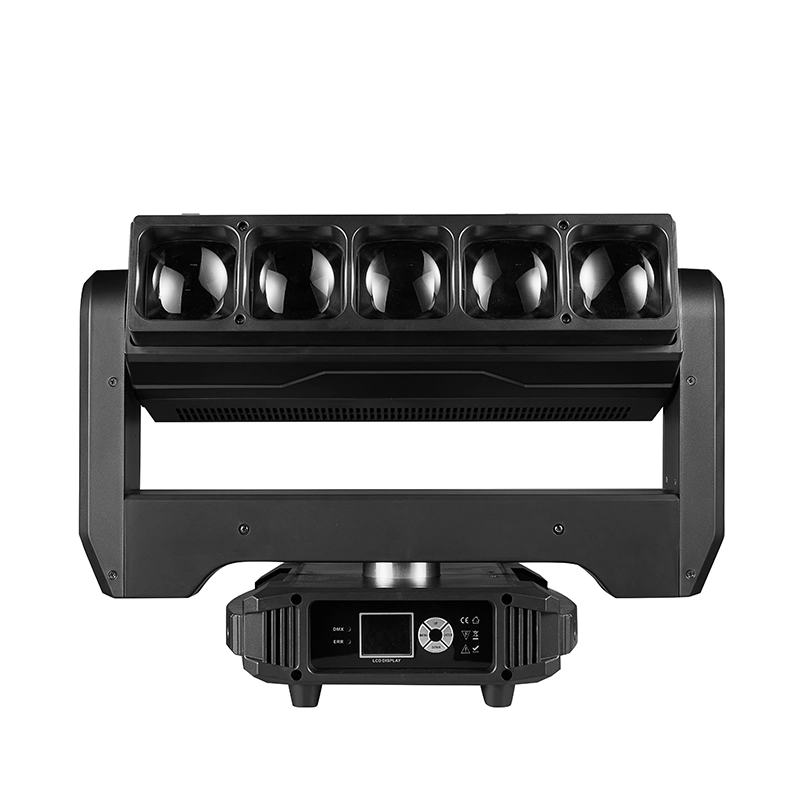

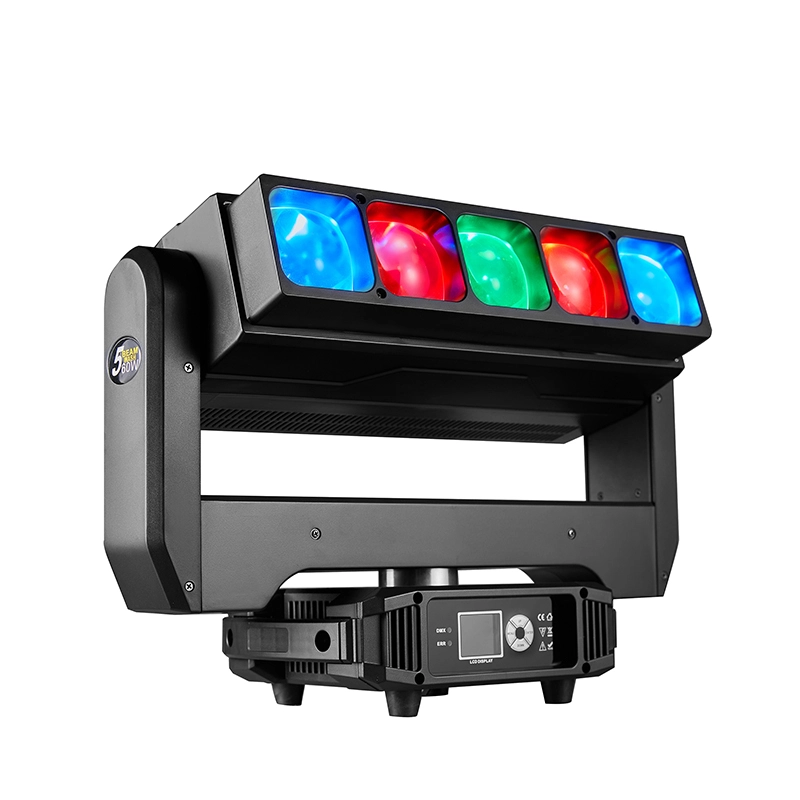

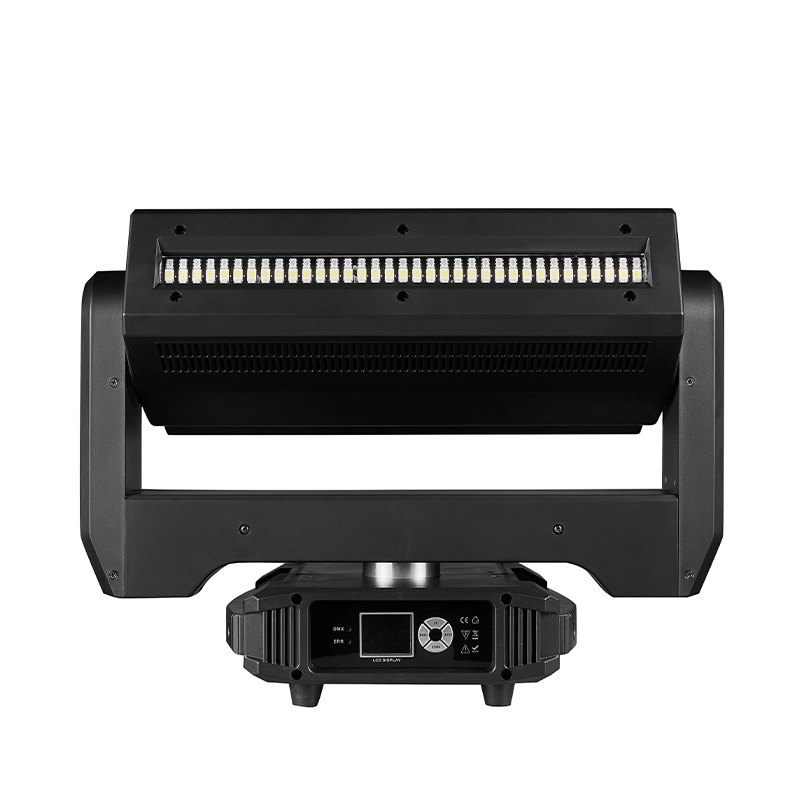

BLADE 2i ZOOM

The BLADE 2i ZOOM is an infinite-movement LED beam strobe light equipped with 5×60W RGBW light sources. It achieves continuous 360° infinite pan and tilt rotation with pan/tilt lock function available. The fixture supports smooth 0-100% dimming and impressive variable-speed strobe effects.

With rich dynamic lighting animations, it is a perfect lighting solution for live stages, clubs, concerts and various entertainment venues.

✦ Front side:5pcs 60W RGBW 4in1LED

✦ Back:42pcs 3W 3535 White LED + 84pcs 0.3W 5050 RGB 3in1 LED

✦ Back side:14 sections pixel control, each section gpcsled

✦ Zoom Angle:2.8°-50°

✦ Individual LED Control

• OPTIC
• Front side: 5pcs 60w RGBW 4in1 LED
• Back: 42pcs 3W 3535 White LED + 84pcs 0.3W 5050 RGB 3in1 LED
• Back side: 14 sections pixel control, each section 9pcs led
• Zoom Angle: 2.8°-50°
• Individual LED Control
• DYNAMIC EFFECT
• Pan/Tilt movement: 360°infinite rotating
• Fixation: Pan/Tilt Lock
• Smooth dimming from 0-100%
• Outstanding strobe effect with variable speed
• With zoom and strobe function
• Beam mode: 5 LEDs can be controlled individually
• Strobe mode: 18 zone can be controlled individually
• Linear motorized zoom
• Outstanding color mixing effect
• ELECTRICAL AND CONTROL
• AC100-240V~ 50/60Hz

Power Consumption

500W

DMX Channel

24/29/105 CH

Control Mode

DMX512,Auto

Display

LCD display

Software upgrade

through DMX connection

Power connections

PowerCON IN/OUT

Data connections

3pin(or 5pin) DMX IN/OUT

BODY

Protection Level: IP20

Fixture Size

506x215x385.6mm

New Weight

15KG

Carton box 1in1

61*47*31cm/17KG

Flight case 4in1

58*56*54cm/80KG

WHAT'S INCLUDED

Blade 2i Zoom、(2) Omega bracketsS、Power cord、3-Pin DMX Cable、Safety Rope

OPTIONAL ACCESSORIES

Professional Folding Clamps、Power linking cables、Flight Case

PHOTOMETRICS

DIMENSIONS(MM)
