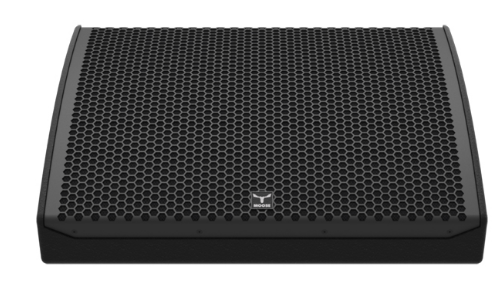

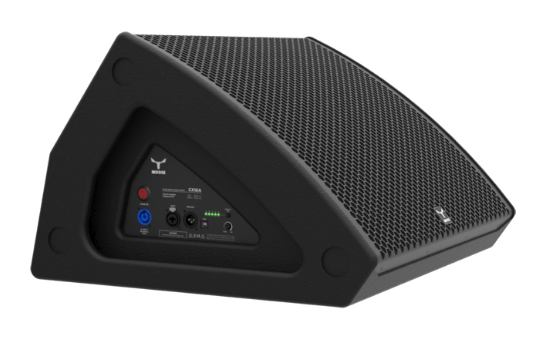

Moose Soul CX12A Active Stage Monitor 12''

CX12A

Key Features

• Professional coaxial stage monitor
• 2-way active version
• 12" LF (4in) + 2.9" HF voice coil European transducers
• Driven by a Class D, 2 channel amplifier with integrated DSP
• Universal 85-264Vac mains supply
• Faithful dynamic response and great range
• Prepared to fit a wallmount bracket (optional)
• Rugged and durable 15mm birch plywood construction
• Powder coated custom perforated steel grille

Tech Specs

TYPE

Coaxial stage monitor - active

ENCLOSURE DESIGN

Bass reflex

POWER OUTPUT (RMS)

400W / 80W (AES) 800W / 160W (Program) 1600W (Peak)

FREQUENCY RANGE

60Hz - 20kHz (-6dB)

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

12" coaxial EU transducer LF 4in VC + HF 2.9in VC

DISPERSION

80° Axisymmetrical

CROSSOVER FREQUENCY

Adjustable by fully programmable DSP, 4 presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

128dB @ 1m

AMPLIFIER TYPE

Class D

AMPLIFIER OUTPUT

800W + 400W (continuous) 1500W (continuous)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit, thermal, DC output and HF (amplifier)

CONSTRUCTION

15mm brich plywood, textured polyurea coating

GRILLE

Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet 2 side handles Wallmount bracket (optional)

DIMENSIONS (WXDXH)

500x425x325mm 19.69x16.73x12.80in

WEIGHT

28Kg 61.73lb
