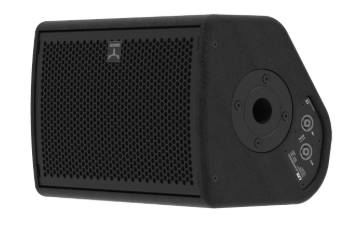

Moose Soul C8R Multi Speaker 8''

C8R

Key Features

• Professional coaxial stage monitor
• 35° & 60° monitor angle enclosure
• 2-way passive version
• 8" LF (2.56in VC) + 1.46" HF voice coil EU transducers
• Faithful dynamic response and great range
• Connector plate with 2x Speakon NL4, parallel-connected
• Prepared to fit a wallmount bracket (WBCX8 - optional)
• Rugged and durable 15mm birch plywood construction
• Powder coated custom perforated steel grille

TYPE

Coaxial multi speaker/ monitor passive

ENCLOSURE DESIGN

Bass reflex

POWER OUTPUT (RMS)

100W

FREQUENCY RANGE

60Hz - 20kHz (-6dB)

NOMINAL IMPEDANCE

8 Ohm

TRANSDUCER TYPE

8" coaxial EU transducer LF 2.56in VC + HF 1.46in VC

DISPERSION

90° Axisymmetrical

CROSSOVER FREQUENCY

1300Hz

MAX. SPL (PEAK)

128dB @ 1m

DIMENSIONS (WXDXH)

400x320x260mm 15.75x12.60x12.24in

WEIGHT

8Kg
