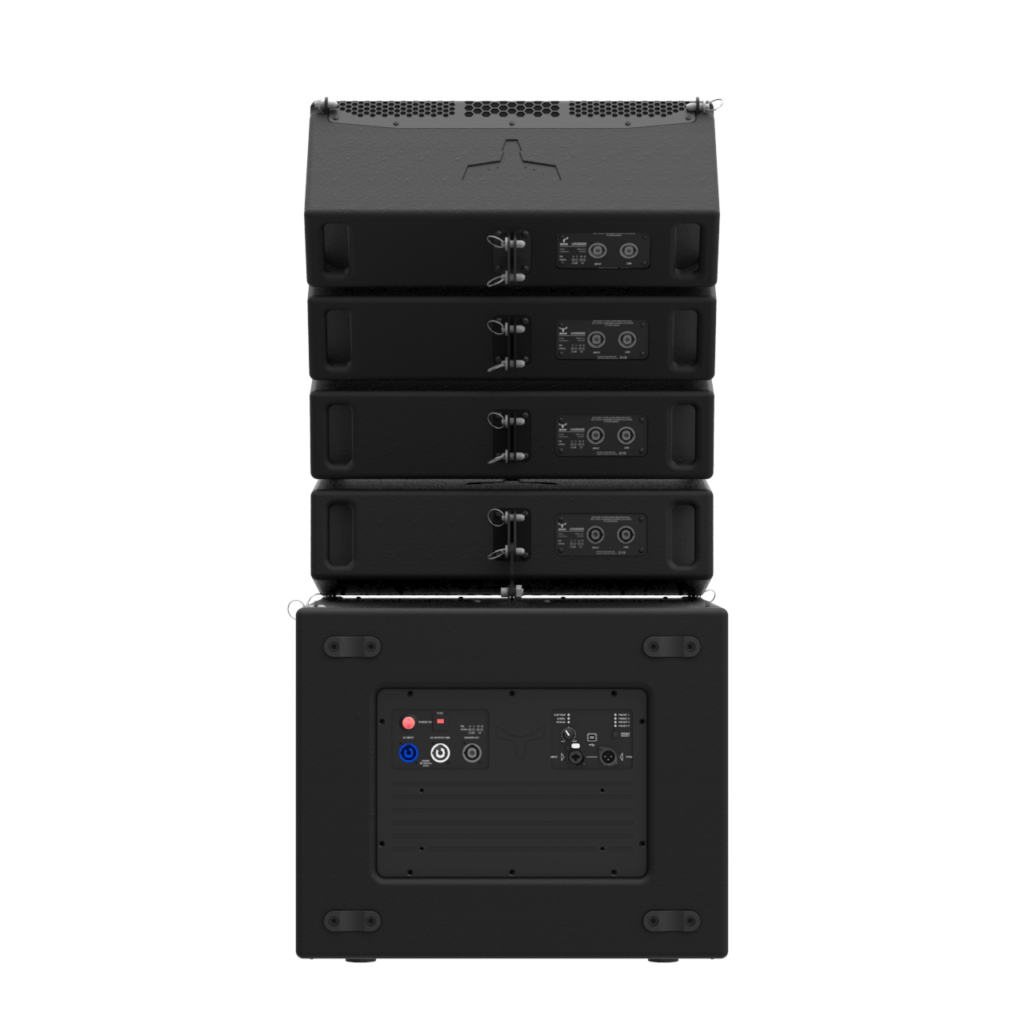

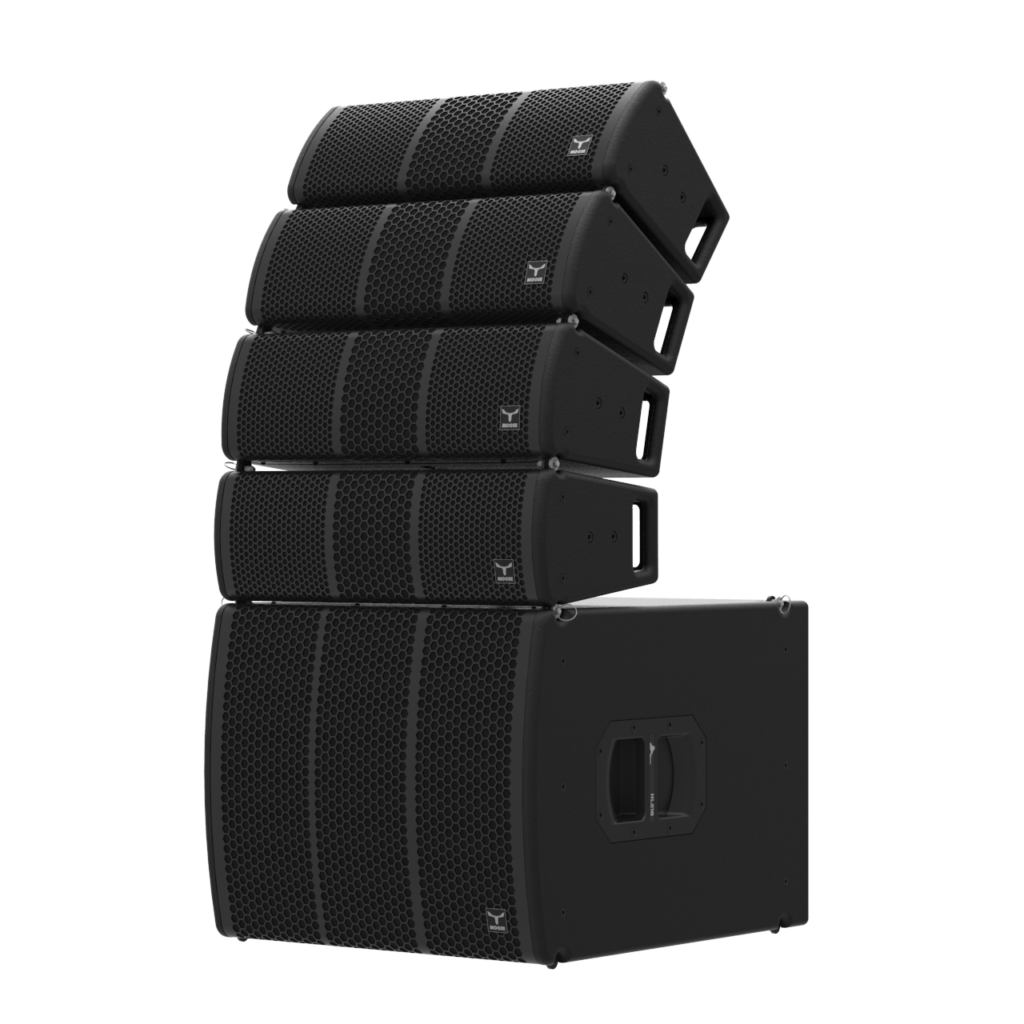

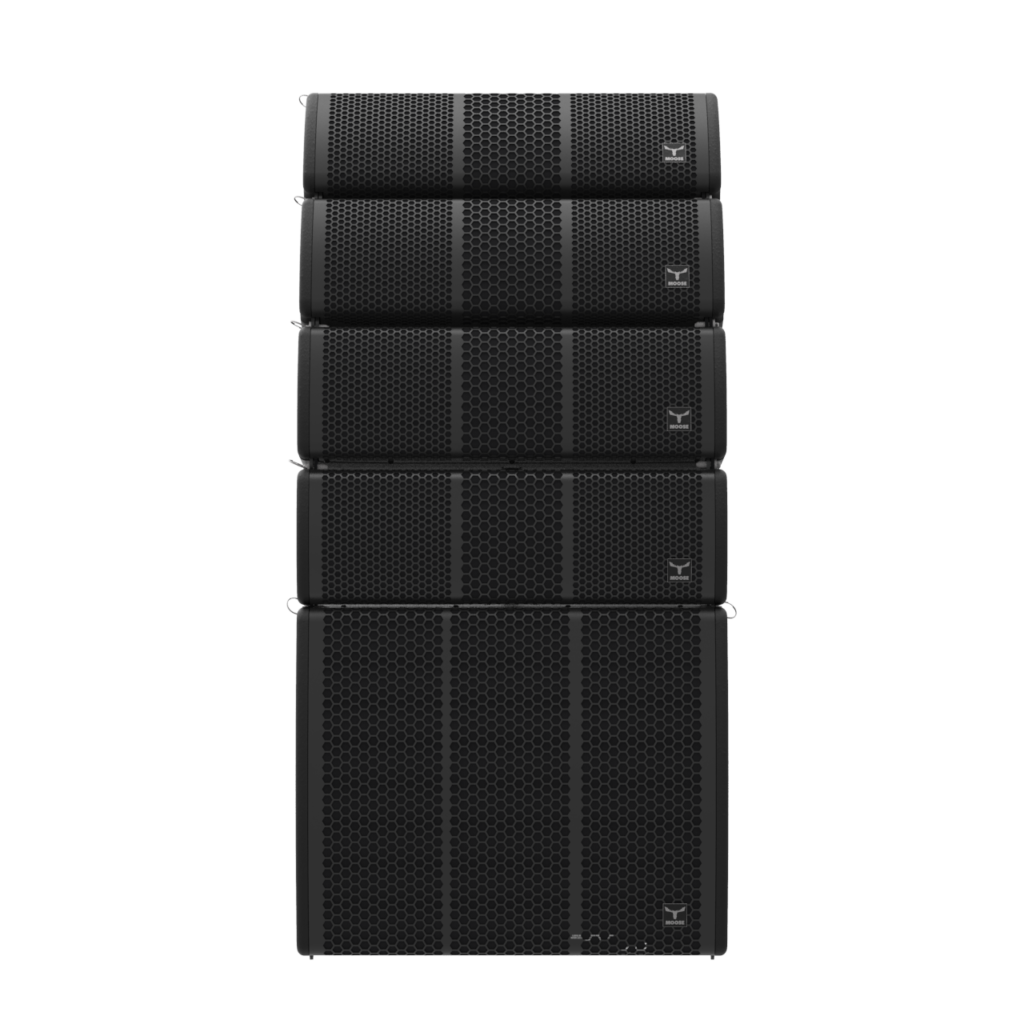

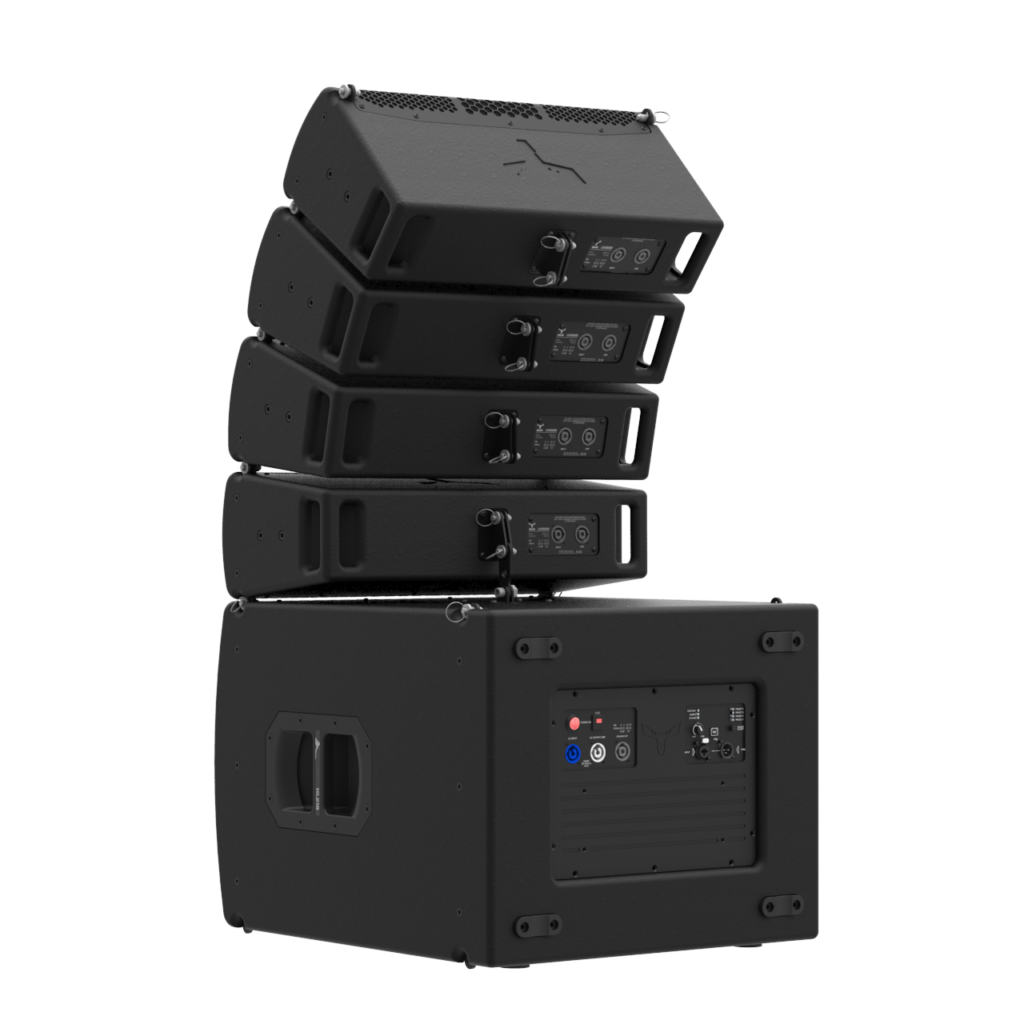

Moose Loud + System 2 Active Sub +8 Tops

LOUD+ SYSTEM

Key Features

• Compact self-powered line array system
• Each system compromises 2 active subs + 8 passive tops (L&R setup)
• Suited for small and medium size venues
• 15" (4in VC) LF active subwoofers
• 2x 5" (1.26in VC) MF + 1" (0.98in VC) HF passive satellites
• Subwoofers driven by a 2ch Class D amplifier
• Built-in DSP with 4 selectable presets
• Universal 85-264Vac mains supply

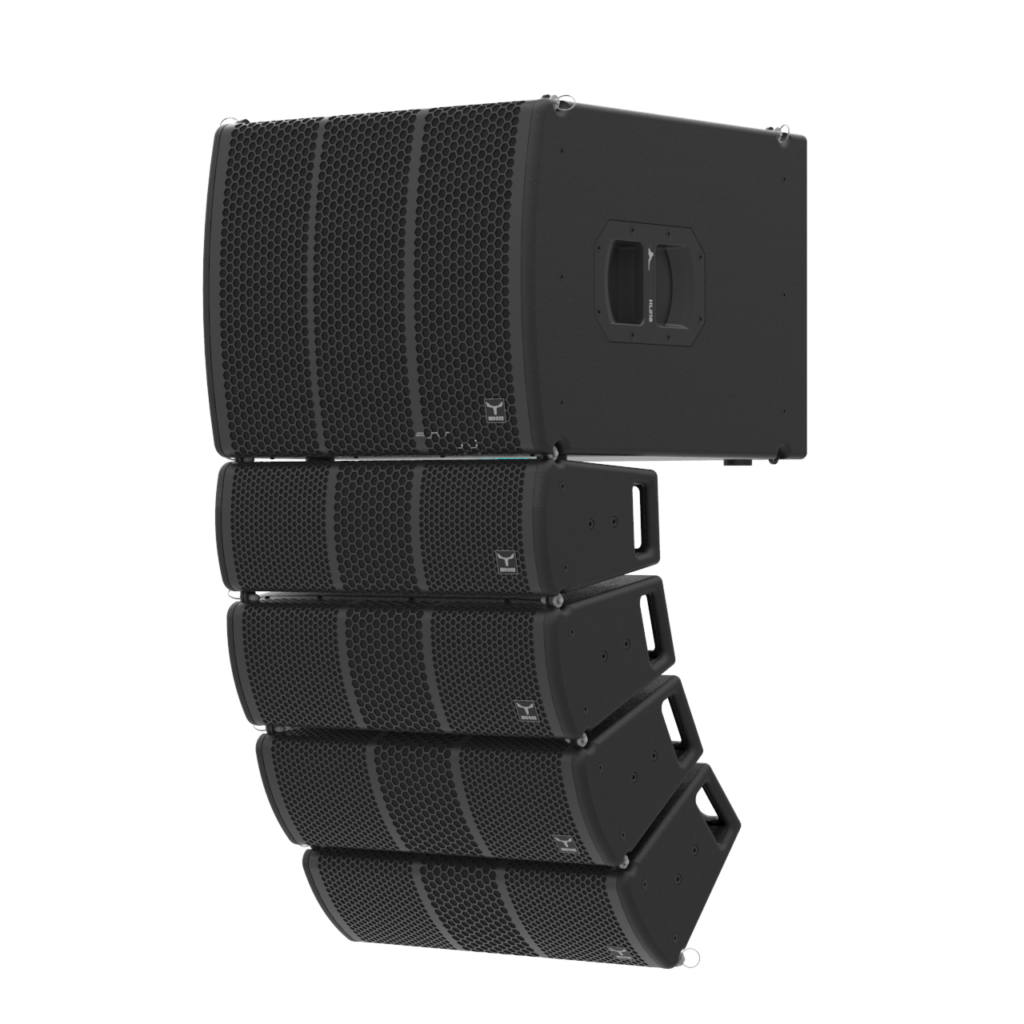

• Prepared for ground stacking and flown configurations
• Rugged and durable polyurea coating

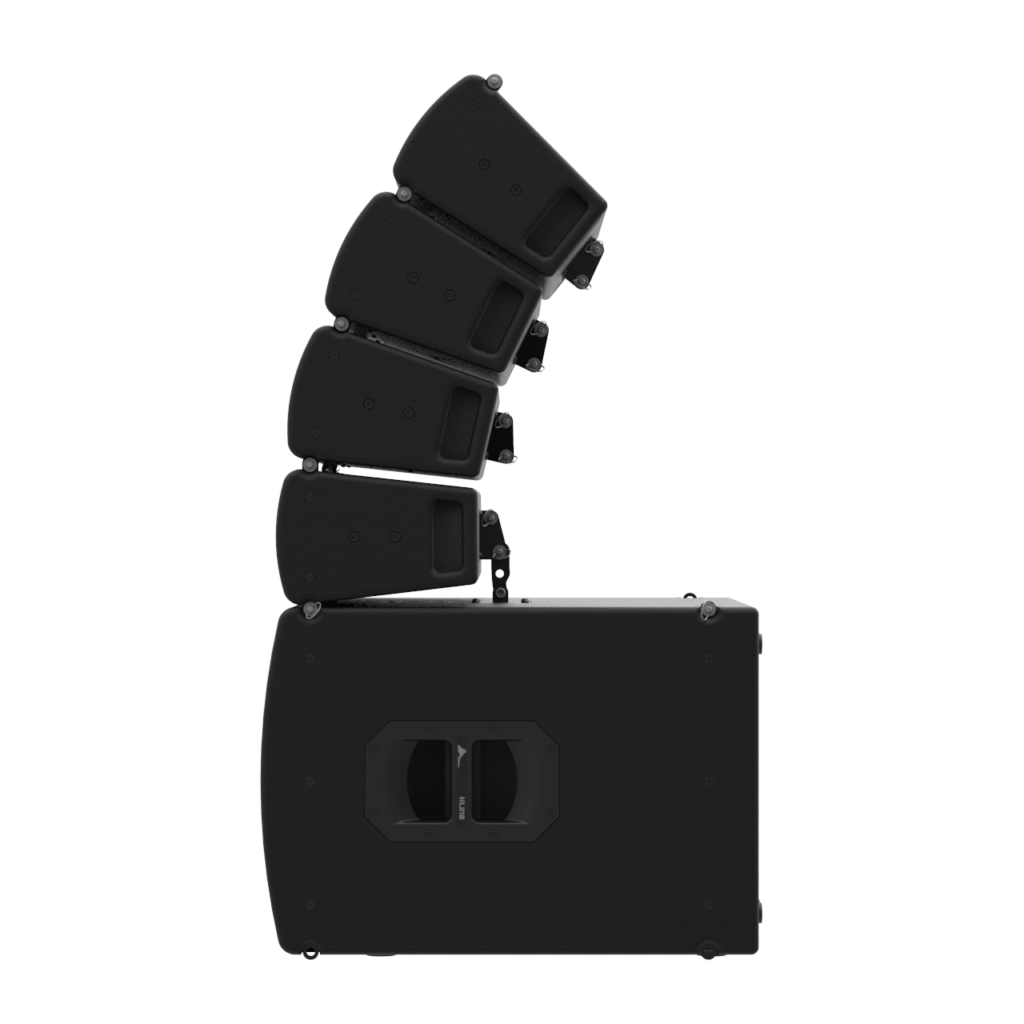

• Great flexibility in shaping array curvature

Tech Specs

TYPE

Active Line array system

ENCLOSURE DESIGN

Bass reflex [LOUD15+] Trapezoidal array element [LOUD205+]

POWER OUTPUT (RMS)

1000W /1400W [LOUD15+] 200W / 380W [LOUD205+]

FREQUENCY RANGE

40Hz - 19kHz (-6dB)

TRANSDUCER TYPE

15" (4in VC) LF EU transducer [LOUD15+] 2x 5" (1.26in VC) MF rubber surround [LOUD205+] 1" (0.98in VC) HF EU transducers [LOUD205+]

DISPERSION

5° vertical 120° horizontal Array splay dependant vertical coverage

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

132dB @ 1m [LOUD15+] 118dB @ 1m [LOUD205+]

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous) 2000W (peak)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue)/Power-out (grey)

PROTECTION

Over current, short circuit, thermal, DC and HF protections

CONSTRUCTION

15mm birch plywood, textured polyurea coating [LOUD15+] 15mm birch plywood, textured polyurea coating [LOUD205+]

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

Integrated steel rigging flyware Splay angle adjustable, 12.5° (2.5° increments) [LOUD205+] Metal frames for flown and ground stacking available Metal frame for pole mounting available (FS-LOUD205+)

DIMENSIONS (WXDXH)

530x615x430mm / 20.87x24.21x16.93in [LOUD15+] 530x250x170mm / 20.87x9.84x6.69in [LOUD205+]

WEIGHT

36.5Kg / 80.47lb [LOUD15+] 8.5Kg / 18.74lb [LOUD205+]
