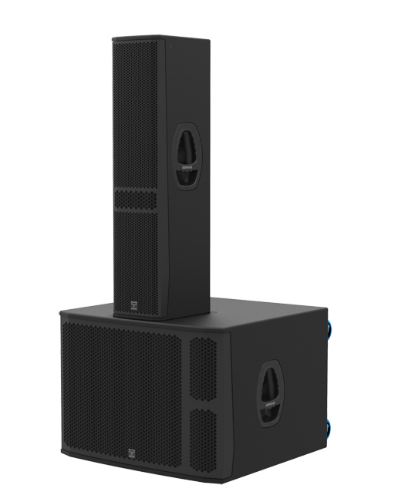

LANE 3200 Aktif Column PA Sistemi DSP, 18'' Subwoofer 1200W RMS / 4800W Peak 136dB + 4x6'' Column 500W RMS / 1200W Peak 129dB — görsel 1

Moose Sound

LANE 3200 Aktif Column PA Sistemi DSP, 18'' Subwoofer 1200W RMS / 4800W Peak 136dB + 4x6'' Column 500W RMS / 1200W Peak 129dB

Ses SistemleriColumn Array SistemleriAktif HoparlörlerKod: LANE 3200

€10.707

₺594.025

KDV hariç

WhatsApp’tan Bilgi Al
Adet
Listeyi aç

LANE 3200 Aktif Column PA Sistemi DSP, 18'' Subwoofer 1200W RMS / 4800W Peak 136dB + 4x6'' Column 500W RMS / 1200W Peak 129dB

Ürün açıklaması

Key Features

  • Active and dynamic “all-in-one” column PA system
  • Powerful, accurate and compact set
  • 18'' (4in VC) extended LF active subwoofer
  • 4x 6'' (1.46in VC) MF + 1.4'' (2.56in VC) HF passive column speaker
  • Subwoofer driven by a 2-channel Class D amplifier
  • Fully programmable DSP with selectable presets (4)
  • Universal 85-264Vac mains, all electronic protections
  • Ø35mm pole mount socket on both elements
  • Rugged and durable 18/15mm birch plywood with polyurea coating

Tech Specs

TYPE
Active column PA system
ENCLOSURE DESIGN
Bass reflex subwoofer [LANE18] Bass reflex column [LANE T406]
POWER OUTPUT (RMS)
1200W / 4800W (RMS/Peak) [LANE18] 500W / 1200W (RMS/Peak) [LANE T406]
FREQUENCY RANGE
38Hz - 180Hz 110Hz - 20kHz
TRANSDUCER TYPE
18'' (4in VC) LF [LANE 18] 4x 6'' (1.46in VC) MF + 1.4'' (2.56in VC) NEO [LANE T406] European transducers
DISPERSION
100°x25° (HxV)
CROSSOVER FREQUENCY
DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter
MAX. SPL (PEAK)
136dB @ 1m [LANE18] 129dB @ 1m [LANE T406]
AMPLIFIER TYPE
Class D, 2 channel amplifier
AMPLIFIER OUTPUT
1600W + 1600W (continuous) (expandable system)
INPUT
XLR/jack combo connector
OUTPUT
XLR/M 3p
INDICATORS
Power, signal/preset, clip
CONTROLS
Master level control, 4 selectable presets
FEATURE
Cooling by convection
AC POWER SUPPLY
Switching power supply, universal 85-264Vac
AC MAINS CONNECTOR
Neutrik® powerCON, Power-in (blue)/Power-out (grey)
PROTECTION
Over current, short circuit, thermal, DC and HF protections
CONSTRUCTION
15mm birch plywood, textured polyurea coating [LANE15] Extruded aluminium profile w/ black powder coating [LANE T803]
GRILLE
Custom perforated metal grille with acoustic foam
INSTALLATION / RIGGING / FLYING

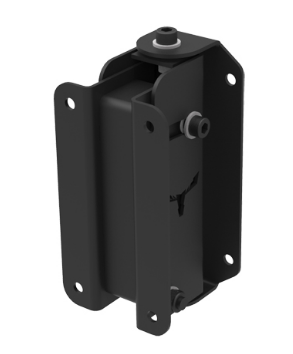

Ø35mm pole mount socket on both speakers 3x M10 inserts for rigging [LANE T406] Wall mount support (WSL) for LANE T406
DIMENSIONS (WXDXH)
745x720x555mm / 29.33x28.35x21.85in [LANE18] 220x310x995mm / 8.66x12.20x39.17in [LANE T406]
WEIGHT
59Kg / 130.07 [LANE18] 28Kg / 61.73lb [LANE T406]
