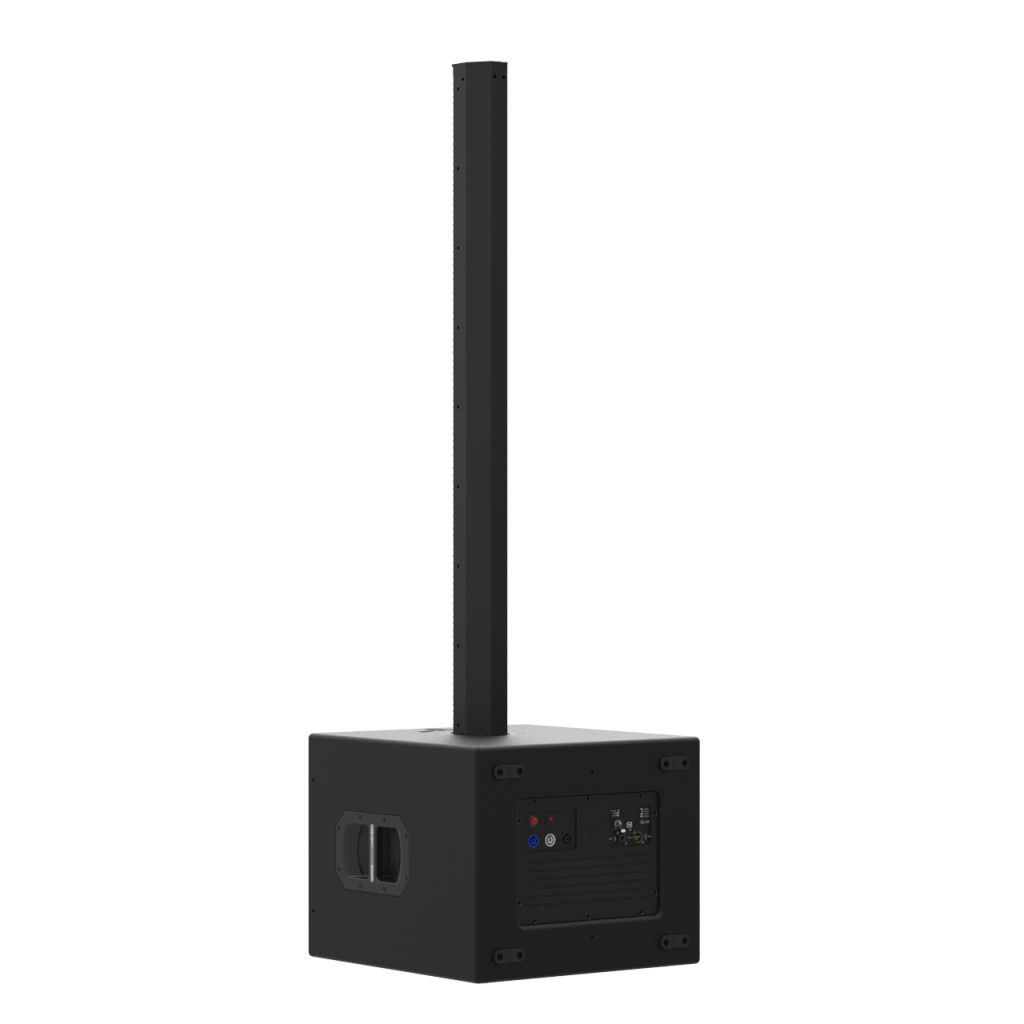

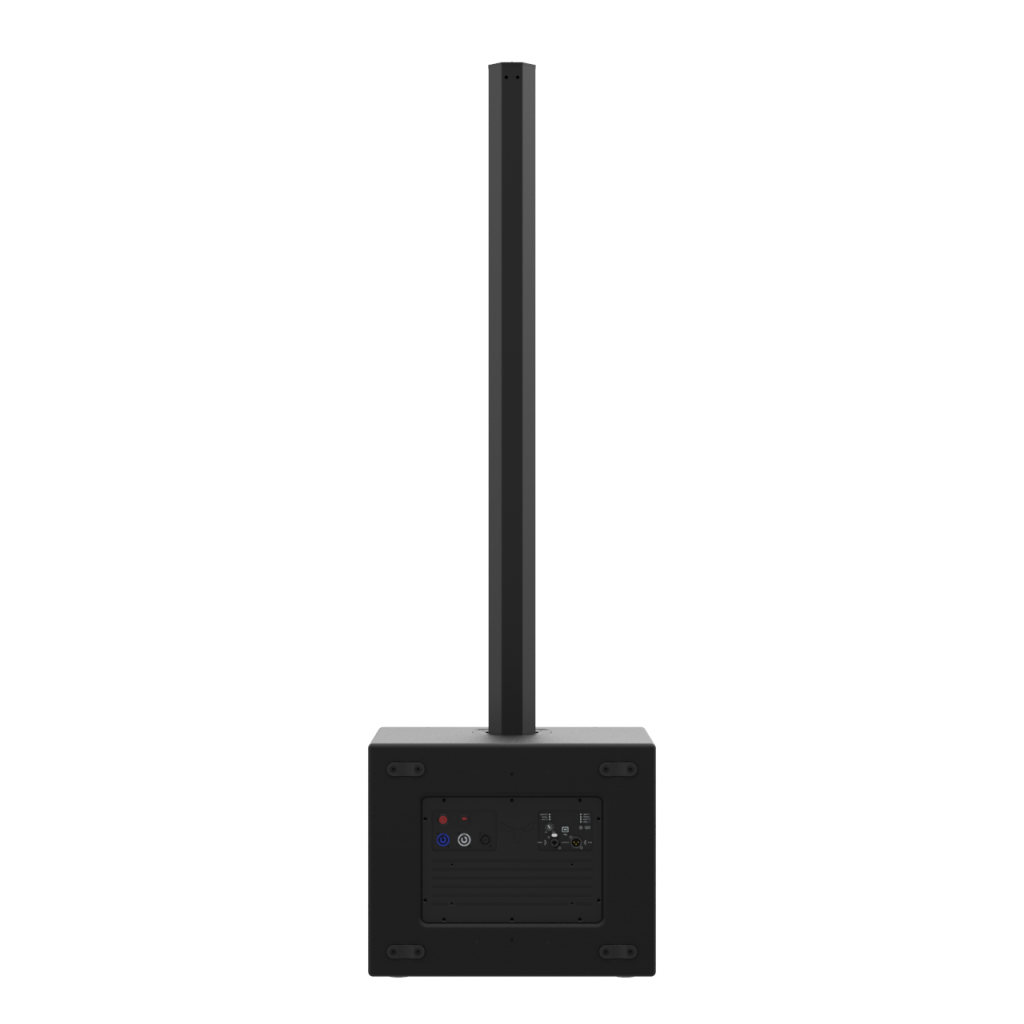

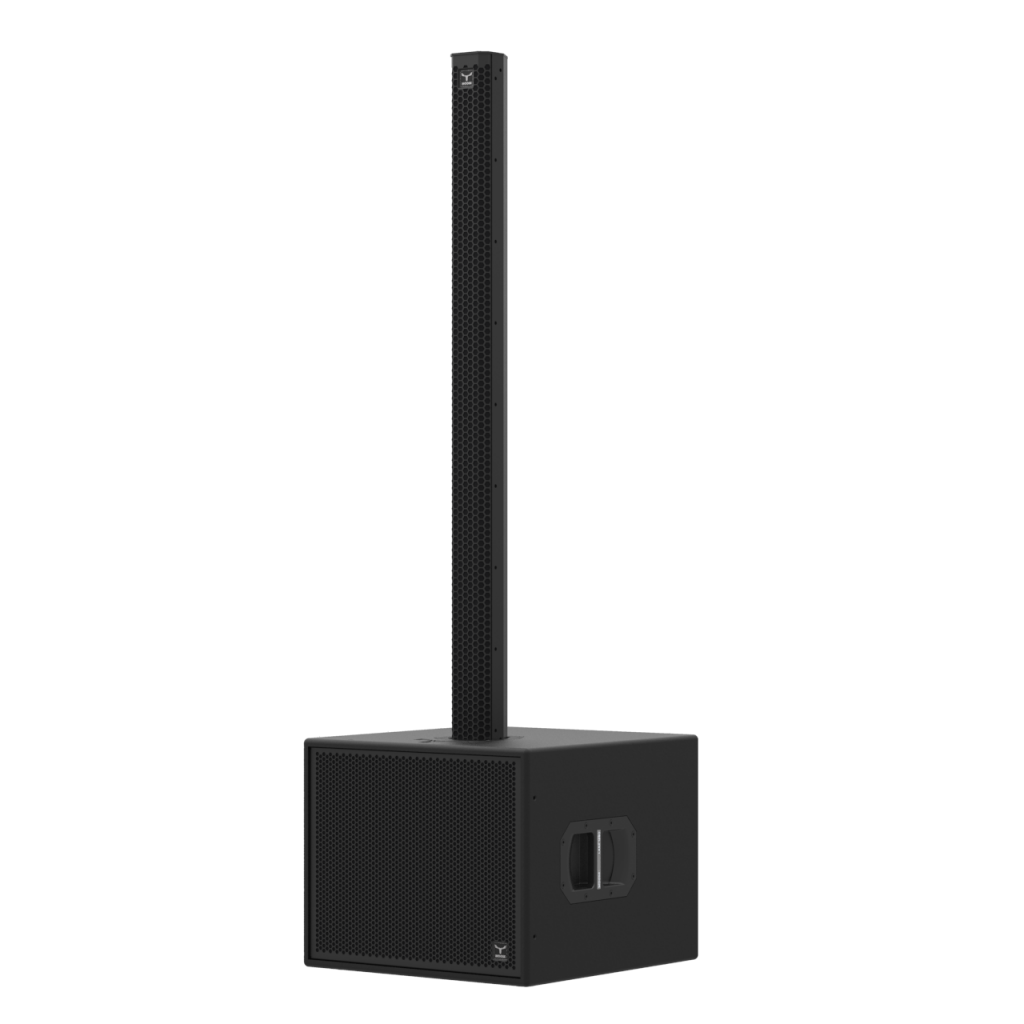

Moose Lane 1400+

Active “all-in-one” column PA system

Great coverage and well-balanced sound distribution

15" (4in VC) LF active subwoofer

8x 3" (0.75in VC) + 1" (0.98in VC) passive column speaker

Driven by a 2-channel Class D power amplifier

Fully programmable DSP with selectable presets (4)

Universal 85-264Vac mains for the active versions

Multi-pin connector to minimize setup time

LANE15+ prepared to fit a Pull-out Trolley handle (3472)

Rugged and durable 15mm birch plywood with polyurea coating

Tech Specs

TYPE

Active column PA system

ENCLOSURE DESIGN

Bass reflex [LANE15+] Column sealed [LANE T803]

POWER OUTPUT (RMS)

1000W / 1400W [LANE15+] 200W / 350W [LANE T803]

FREQUENCY RANGE

40Hz - 180Hz [LANE15] 85Hz - 20kHz [LANE T803]

TRANSDUCER TYPE

15" (4in VC) LF EU transducer [LANE15+] 8x 3" (0.75in VC) MF [LANE T803] 1" (0.98in VC) HF EU transducer [LANE T803]

DISPERSION

120° horizontal (average)

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

132dB @ 1m (system)

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous) 1600W (peak)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, universal 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue)/Power-out (grey)

PROTECTION

Over current, short circuit, thermal, DC and HF protections

CONSTRUCTION

15mm birch plywood, textured polyurea coating [LANE15] Extruded aluminium profile w/ black powder coating [LANE T803]

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet on the back of LANE15+ to protect the amp Plug-and-play column fitting Custom multi-pin connector for T803 Height extender available (500mm) LANE15+ prepared to fit a Pull-out Trolley handle (3472)

DIMENSIONS (WXDXH)

530x550x430mm / 20.87x21.65x16.93in [LANE15+] 107x95x1320mm / 4.21x3.74x51.97in [LANE T803]

WEIGHT

33Kg / 72.8lb [LANE15+] 8Kg / 17.6lb [LANE T803]
