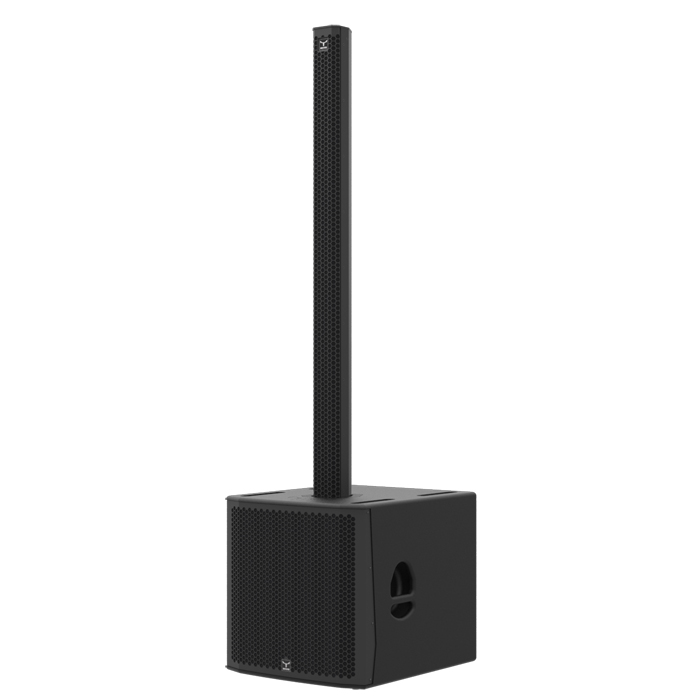

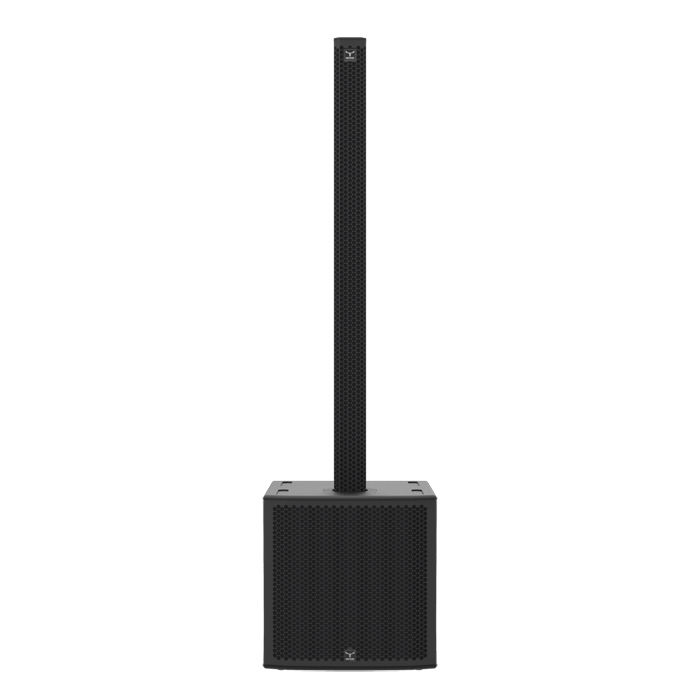

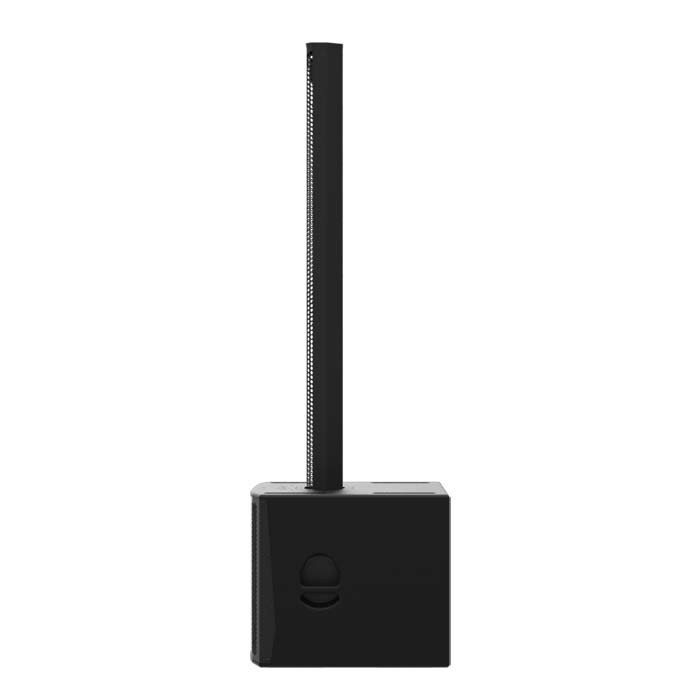

Moose Lane 1400

Active “all-in-one” column PA system

Great coverage and well-balanced sound distribution

15" LF (4in) active subwoofer 1400W Rms D class

8x 3" + 1" passive column speaker

Driven by a Class D power amplifier

Fully programmable DSP (5 presets)

Universal 85-264Vac mains for the active versions

Multi-pin connector to minimize setup time

Rugged and durable 15mm birch plywood with polyurea coating

Tech Specs

TYPE

Active column PA system

ENCLOSURE DESIGN

Bass reflex [LANE15] Column sealed [LANE T803]

POWER OUTPUT (RMS)

700W / 1200W [LANE15] 200W / 350W [LANE T803]

FREQUENCY RANGE

50Hz - 180Hz [LANE15] 85Hz - 20kHz [LANE T803]

TRANSDUCER TYPE

15" (3in VC) LF EU transducer [LANE 15] 8x 3" (0.75in VC) MF [LANE T803] 1" (0.98in VC) HF EU transducer [LANE T803]

DISPERSION

120° horizontal (average)

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

129dB @ 1m (system)

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous) 1600W (peak)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, universal 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue)/Power-out (grey)

PROTECTION

Over current, short circuit, thermal, DC and HF protections

CONSTRUCTION

15mm birch plywood, textured polyurea coating [LANE15] Extruded aluminium profile w/ black powder coating [LANE T803]

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

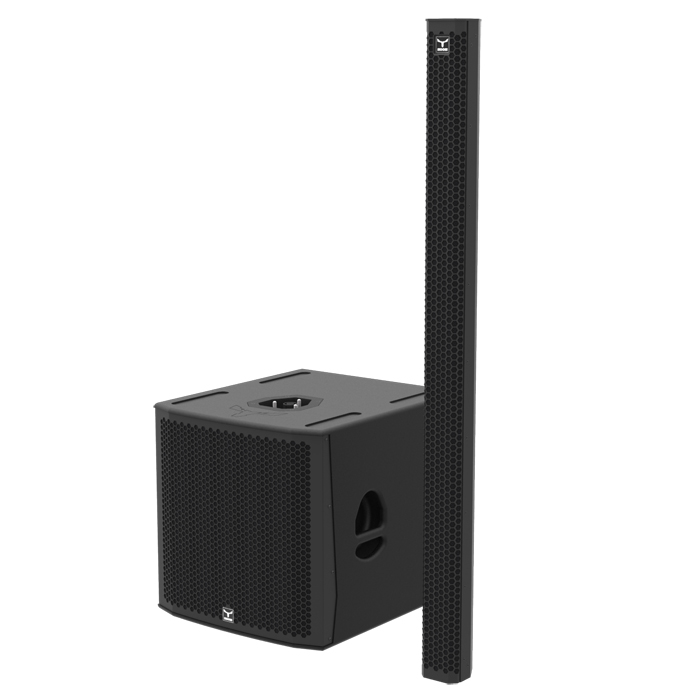

Plug-and-play column fitting Custom multi-pin connector for T803 Height extender available (500mm)

DIMENSIONS (WXDXH)

480x555x480mm / 18.90x21.85x18.90in [LANE15] 107x95x1320mm / 4.21x3.74x51.97in [LANE T803]

WEIGHT

33Kg / 72.8lb [LANE15] 8Kg / 17.6lb [LANE T803]
