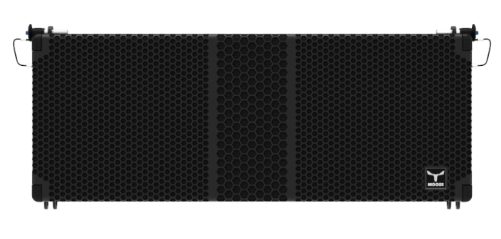

Moose LA 88A Active Line Array 2x8''

Front loaded array element, trapezoidal enclosure

2-way active version

8" (2in VC) MF front loaded + 8" (2in VC) MF horn loaded

2x 1" (1in) HF European transducers

Class D amplifier with integrated DSP

Universal 85-264Vac mains, SMPS

Faithful dynamic response and great range

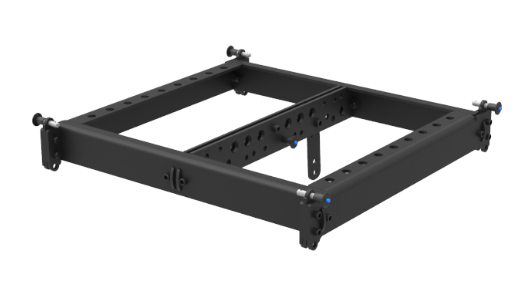

Integrated rigging flyware for stacked and flown configurations

Rugged and durable 15mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE

2-way ACTIVE line array element

ENCLOSURE DESIGN

Trapezoidal array enclosure

POWER OUTPUT (RMS)

500W (RMS) 1000W (Program) 2000W (Peak)

FREQUENCY RANGE

80Hz - 18kHz (-10dB)

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

8" MF (2.0in) EU transducer, front loaded 8" MF (2.0in) EU transducer, horn loaded 2x 1" HF (1.0in) EU transducer

DISPERSION

Horizontal: 100°

Vertical

7°

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

130dB @ 1m

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, status, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

15mm brich plywood, rugged polyurea coating

GRILLE

Custom perforated metal grille with protective foam

INSTALLATION / RIGGING / FLYING

Integrated rigging flyware Splay angle adjustable, 8° (1° increments) Ø9.8mm ball pins w/ stainless steel lanyard with PVC

DIMENSIONS (WXDXH)

640x435x245mm 25.19x17.13x9.65in

WEIGHT

26Kg 57.32lb
