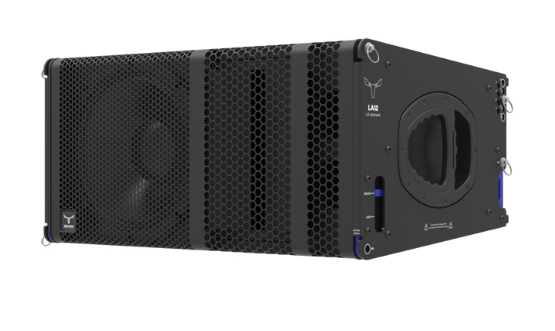

Moose LA 12A Active Line Array 12'' 2 way

LA12A

Key Features

• Front loaded array element
• 2-way active version
• 12" MF (3in VC) + 1.4" HF NEO (2.56in VC) EU transducers
• Class D amplifier with integrated DSP
• Universal 85-264Vac mains supply
• Faithful dynamic response and great range
• Integrated rigging system for stacked and flown configurations
• Rugged and durable 15mm birch plywood construction
• Powder coated custom perforated steel grille

Tech Specs

TYPE

2-way active line array element

ENCLOSURE DESIGN

Trapezoidal array enclosure

POWER OUTPUT (RMS)

650W (RMS) 1300W (Program) 2600W (Peak)

FREQUENCY RANGE

62Hz - 20kHz (-10dB)

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

12" MF (3in) European transducer 1.4" HF NEO (2.56in) European transducer

DISPERSION

Horizontal: 100°

Vertical

7°

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

131dB @ 1m

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous)

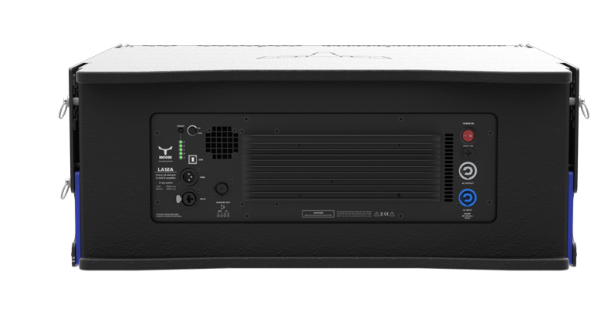

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

15mm brich plywood, rugged polyurea coating

GRILLE

Custom perforated metal grille with protective foam

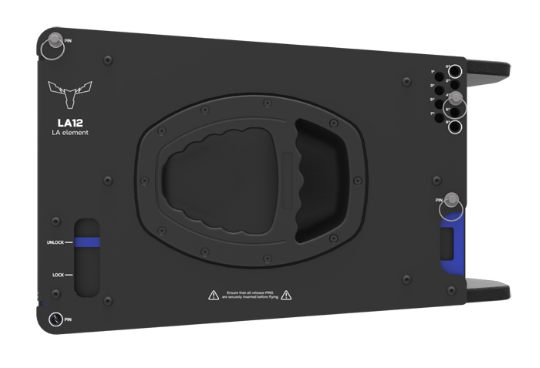

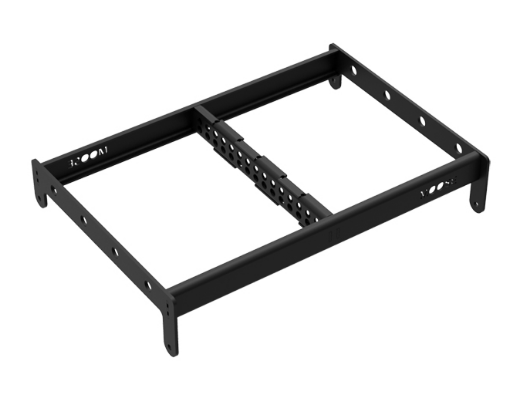

INSTALLATION / RIGGING / FLYING

Integrated rigging flyware Splay angle adjustable, 8° (1° increments) Ø9.8mm ball pins w/ stainless steel lanyard with PVC

DIMENSIONS (WXDXH)

640x505x330mm 25.20x19.88x12.99in

WEIGHT

31Kg 68.34lb
