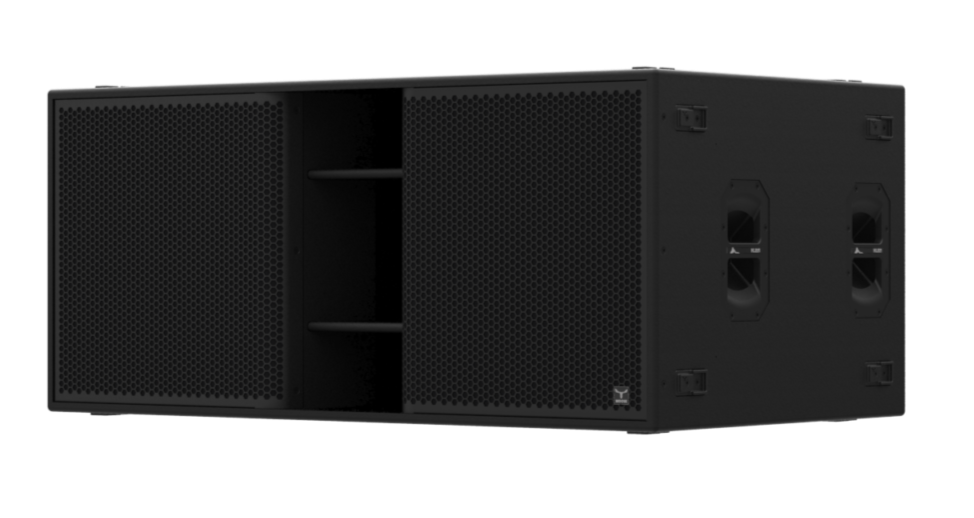

Moose HL221 Passive Subwoofer 2x21"

Dual horn-loaded subwoofer

High power density, high level output

Excellent "punch", extended Low frequency

2x 21” (4.5in VC) Neodymium EU transducer (high excursion)

Extended sub frequency response to 25Hz

2x NLT8MP, LF1 // LF2 or independent LF1 & LF2 (through switch)

18mm baltic birch plywood construction, polyurea coating

Recesses on top to facilitate the stacking

Powder coated custom perforated steel grille

Heavy duty wheel casters on the back (optional)

Tech Specs

TYPE

High-power compact subwoofer

ENCLOSURE DESIGN

Horn-loaded, vented

POWER OUTPUT (RMS)

3600W (AES) 8000W (Program) 14000W (Peak)

FREQUENCY RANGE

25Hz - 110Hz (-3dB)

NOMINAL IMPEDANCE

LF1 // LF2 = 4Ohm LF1 = 8Ohm & LF2 = 8Ohm

TRANSDUCER TYPE

2x 21" (4.5in VC) Neodymium LF EU transducer

CROSSOVER FREQUENCY

24Hz Butterworth 24dB

MAX. SPL (PEAK)

146dB @ 1m

INPUT SENSITIVITY

108dB

CONNECTOR

2x NLT8MP, LF1 & LF2 parallel-connected Independent LF1 & LF2 (through toggle switch)

CONSTRUCTION

18mm birch plywood with rugged polyurea coating

GRILLE

Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING

12 custom rugged feet, 2 side handles 4 rubber feet to protect the back panel 16x M6 inserts for wheels (back panel)

DIMENSIONS (WXDXH)

1380x800x600mm 54.33x31.50x23.62in

WEIGHT

105Kg 231.48
