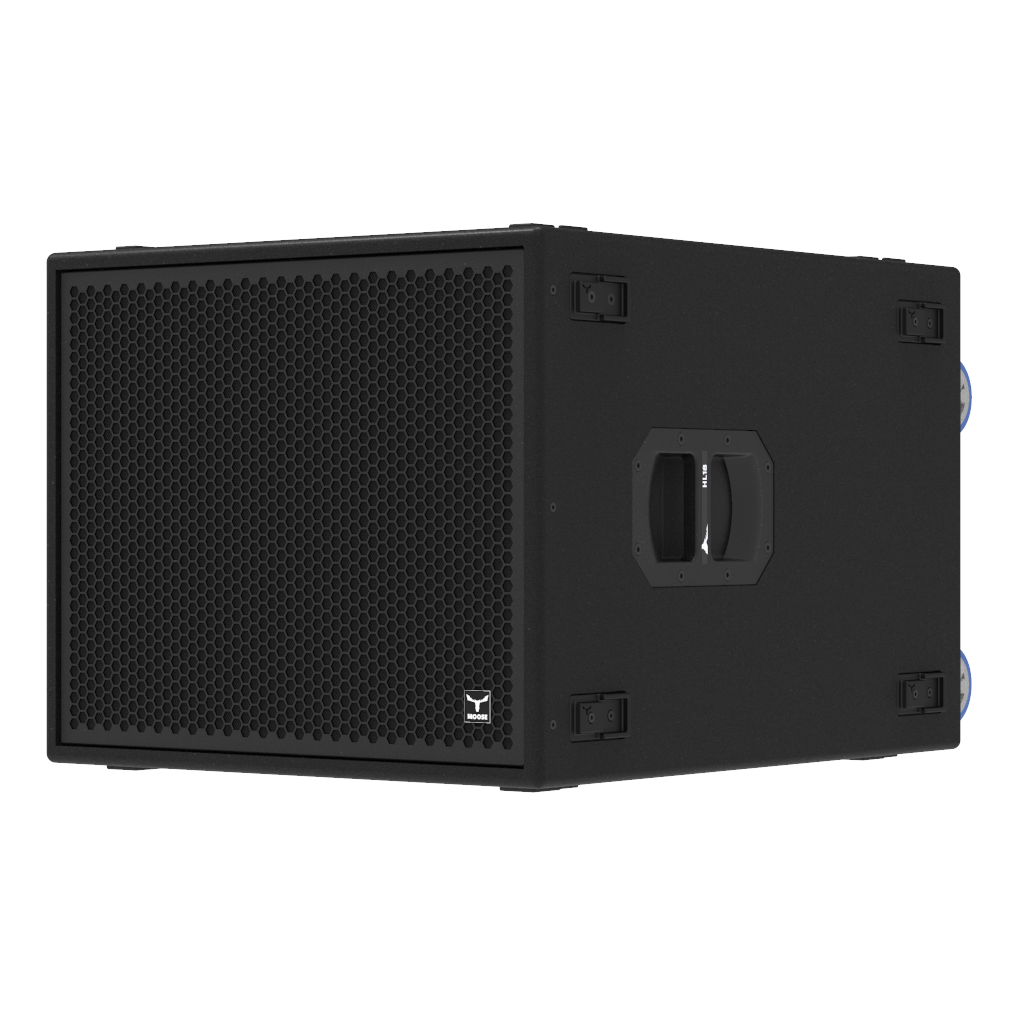

Moose HL18 Passive Subwoofer 18"

Single horn-loaded subwoofer

High power density, high level output

Excellent "punch", extended Low frequency

18” (4in VC) Neodymium EU transducer (high excursion)

Extended sub frequency response to 30 Hz

2x NL4 parallel-connected

18mm baltic birch plywood construction, polyurea coating

Recesses on top to facilitate the stacking

Powder coated custom perforated steel grille

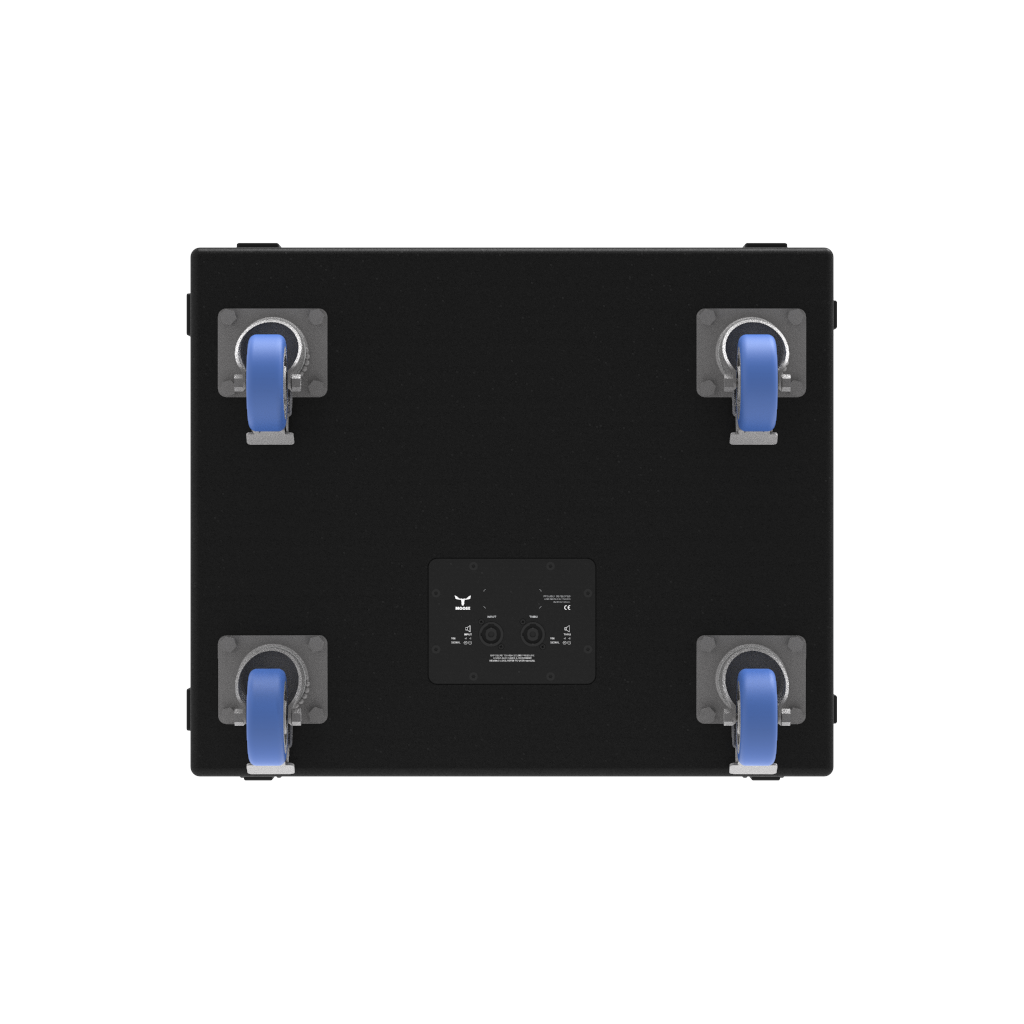

Heavy duty wheel casters on the back (optional)

Tech Specs

TYPE

Compact PASSIVE subwoofer

ENCLOSURE DESIGN

Horn-loaded

POWER OUTPUT (RMS)

1200W (AES) 2400W (Program) 7000W (Peak)

FREQUENCY RANGE

34Hz - 190Hz (-6dB)

NOMINAL IMPEDANCE

8Ohm

TRANSDUCER TYPE

18" (4in VC) Neodymium LF EU transducer

MAX. SPL (PEAK)

135dB @ 1m (continuous) 143dB @ 1m (peak)

CONNECTOR

2x NL4 in parallel-connected

CONSTRUCTION

18mm birch plywood with polyurea coating

GRILLE

Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet, 1 side handle Ø35mm pole mount socket Prepared for stacking

DIMENSIONS (WXDXH)

620x750x515mm 24.41x29.53x20.28in

WEIGHT

44Kg 97.00lb
