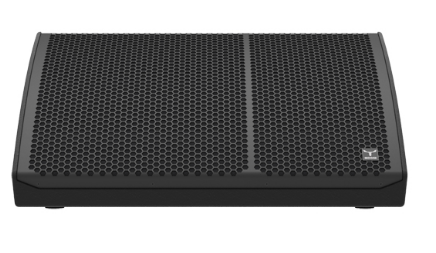

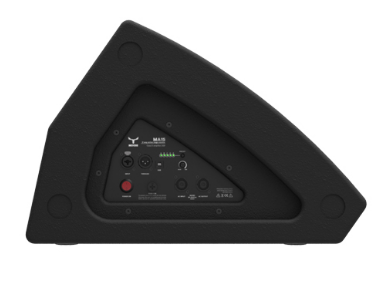

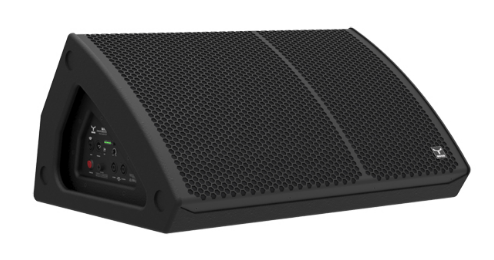

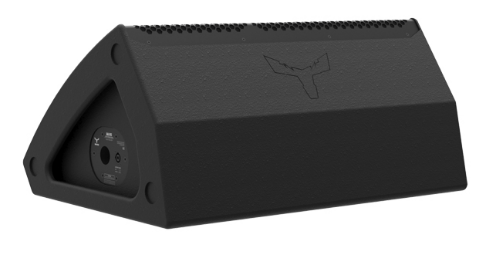

Moose Groove MA15 Active Stage Monitor 15''

Key Features

• Multipurpose wedged stage monitor
• Passive and active versions available
• 15" (2.5in VC) MF + 1" (1.73in VC) HF EU transducers
• User-rotatable CD horn 90°x60° for ideal dispersion
• Driven by a Class D, 2 channel amplifier
• NL4 output to drive a passive monitor
• Pole mount socket for stand support
• Elegant looking professional enclosure
• Rugged and durable 15mm birch plywood

Tech Specs

TYPE

2-Way active monitor

ENCLOSURE DESIGN

Wedged cabinet - bass reflex

POWER OUTPUT (RMS)

410W (RMS) 560W (Program) 1100W (Peak)

FREQUENCY RANGE

50Hz - 19kHz

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

15" MF (2.5in VC) EU transducer 1" HF (1.73in VC) EU transducer

DISPERSION

CD horn, 90°x60° and 60°x90° User-rotatable

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

129dB @ 1m

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous) 1500W (peak)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

15mm birch plywood, textured polyurea coating

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet Ø35mm pole mount

DIMENSIONS (WXDXH)

750x540x360mm 29.53x21.26x14.17in

WEIGHT

28Kg 61.73lb
