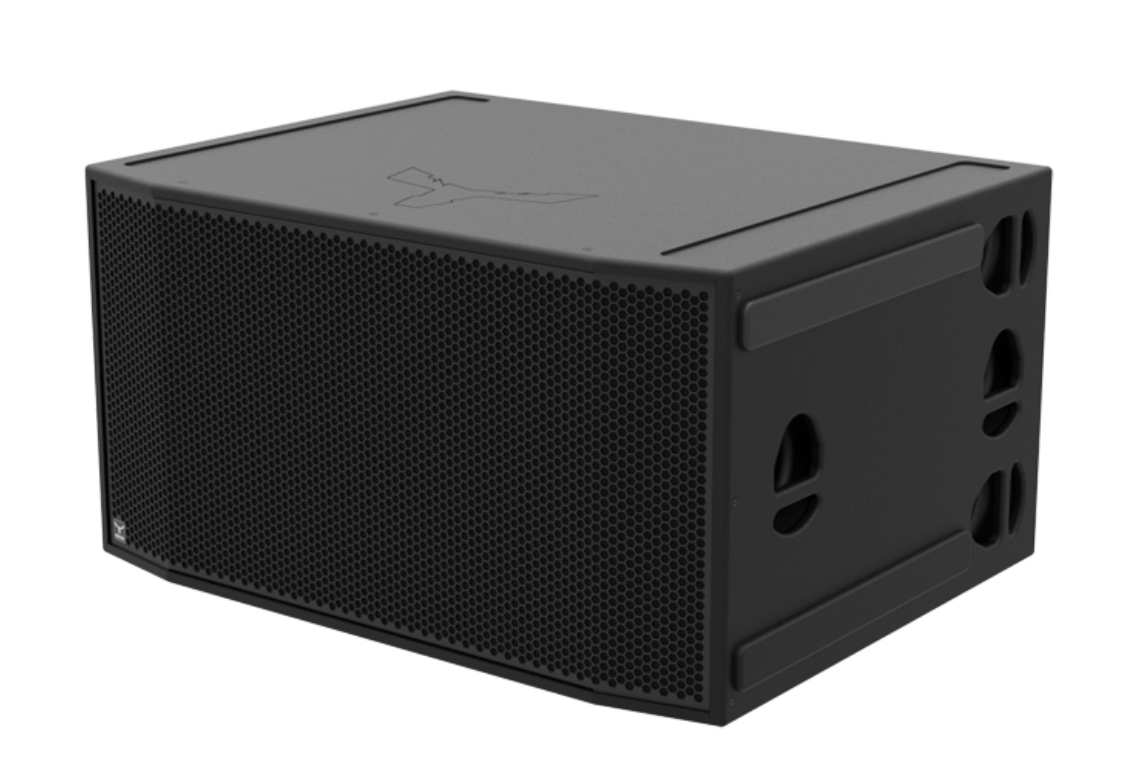

Moose G218A Active Line Array Sub 2x18''

Bass reflex ACTIVE subwoofer

2x 18" LF (4in VC) European transducer

Optimized for high SPL output

3200W class D, single channel amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP, 4 selectable presets

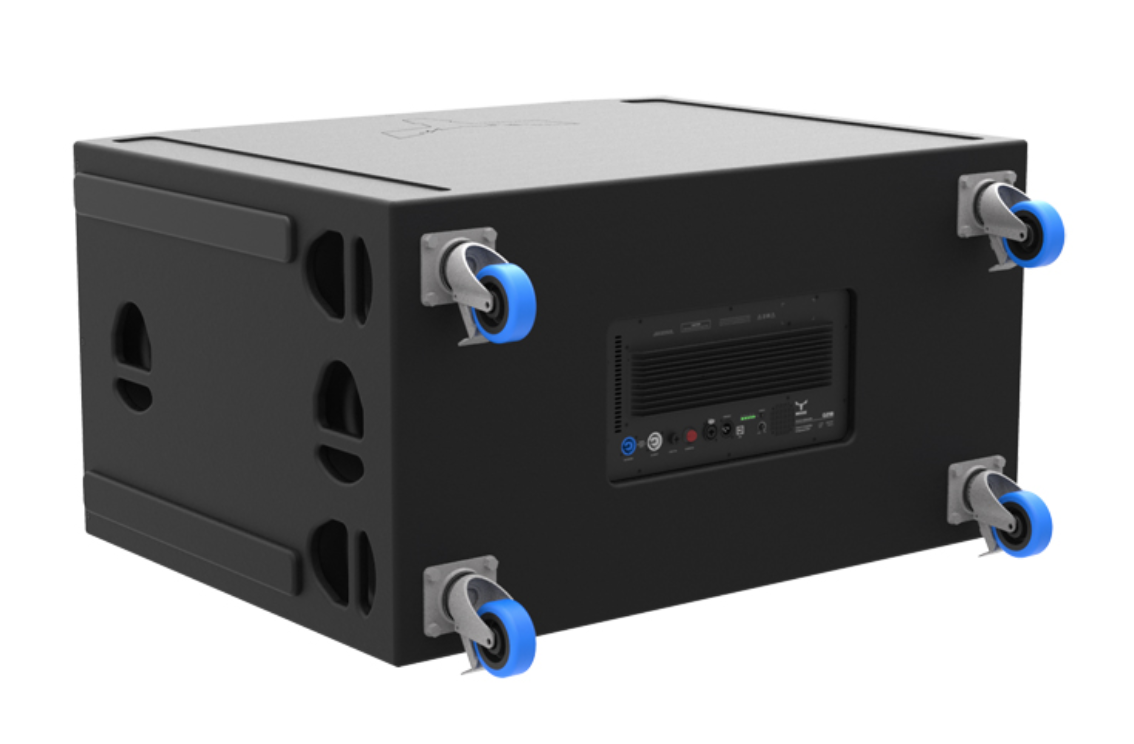

Heavy duty wheel casters on the back (optional)

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Product Sheet

Interested in this Product? Contact us!

Tech Specs

TYPE

Compact ACTIVE subwoofer

ENCLOSURE DESIGN

Bass reflex

POWER OUTPUT (RMS)

2400W (AES) 4800W (Program) 9600W (Peak)

FREQUENCY RANGE

27Hz - 180Hz (-10dB)

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

2x 18" (4in VC) LF EU transducer

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

140dB @ 1m

AMPLIFIER TYPE

Class D, single channel amplifier

AMPLIFIER OUTPUT

3200W (continuous)

INPUT

XLR/Jack combo connector

OUTPUT

XLR/M 3p connector

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

18mm birch plywood, textured polyurea coating

GRILLE

Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet, 4 side handles 4 swivel castors (optional) Prepared for stacking

DIMENSIONS (WXDXH)

1070x830x580mm 42.13x32.68x22.83in

WEIGHT

96Kg 211.64lb
