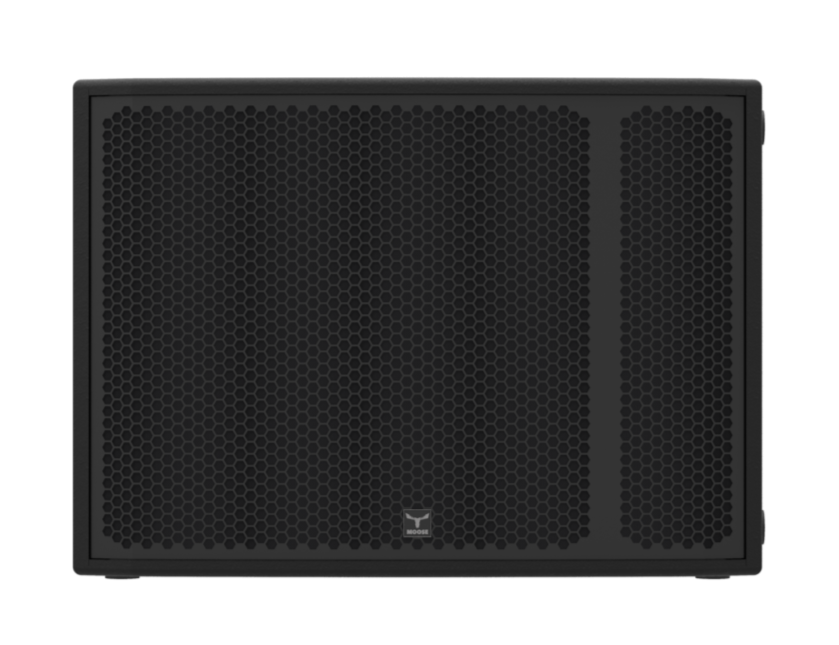

Moose G18A Active Subwoofer 18"

Bass reflex ACTIVE subwoofer

1x 18" (4in VC) LF European transducer

Versatile, compact and coherent subwoofer

2000W class D, single channel amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP (4 presets)

Prepared for stacking and pole mount usage

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE

Compact ACTIVE subwoofer

ENCLOSURE DESIGN

Bass reflex

POWER OUTPUT (RMS)

1200W (AES) 2400W (Program) 4800W (Peak)

FREQUENCY RANGE

27Hz - 200Hz (-10dB)

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

1x 18" LF (4in VC) EU transducer

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

135dB @ 1m

AMPLIFIER TYPE

Class D, single channel amplifier

AMPLIFIER OUTPUT

2000W (continuous)

INPUT

XLR/Jack combo connector

OUTPUT

XLR/M 3p connector

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

18mm birch plywood, textured polyurea coating

GRILLE

Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet, 2 side handles Ø35mm pole mount socket Prepared for stacking

DIMENSIONS (WXDXH)

750x710x540mm 29.53x27.95x21.26in

AC MAINS CONNECTOR

59Kg 130.07lb
