G1888A 18'' Aktif subwoofer DSP 3200W amplifikatör 135dB — görsel 1

Moose Sound

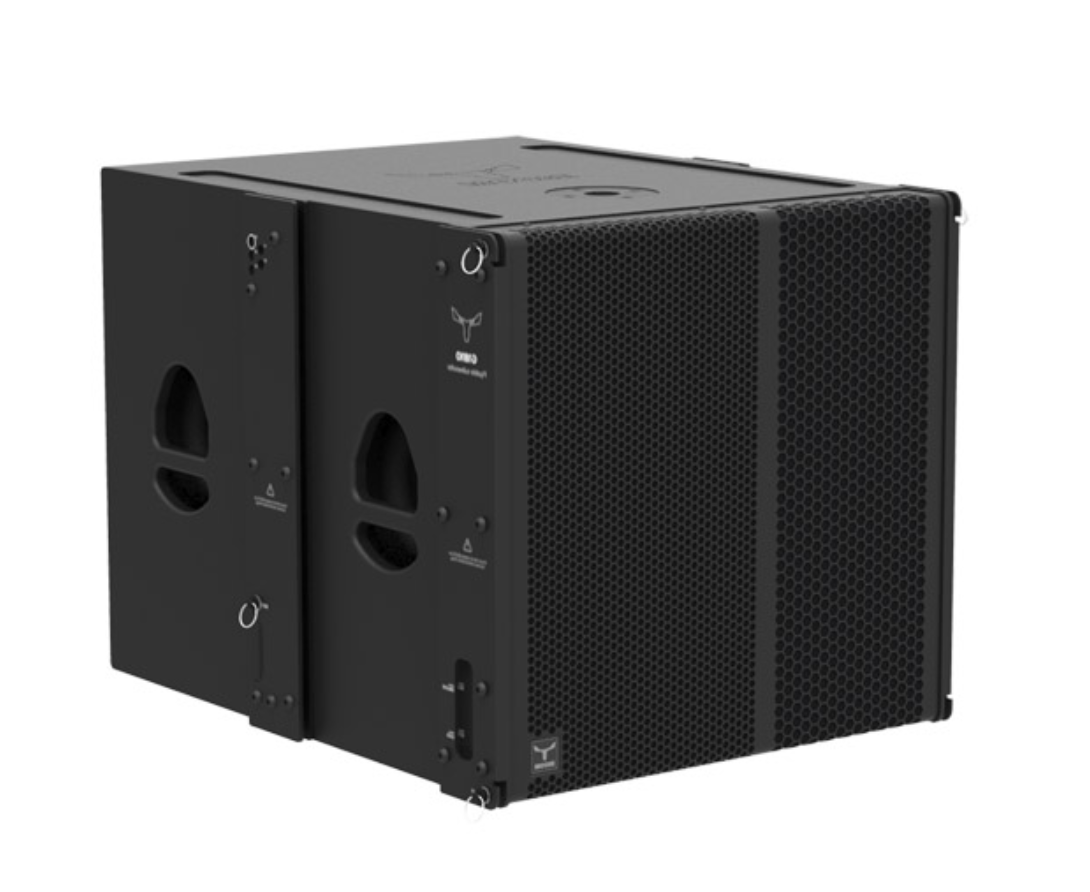

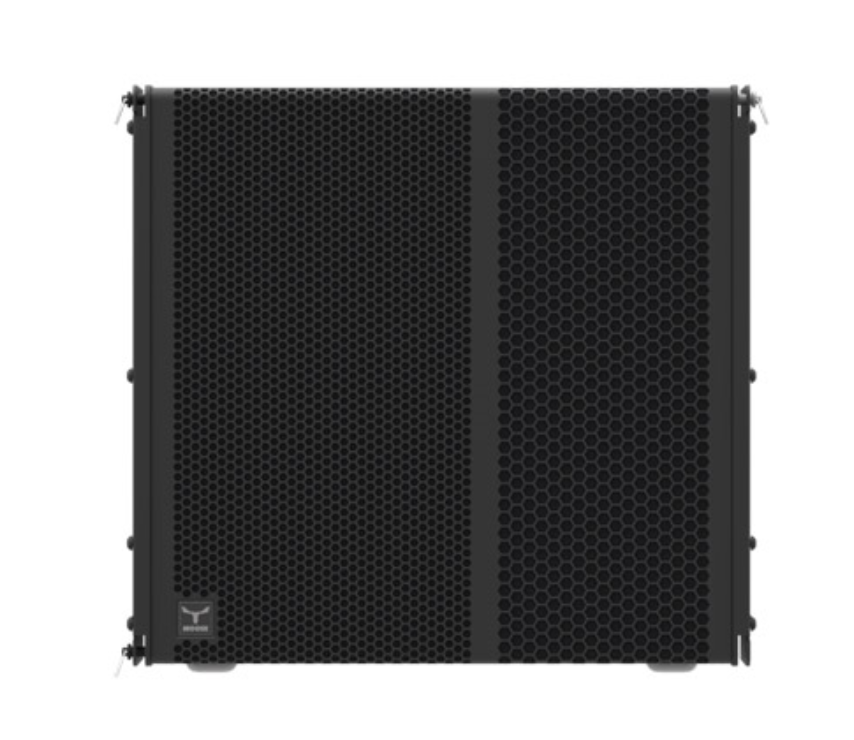

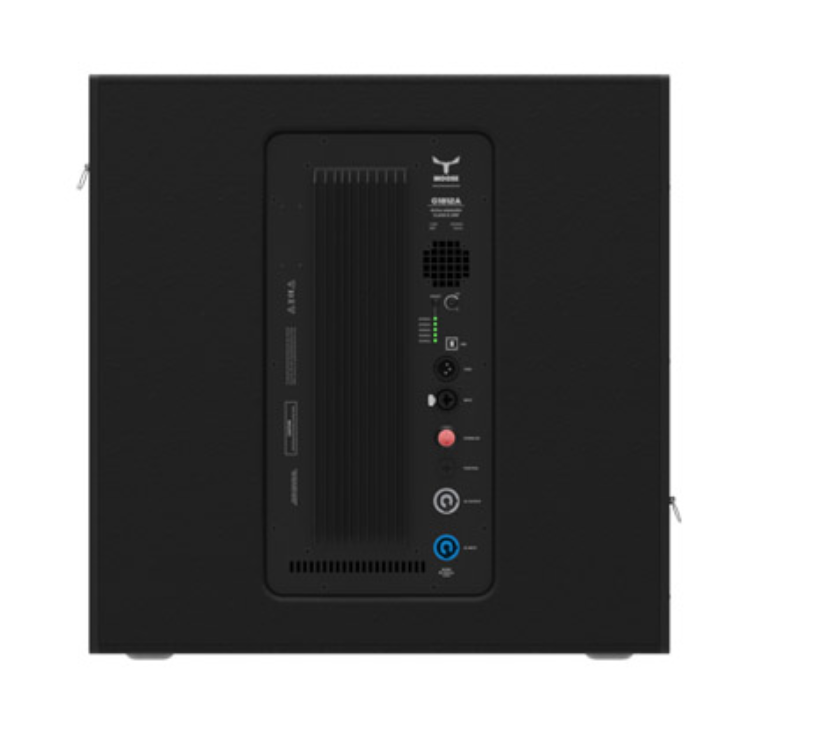

G1888A 18'' Aktif subwoofer DSP 3200W amplifikatör 135dB

Ses SistemleriSubwooferlarKod: G1888A

Fiyat için iletişime geçiniz

WhatsApp’tan Bilgi Al
Adet
Listeyi aç

G1888A 18'' Aktif subwoofer DSP 3200W amplifikatör 135dB

Ürün açıklaması

G188A-18128A-1821A for LA28A-LA88A-LA21A fly sub

Key Features

  • Bass reflex & flyable ACTIVE subwoofer
  • Suited for 10'' line array speaker - LA10
  • 1x 18'' (4in) LF European transducer, 1200W AES
  • Versatile, compact and coherent subwoofer
  • 3200W / 4ohm class D amplifier
  • 85-264Vac universal mains, all electronic protections
  • Fully programmable built-in DSP (Analog devices)
  • Prepared for stacking and flying operation
  • Rugged and durable 18mm birch plywood construction
  • Powder coated custom perforated steel grille

Tech Specs

TYPE
Flyable & compact ACTIVE subwoofer
ENCLOSURE DESIGN
Bass reflex
POWER OUTPUT (RMS)
1200W (AES) 2400W (Program) 4800W (Peak)
FREQUENCY RANGE
32Hz - 200Hz
NOMINAL IMPEDANCE
N/A
TRANSDUCER TYPE
1x 18'' LF (4in VC) EU transducer
CROSSOVER FREQUENCY
DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter
MAX. SPL (PEAK)
135dB @ 1m
AMPLIFIER TYPE
Class D, single channel amplifier
AMPLIFIER OUTPUT
3200W / 8ohm (continuous)
INPUT
XLR/Jack combo connector
OUTPUT
XLR/M 3p connector
INDICATORS
Power, signal/preset, clip
CONTROLS
Master level control, 4 selectable presets
FEATURE
Cooling by convection
AC POWER SUPPLY
Switching power supply, 85-264Vac
AC MAINS CONNECTOR
Neutrik® powerCON, Power-in (blue) / Power-out (grey)
PROTECTION
Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)
CONSTRUCTION
18mm birch plywood with textured polyurea coating
GRILLE
Custom perforated metal grille w/ acoustic foam
INSTALLATION / RIGGING / FLYING
Integrated rigging flyware 2 wood feet, 2 recessed side handles Ø9.8mm ball pins w/ stainless steel lanyard with PVC Prepared for castors
DIMENSIONS (WXDXH)
640x650x520mm 25.20x25.59x21.26in
WEIGHT
56Kg 123.46lb
