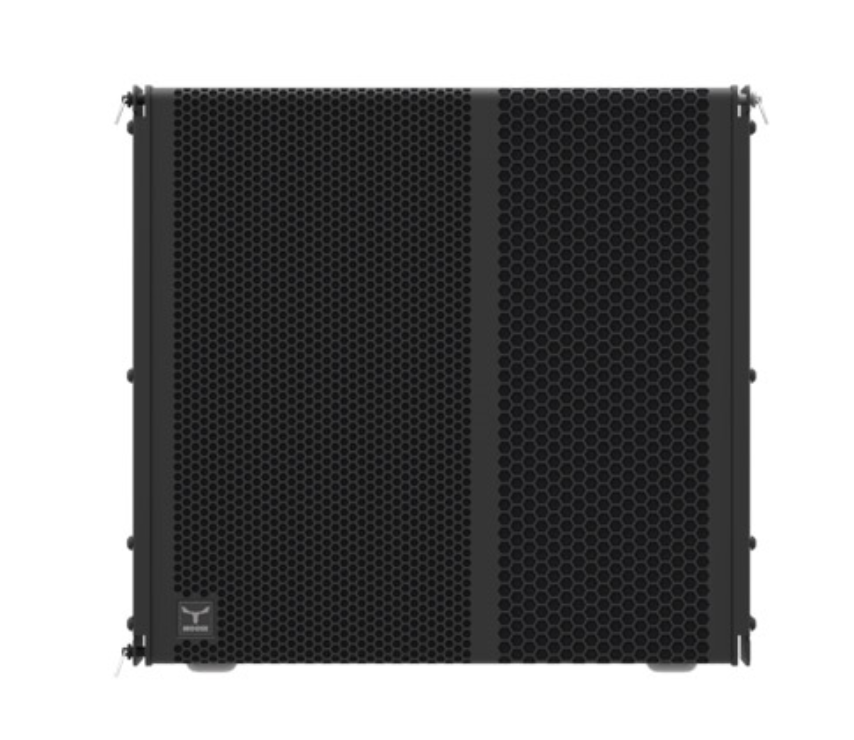

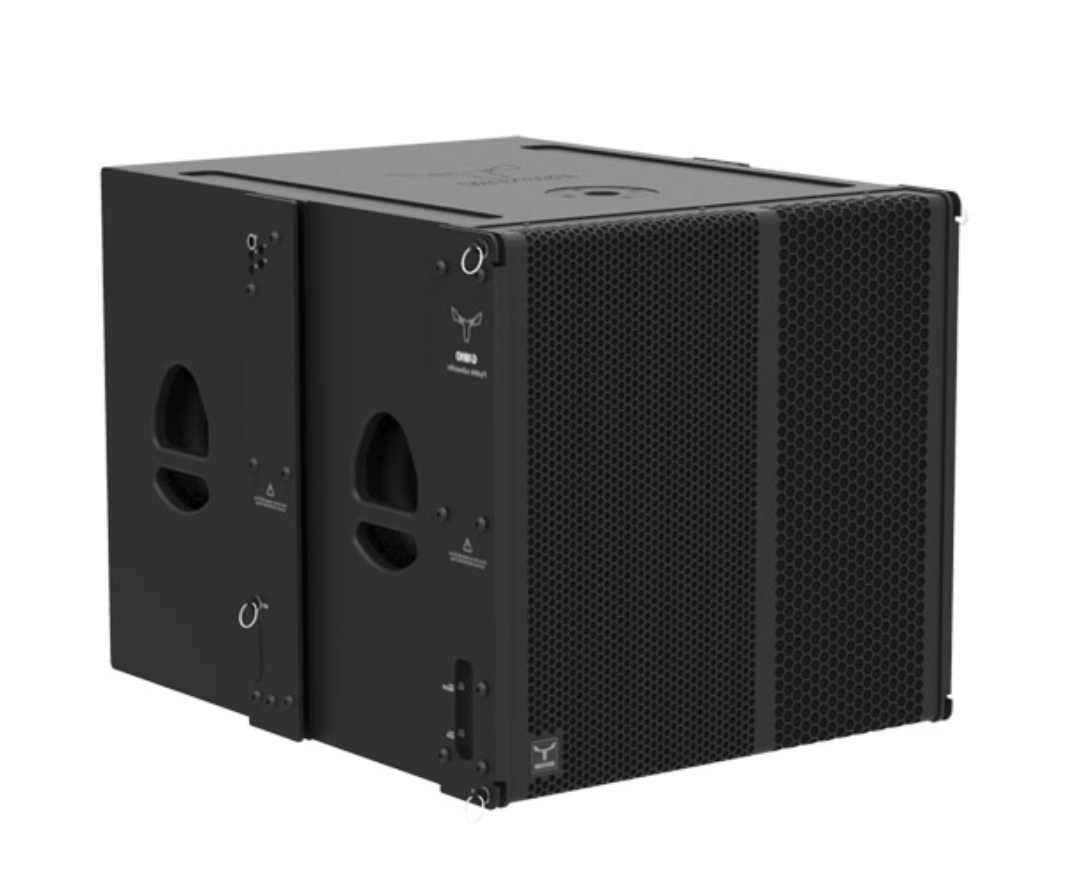

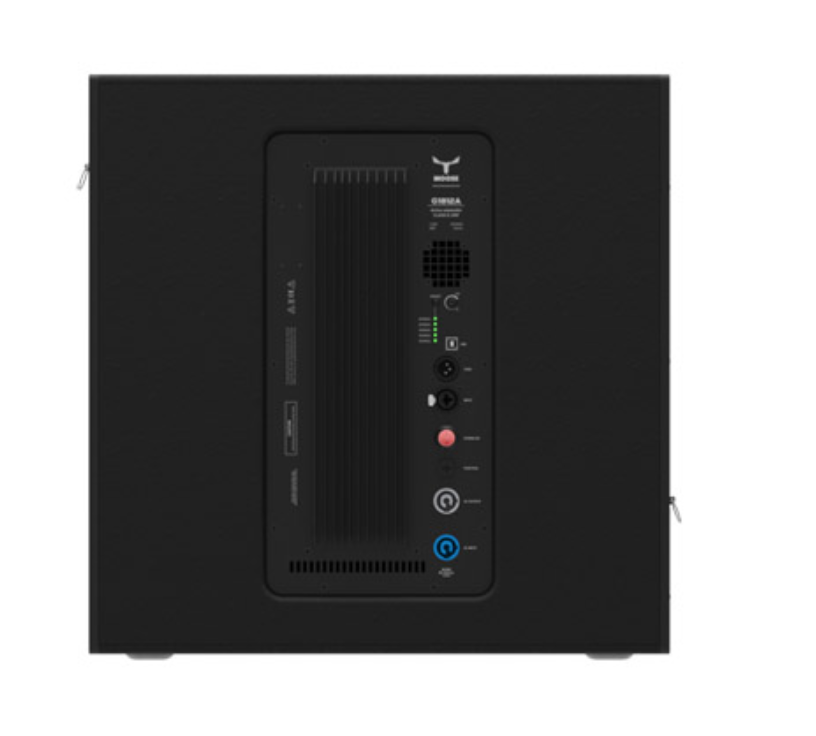

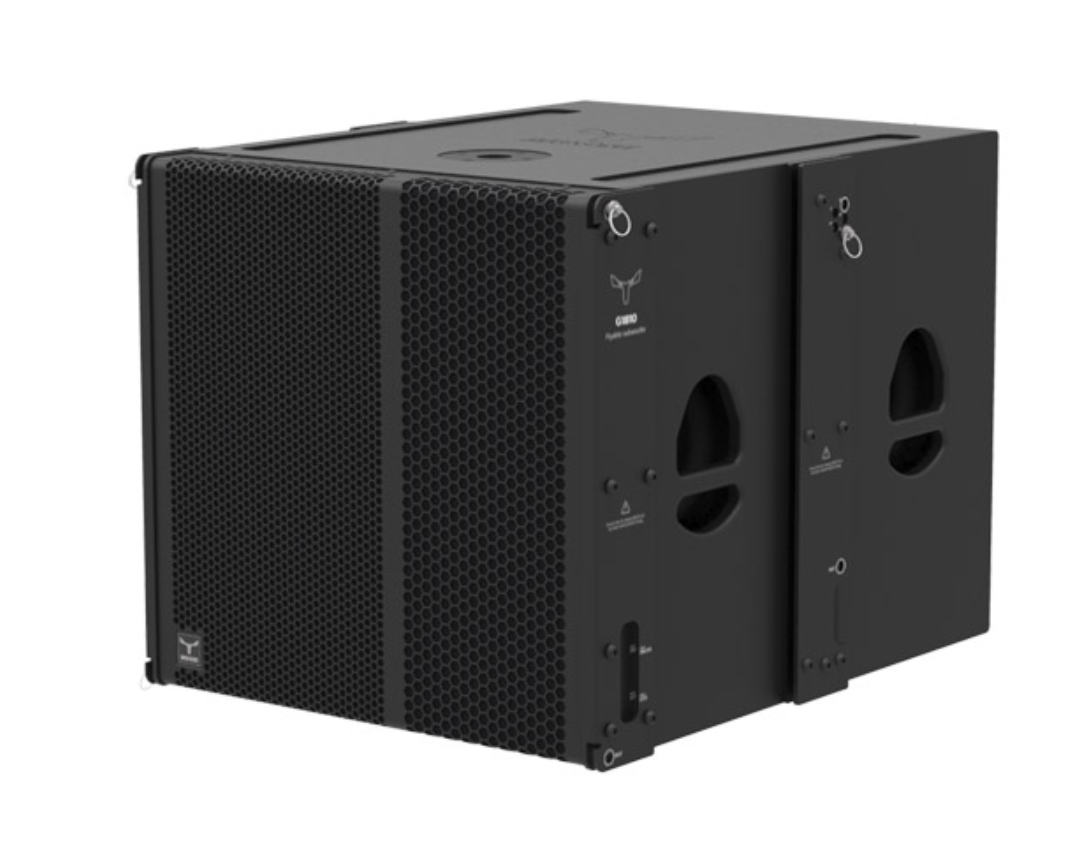

Moose G1810A Active Line Array Fly Sub 18''

G1810A

Key Features

• Bass reflex & flyable ACTIVE subwoofer
• Suited for 10" line array speaker - LA10
• 1x 18" (4in VC) LF EU transducer, 1200W AES
• Versatile, compact and coherent subwoofer
• 3200W / 8ohm class D amplifier
• 85-264Vac universal mains, all electronic protections
• Fully programmable built-in DSP with selectable presets
• Prepared for stacking and flying operation
• Rugged and durable 18mm birch plywood construction
• Powder coated custom perforated steel grille

Tech Specs

TYPE

Flyable & Compact ACTIVE subwoofer

ENCLOSURE DESIGN

Bass reflex

POWER OUTPUT (RMS)

1200W (AES) 2400W (Program) 4800W (Peak)

FREQUENCY RANGE

32Hz - 200Hz

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

1x 18" LF (4in VC) EU transducer

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

135dB @ 1m

AMPLIFIER TYPE

Class D, single channel amplifier

AMPLIFIER OUTPUT

3200W / 8ohm (continuous)

INPUT

XLR/Jack combo connector

OUTPUT

XLR/M 3p connector

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

18mm birch plywood with textured polyurea coating

GRILLE

Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING

Integrated rigging flyware 2 wood feet, 2 recessed side handles Ø9.8mm ball pins w/ stainless steel lanyard with PVC Prepared for castors

DIMENSIONS (WXDXH)

540x740x520mm 21.26x29.13x20.47in

AC MAINS CONNECTOR

56Kg 123.46lb
